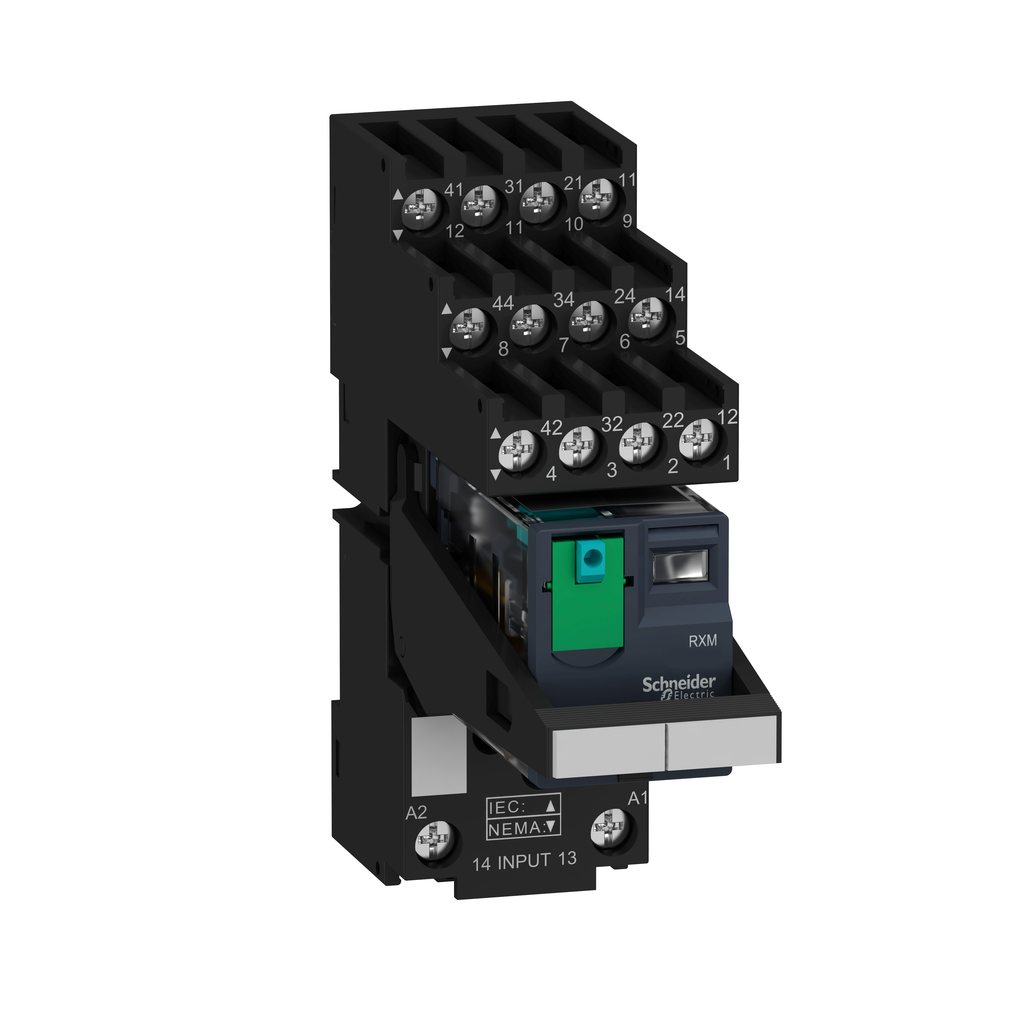

miniature, Harmony Electromechanical Relays, 6A, 4CO, with LED, with lockable test button, separate terminals socket, 24V DC
This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 6A, 24Vdc, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector type. This pre-assembled relay weighs 0.113Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Dielectric Strength |
|
| Vibration Resistance |
|
| Shock Resistance |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Warranty | 18 Months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2106019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2106019EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Maximum Switching Capacity | 1500 VA/168 W AC/DC |
| Safety Reliability Data | B10d = 100000 |
| Continuous Output Current | 5 A |
| Operating Rate |
|
| Torque Value | 1 N.m |
| Protection Category | RT I |
| Test Levels | level A group mounting |
| Contacts Material | AgNi |
| Reset Time | 20 ms |
| Net Weight | 0.105 kg |
| Cad Overall Height | 82.8 mm |
| Maximum Switching Voltage | 250 V |
| Average Resistance | 650 Ohm 20 °C +/- 10 % |
| Device Presentation | complete product |
| Connections - Terminals |
|
| Average Coil Consumption | 0.9 W, DC |
| Rated Operational Voltage Limits | 19.2...26.4 V DC |
| [Ie] Rated Operational Current |
|
| Sale Per Indivisible Quantity | 30 |
| [Ui] Rated Insulation Voltage | 250 V IEC |
| Minimum Switching Current | 10 mA |
| Electrical Durability | 100000 cycles resistive |
| Mechanical Durability | 10000000 cycles |
| Operating Position | any position |
| Operating Time | 20 ms |
| Load Current |
|
| Drop-Out Voltage Threshold | >= 0.1 Uc DC |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV 1.2/50 µs |
| Cad Overall Width | 26.9 mm |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Cad Overall Depth | 80.35 mm |
| Country of Origin | Indonesia |
| Width | 26.9 mm |
| Height | 82.8 mm |
| Weight | 0.105 kg |
| Utilisation Coefficient | 20 % |
| [Uc] Control Circuit Voltage | 24 V DC |
| Range Of Product | Harmony Electromechanical Relays |
| Product Or Component Type | pre-assembled plug-in relay with socket |
| Status Led | with |
| Control Type | lockable test button |
| Series Name | Miniature |
| Contacts Type And Composition | 4 C/O |
| Device Short Name | RXM |
