miniature plug in relay, Harmony Electromechanical Relays, 5A, 2CO, without LED, 120V AC

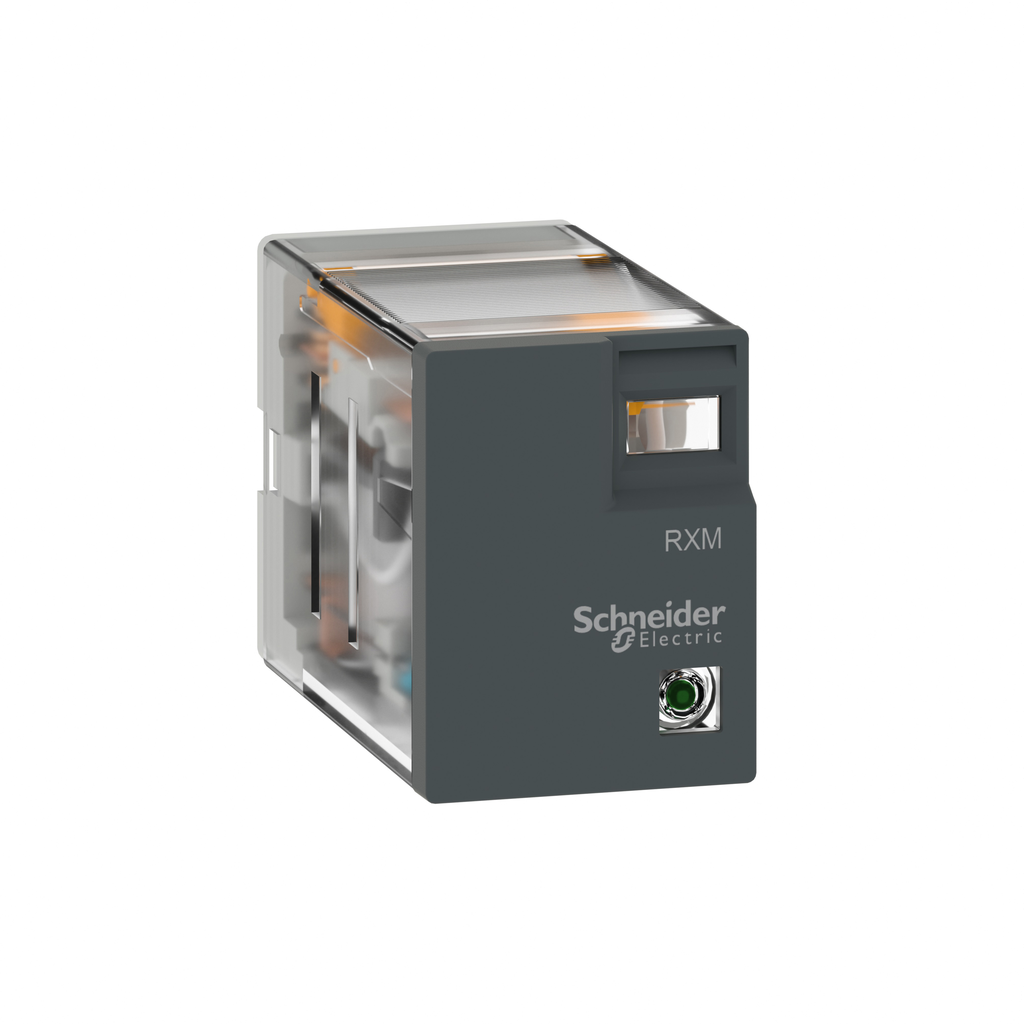

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 5A, control circuit voltage of 120 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE. RXM relay need to be used with a RXZE socket RXZE1M2C. To protect against vibrations, metal clamp RXZ410/RXZ420 can be added to the socket. It is sold in lots of 10 and reference includes relay only. The RXMLB plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (5A), 4 CO (3A) contacts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Vibration Resistance |
|
| Shock Resistance |
|
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2108011EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2108011EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Utilisation Coefficient | 20 % |
| Maximum Switching Capacity |
|
| Safety Reliability Data | B10d = 100000 |
| Minimum Switching Current | 5 mA subject to switching frequency, environment or expected reliability level etc |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Operating Rate |
|
| Protection Category | RT I |
| Test Levels | level A group mounting |
| Contacts Material | silver alloy (Ag/Ni) |
| Pollution Degree | 3 |
| Dielectric Strength |
|
| Status Led | without |
| Net Weight | 0.031 kg |
| Minimum Switching Voltage | 5 V subject to switching frequency, environment or expected reliability level etc |
| Cad Overall Height | 27 mm |
| Maximum Switching Voltage |
|
| Control Type | without push-button |
| Average Resistance | 4430 Ohm at 23 °C +/- 10 % |
| Rated Operational Voltage Limits | 96...132 V AC |
| [Ie] Rated Operational Current |
|
| Sale Per Indivisible Quantity | 10 |
| [Ui] Rated Insulation Voltage | 250 V IEC |
| Contact Operation | standard |
| Electrical Durability |
|
| Mechanical Durability | 10000000 cycles |
| Operating Position | any position |
| Operating Time |
|
| Load Current |
|
| Drop-Out Voltage Threshold | >= 0.15 Uc AC |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50 µs IEC 61810-7 |
| Cad Overall Width | 21 mm |
| Cad Overall Depth | 46 mm |
| Minimum Switching Capacity | 25 mW subject to switching frequency, environment or expected reliability level etc |
| Average Coil Consumption In Va | 1.2-1.2 AC |
| Country of Origin | France |
| Width | 21 mm |
| Height | 27 mm |
| Weight | 0.031 kg |
| Range Of Product | Harmony Electromechanical Relays |
| Product Or Component Type | plug-in relay |
| Series Name | Miniature |
| Contacts Type And Composition | 2 C/O |
| Coil Interference Suppression | without |
| Device Short Name | RXM |
| [Ithe] Conventional Enclosed Thermal Current | 5 A -40-55 °C |
