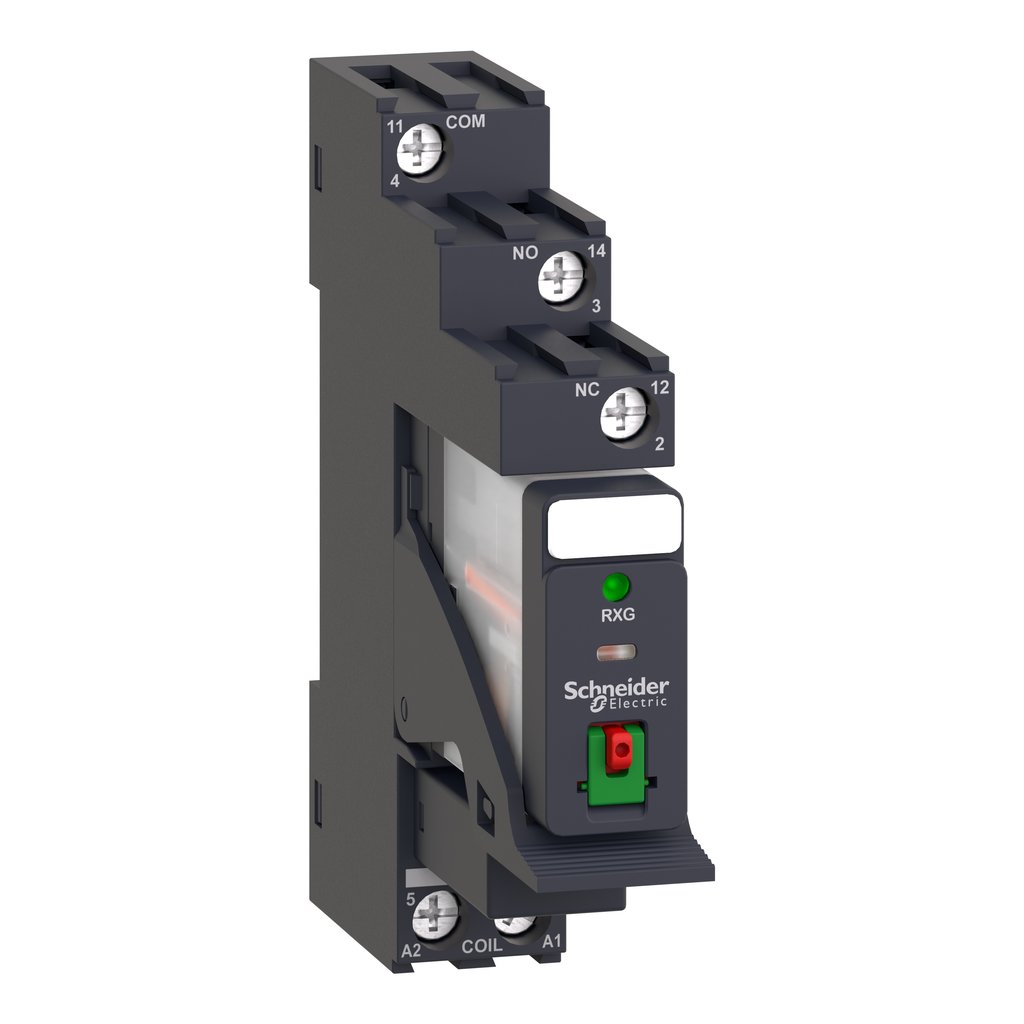

interface plug in relay, Harmony Electromechanical Relays, pre assembled, 10A, 1CO, with LED, lockable test but to n, 230V AC
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 10A, 230Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Vibration Resistance |
|
| Relative Humidity | 10-85 % |
| Ambient Air Temperature For Storage | -40-85 °C |
| Ip Degree Of Protection | IP20 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406006EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Utilisation Coefficient | 20 % |
| Maximum Switching Capacity |
|
| Safety Reliability Data | B10d = 100000 |
| [Uc] Control Circuit Voltage | 230 V AC 50/60 Hz |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Operating Rate |
|
| Torque Value |
|
| Protection Category | RT I |
| Test Levels | level A group mounting |
| Contacts Material | silver alloy (AgSnO2In2O3) |
| Pollution Degree | 2 |
| Reset Time | 20 ms |
| Shock Resistance |
|
| Dielectric Strength |
|
| Status Led | with |
| Net Weight | 0.058 kg |
| Colour Of Cover | transparent |
| Maximum Switching Voltage | 250 V |
| Control Type | lockable test button |
| Device Presentation | complete product |
| Electrical Insulation Class | class F |
| Connections - Terminals |
|
| Average Coil Consumption | 0.96 VA AC 50-60 Hz |
| [Ie] Rated Operational Current |
|
| [Ui] Rated Insulation Voltage | 250 V IEC |
| Electrical Durability | 100000 cycles resistive |
| Mechanical Durability | 10000000 cycles |
| Resistance | 23500 Ohm +/- 15 % |
| Mounting Position | any position |
| Overvoltage Category | III |
| Load Current | 10 A |
| Drop-Out Voltage Threshold | >= 0.3 Uc AC |
| Minimum Switching Capacity | 500 mW at 100 mA, 5 V DC |
| Operating Time | 20 ms |
| Contact Resistance | 100 mOhm |
| Country of Origin | China |
| Weight | 0.058 kg |
| Range Of Product | Harmony Electromechanical Relays |
| Product Or Component Type | pre-assembled plug-in relay with socket |
| Series Name | interface relay |
| Contacts Type And Composition | 1 C/O |
| Device Short Name | RXG |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
