RXG12B7 - interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 24V AC

RXG12B7

interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 24V AC

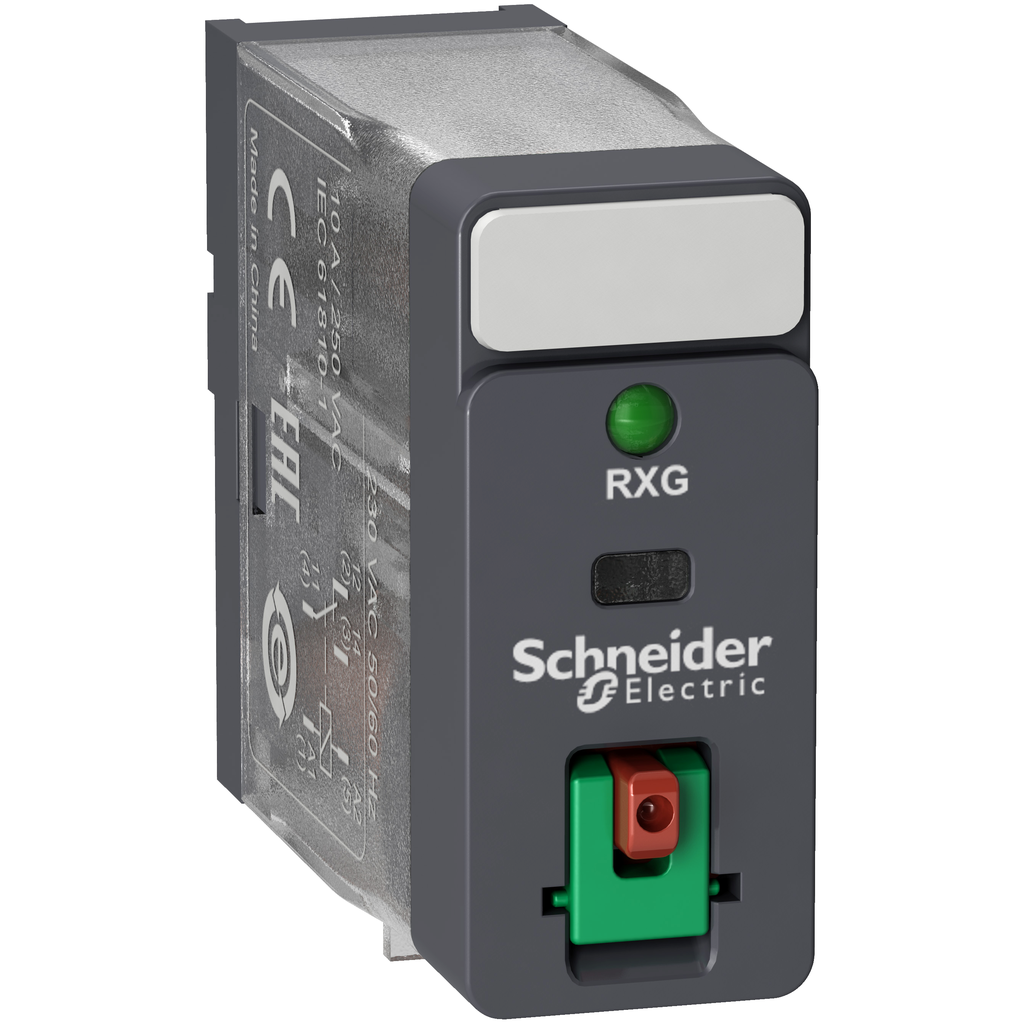

"This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	EAC CSA UL CE DNV-GL
Ambient Air Temperature For Operation	-40-70 °C
Standards	IEC 61810-1 CSA C22.2 No 14 UL 508
Vibration Resistance	3 gn +/- 0.75 mm 10-150 Hz)in operation 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Relative Humidity	10-85 %
Ambient Air Temperature For Storage	-40-85 °C
Ip Degree Of Protection	IP40
Utilisation Coefficient	20 %
Maximum Switching Capacity	2500 VA
Safety Reliability Data	B10d = 100000
[Uc] Control Circuit Voltage	24 V AC 50/60 Hz
Average Consumption	0.82 VA 60 Hz
Insulation Resistance	1000 MOhm at 500 V DC
Operating Rate	<= 1800 cycles/hour under load <= 18000 cycles/hour no-load
Torque Value	0.8 N.m
Protection Category	RT I
Test Levels	level A group mounting
Contacts Material	silver alloy (AgSnO2In2O3)
Pollution Degree	2
Reset Time	20 ms
Shock Resistance	20 gn in operation 100 gn not in operation
Dielectric Strength	1000 V AC between contacts with micro disconnection 5000 V AC between coil and contact with reinforced insulation
Status Led	with
Net Weight	0.02 kg
Colour Of Cover	standard
Maximum Switching Voltage	250 V AC 30 V DC
Control Type	lockable test button
Device Presentation	complete product
Electrical Insulation Class	class F
[Ie] Rated Operational Current	10 A 30 V DC) UL 10 A 30 V DC) IEC 10 A 250 V AC) IEC 10 A 250 V AC) UL
[Ui] Rated Insulation Voltage	250 V IEC 300 V CSA 300 V UL
Electrical Durability	100000 cycles NO resistive at 55 °C 100000 cycles NC resistive at 55 °C
Mechanical Durability	10000000 cycles
Resistance	260 Ohm +/- 10 %
Control Circuit Voltage Limits	0.8...1.1 Uc AC
Mounting Position	any position
Overvoltage Category	III
Load Current	10 A 250 V AC
Drop-Out Voltage Threshold	>= 0.3 Uc AC
Minimum Switching Capacity	500 mW at 100 mA, 5 V DC
Operating Time	20 ms
Contact Resistance	100 mOhm
Country of Origin	China
Weight	0.02 kg
Range Of Product	Harmony Electromechanical Relays
Product Or Component Type	plug-in relay
Series Name	interface relay
Contacts Type And Composition	1 C/O
Local Signalling	flag
Device Short Name	RXG
[Ithe] Conventional Enclosed Thermal Current	10 A -40-55 °C
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1406006EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
