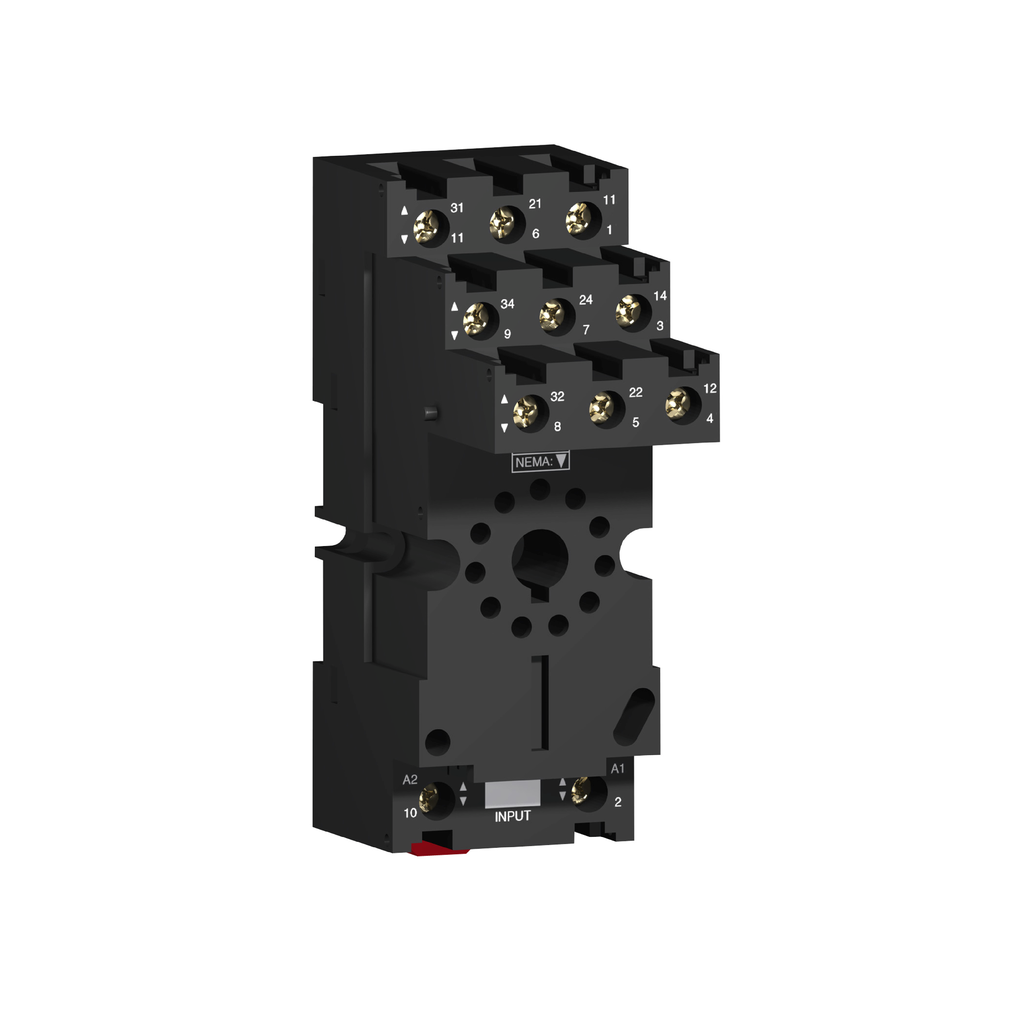

RUZSC3M - socket, Harmony Electromechanical Relays, for RUMC3 relays, 12A, screw connec to rs, separate contact

RUZSC3M

socket, Harmony Electromechanical Relays, for RUMC3 relays, 12A, screw connec to rs, separate contact

"This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CSA UL
Ambient Air Temperature For Operation	-40-55 °C
Standards	IEC 61984
Marking	CE
Ip Degree Of Protection	IP20 conforming to IEC 60529
Ambient Air Temperature For Storage	-40-85 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1511021EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Tightening Torque	< 1 N.m M3.5
[Uimp] Rated Impulse Withstand Voltage	4 kV
Pollution Degree	3
Shape Of Pin	cylindrical
Contact Terminal Arrangement	separate
Net Weight	0.1 kg
Fixing Mode	by screw (panel) clip-on (35 mm symmetrical DIN rail)
Connections - Terminals	connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Sale Per Indivisible Quantity	10
Width	36 mm
Overvoltage Category	III
Country of Origin	United States
Width	36 mm
Weight	0.1 kg
[Ith] Conventional Free Air Thermal Current	12 A
Range Of Product	Harmony Electromechanical Relays
Product Or Component Type	socket
Contacts Type And Composition	3 C/O
Product Compatibility	plug-in relay RUM 3 C/O
Device Short Name	RUZ
[Ue] Rated Operational Voltage	< 250 V

socket, Harmony Electromechanical Relays, for RUMC3 relays, 12A, screw connec to rs, separate contact
