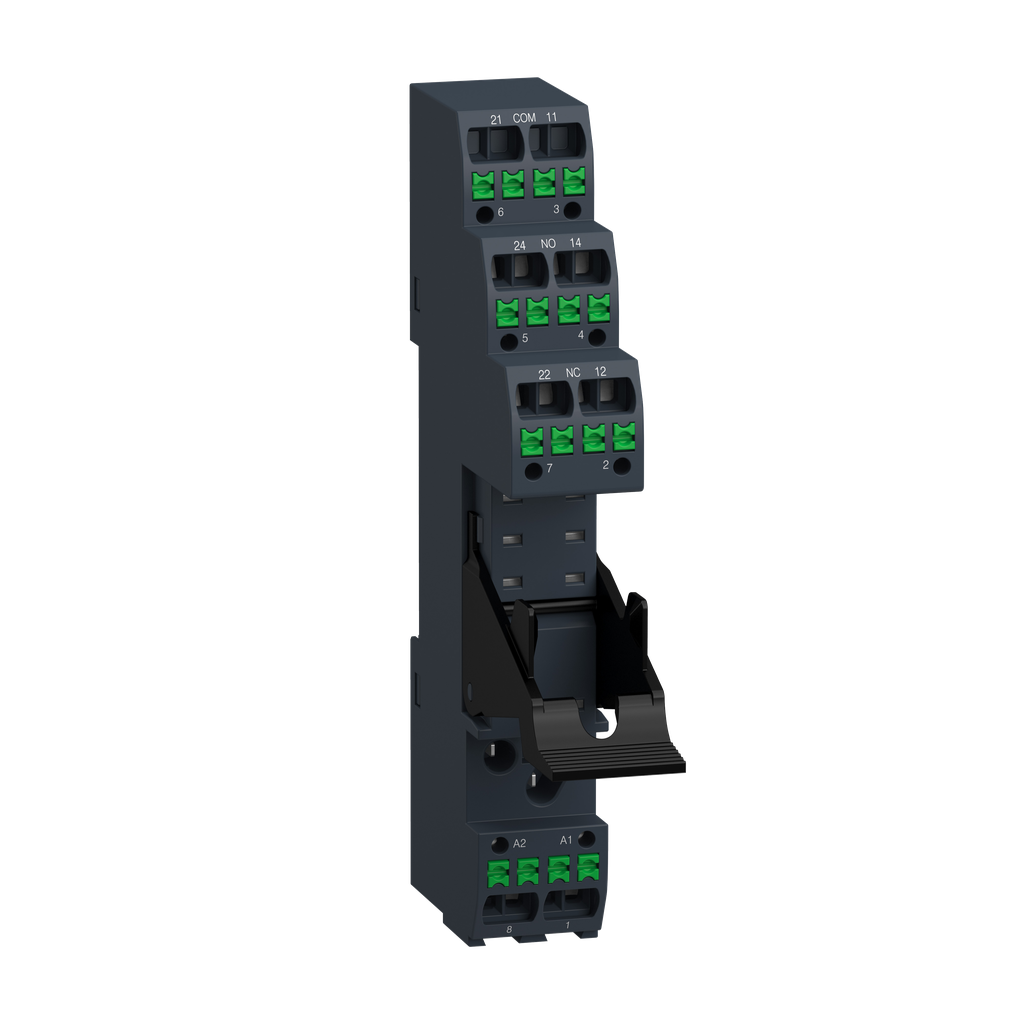

RSZE08P
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
Specifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -40-85 °C |
| Standards | IEC 61984 |
| Marking | CE |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 60 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| [Ue] Rated Operational Voltage |
|
| Pollution Degree | 3 |
| Shape Of Pin | flat |
| Length | 98 mm |
| Contact Terminal Arrangement | separate |
| Net Weight | 0.042 kg |
| Fixing Mode | clip-on (35 mm symmetrical DIN rail) |
| Connections - Terminals |
|
| Sale Per Indivisible Quantity | 10 |
| Width | 16 mm |
| Overvoltage Category | III |
| Country of Origin | China |
| Length | 98 mm |
| Width | 16 mm |
| Height | 60 mm |
| Weight | 0.042 kg |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Range Of Product | Harmony Electromechanical Relays |
| Product Compatibility |
|
| [Ui] Rated Insulation Voltage | 250 V |
| Product Or Component Type | socket |
| Contacts Type And Composition | 2 C/O |
| Device Short Name | RSZ |
