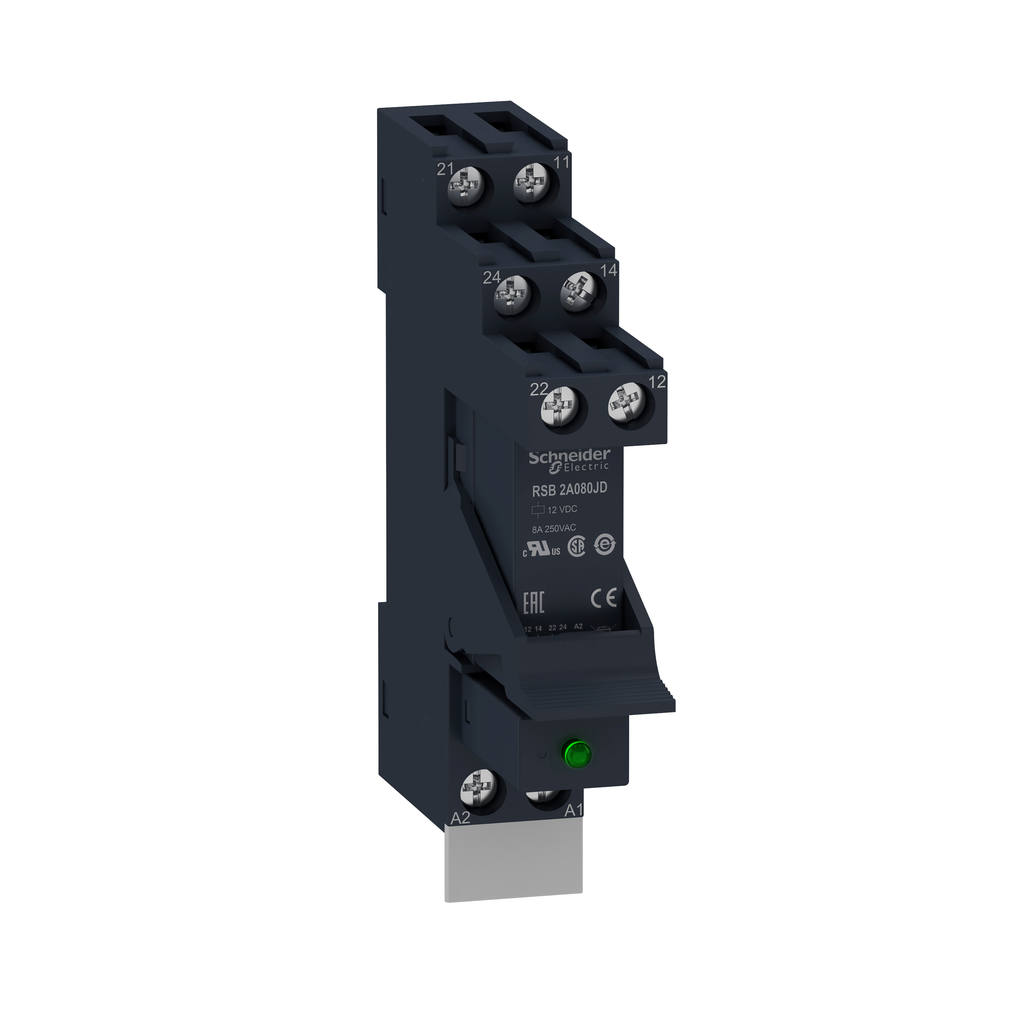

interface relay, Harmony Electromechanical Relays, 8A, 2CO, with LED, 12V DC
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This is a 8A, 12Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards |
|
| Ambient Air Temperature For Operation | -40-85 °C DC) |
| Shock Resistance |
|
| Dielectric Strength |
|
| Vibration Resistance | +/- 1 mm 10-55 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Warranty | 18 Months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2403026EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Maximum Switching Capacity |
|
| Safety Reliability Data | B10d = 100000 |
| [Ue] Rated Operational Voltage | 9.6...13.2 V DC |
| Operating Rate |
|
| Torque Value |
|
| Protection Category | RT I |
| Test Levels | level A group mounting |
| Contacts Material | silver alloy (AgNi) |
| Net Weight | 0.057 kg |
| [Uimp] Rated Impulse Withstand Voltage | 3.6 kV IEC 61000-4-5 |
| Maximum Switching Voltage | 300 V DC IEC |
| Average Resistance | 360 Ohm DC 20 °C +/- 15 % |
| Device Presentation | complete product |
| Connections - Terminals |
|
| Switching Voltage | 12 V |
| Average Coil Consumption | 0.45 W DC |
| [Ie] Rated Operational Current |
|
| Sale Per Indivisible Quantity | 30 |
| [Ui] Rated Insulation Voltage | 400 V IEC 60947 |
| Minimum Switching Current | 10 mA |
| Electrical Durability |
|
| Mechanical Durability | 30000000 cycles |
| Operating Position | any position |
| Operating Time |
|
| Load Current |
|
| Drop-Out Voltage Threshold | >= 0.1 Uc DC |
| Minimum Switching Capacity | 120 mW 10 mA, 12 V |
| Country of Origin | Indonesia |
| Weight | 0.057 kg |
| [Uc] Control Circuit Voltage | 12 V DC |
| Range Of Product | Harmony Electromechanical Relays |
| Product Or Component Type | pre-assembled plug-in relay with socket |
| Status Led | 1 LED |
| Control Type | Without |
| Series Name | interface relay |
| Contacts Type And Composition | 2 C/O |
| Contact Operation | standard |
| Device Short Name | RSB |
| [Ithe] Conventional Enclosed Thermal Current | 8 A -40-40 °C |
