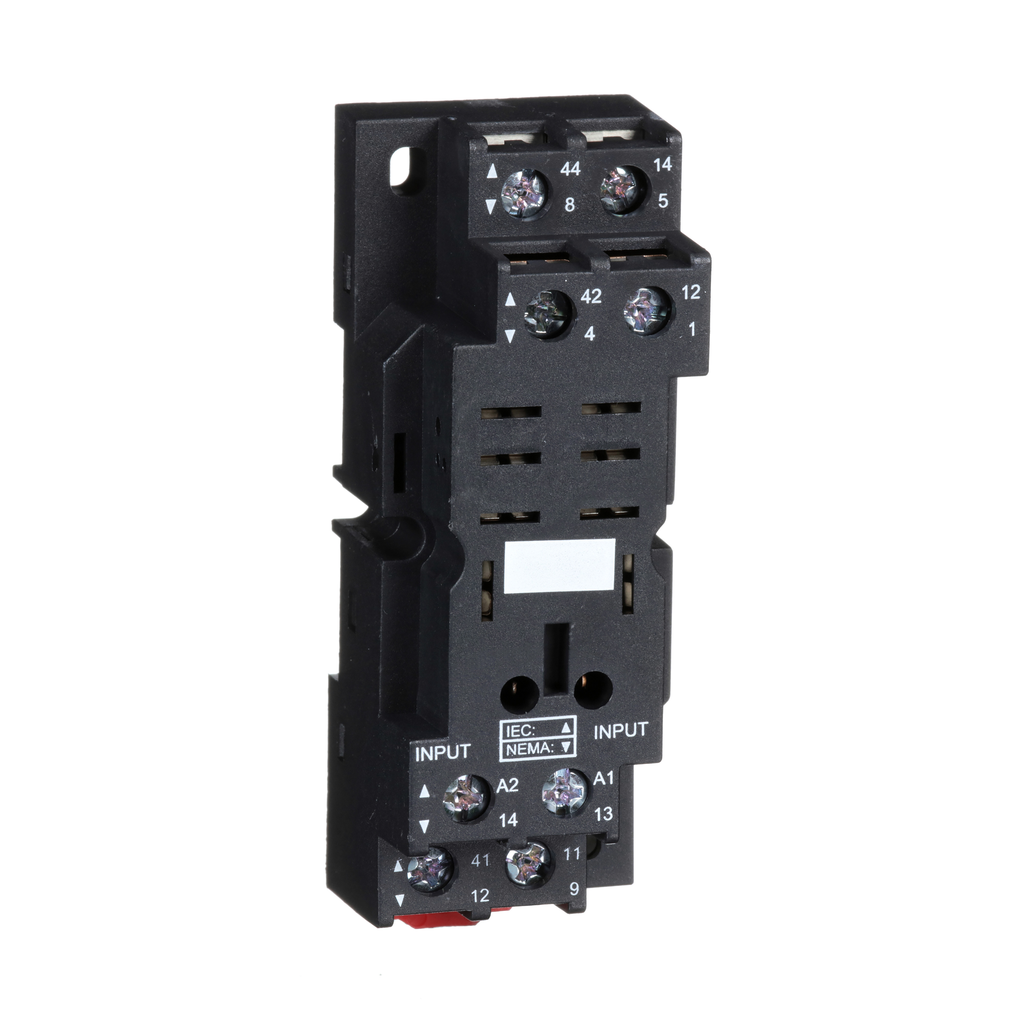

RPZF2 – Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM2 relays
RPZF2
Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM2 relays

Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL
  • CSA
Ambient Air Temperature For Operation -40-55 °C
Standards IEC 61984
Connections - Terminals
  • - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14
  • - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16
  • - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14
  • - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16
Marking CE
Ip Degree Of Protection IP20 conforming to IEC 60529
Dielectric Strength 2500 V
Ambient Air Temperature For Storage -40-85 °C
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1511021EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile N/A
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Tightening Torque < 1 N.m M3.5
[Uimp] Rated Impulse Withstand Voltage 4 kV
Pollution Degree 3
Shape Of Pin flat
Contact Terminal Arrangement mixed
Net Weight 0.054 kg
Fixing Mode
  • by screw (panel)
  • clip-on (35 mm symmetrical DIN rail)
Sale Per Indivisible Quantity 10
Width 30 mm
Overvoltage Category III
Country of Origin Taiwan
Width 30 mm
Weight 0.054 kg
[Ith] Conventional Free Air Thermal Current 16 A
Range Of Product Harmony Electromechanical Relays
Product Or Component Type socket
Contacts Type And Composition 2 C/O
Product Compatibility plug-in relay RPM 2 C/O
Device Short Name RPZ
[Ue] Rated Operational Voltage < 250 V
