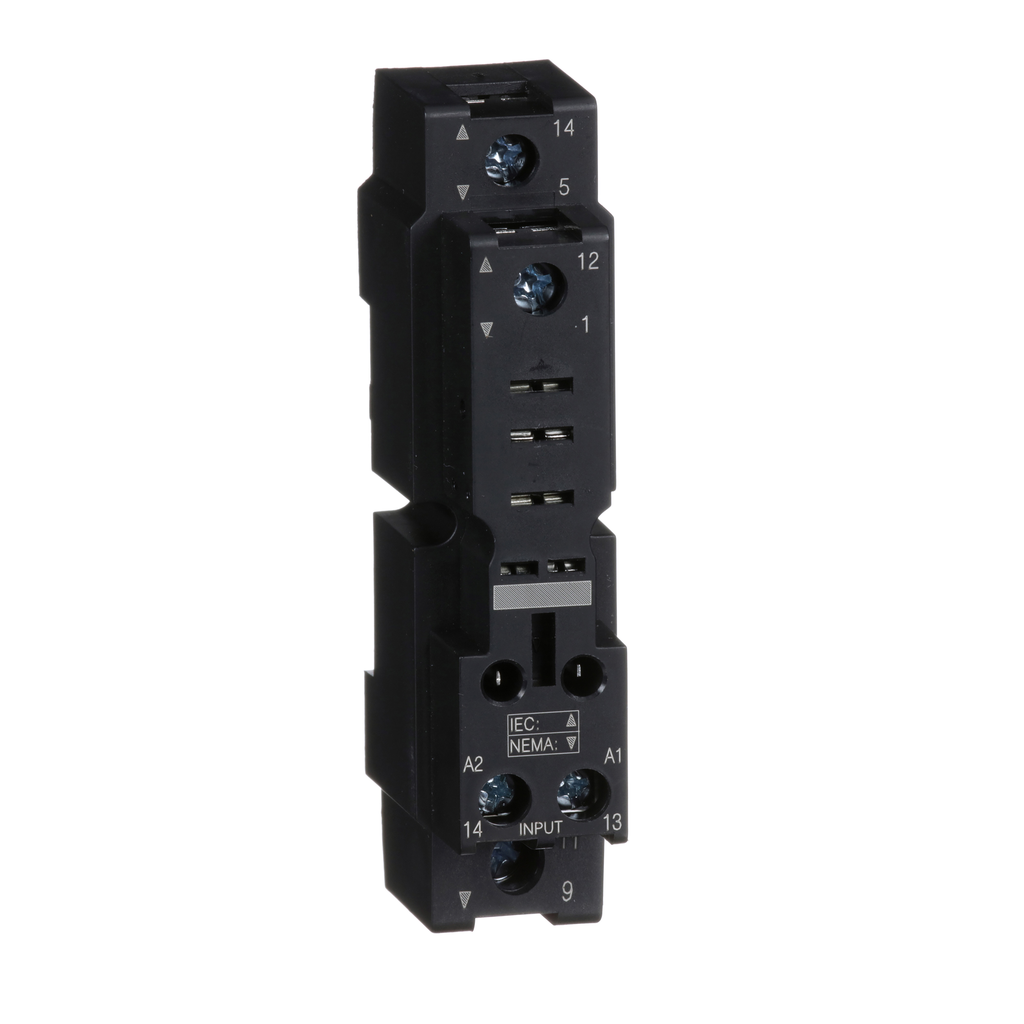

RPZF1 - Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays

RPZF1

Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays

Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CSA UL EAC CE
Ambient Air Temperature For Operation	-40-55 °C
Standards	IEC 61984 CSA C22.2 No 14 UL 508
Connections - Terminals	contact terminal - screw clamp terminals, 2 wires solid without cable end 0.5...4 mm² / AWG 20...AWG 12 contact terminal - screw clamp terminals, 1 wire solid without cable end 0.5...4 mm² / AWG 20...AWG 12 contact terminal - screw clamp terminals, 2 wires flexible with cable end 0.5...2.5 mm² / AWG 20...AWG 14 contact terminal - screw clamp terminals, 1 wire flexible with cable end 0.5...2.5 mm² / AWG 20...AWG 14 coil terminal - screw clamp terminals, 2 wires solid without cable end 0.5...2.5 mm² / AWG 20...AWG 14 coil terminal - screw clamp terminals, 1 wire solid without cable end 0.5...2.5 mm² / AWG 20...AWG 14 coil terminal - screw clamp terminals, 2 wires flexible with cable end 0.5...1.5 mm² / AWG 20...AWG 16 coil terminal - screw clamp terminals, 1 wire flexible with cable end 0.5...1.5 mm² / AWG 20...AWG 16
Ip Degree Of Protection	IP20 conforming to IEC 60529
Dielectric Strength	2500 V
Ambient Air Temperature For Storage	-40-85 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1511021EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Tightening Torque	< 1 N.m M3.5 < 0.8 N.m M3
[Uimp] Rated Impulse Withstand Voltage	4 kV
Pollution Degree	3
Contact Terminal Arrangement	mixed
Net Weight	0.031 kg
Fixing Mode	by screw (panel) clip-on (35 mm symmetrical DIN rail)
Overvoltage Category	III
Country of Origin	France
Weight	0.031 kg
[Ith] Conventional Free Air Thermal Current	16 A
Range Of Product	Harmony Electromechanical Relays
Product Or Component Type	socket
Contacts Type And Composition	1 C/O
Product Compatibility	plug-in relay RPM 1 C/O
Device Short Name	RPZ
[Ue] Rated Operational Voltage	250 V

Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays
