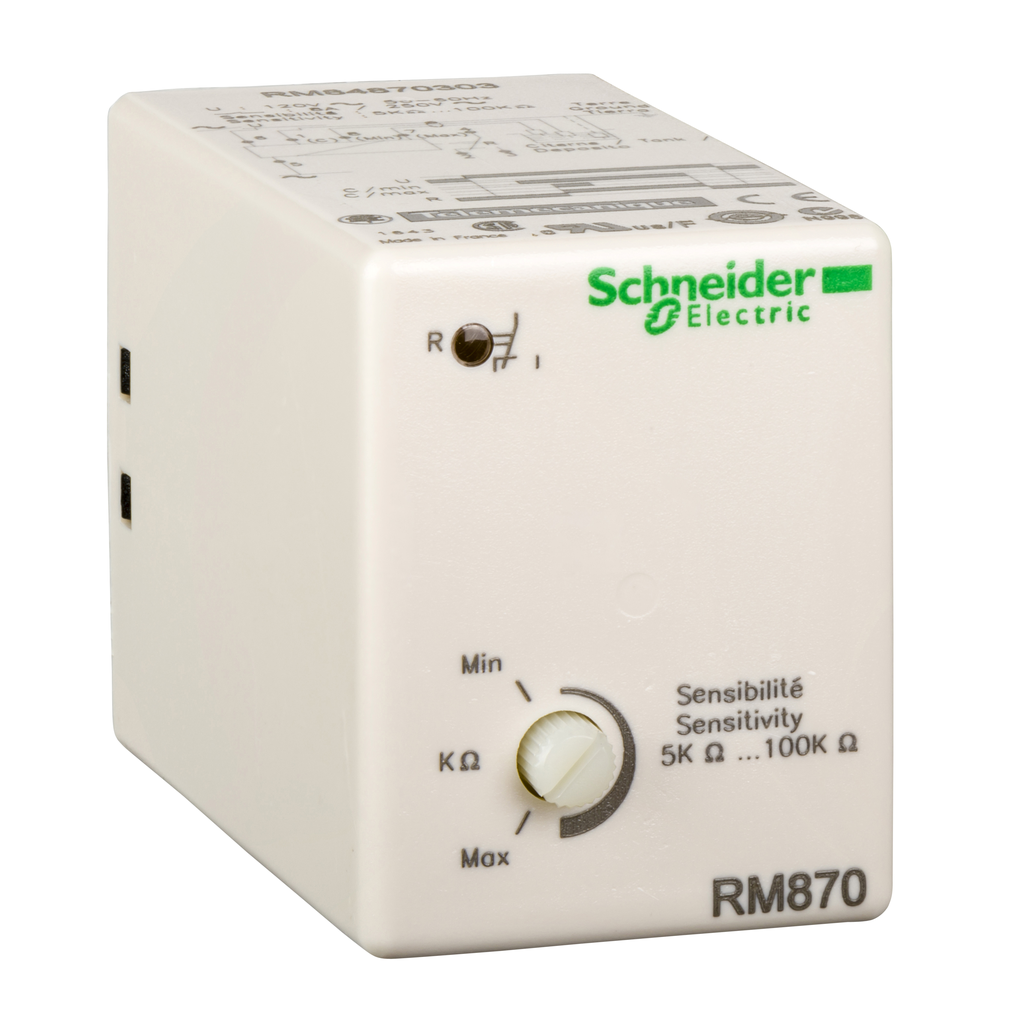

RM84870301
Industrial measurement and relay, Harmony relay, plug-in liquid level control relay RM84, 8 pins, 24V AC, 1 C/O
Specifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Storage | -30-70 °C |
| Ambient Air Temperature For Operation | -20-60 °C |
| Warranty | 18 months |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Maximum Electrode Current | 1 mA 50/60 Hz |
| Isolation Voltage | 2500 V AC contacts and electrodes from the supply |
| Contacts Type And Composition |
|
| Maximum Electrode Voltage | 24 V AC 50/60 Hz |
| Maximum Cable Capacity | 0 mF |
| Maximum Output Current | 8 mA AC AC-1 resistive |
| Measurement Accuracy | 0...30 % |
| Width | 39 mm |
| Response Time |
|
| Voltage Range | 0.85...1.15 x Un |
| Pin Number | 8 |
| Sensitivity Scale | 5...100 kOhm |
| Country of Origin | United States |
| Width | 39 mm |
| Relay Type | plug-in liquid level control relay |
| Range Of Product | Harmony Relay |
| Relay Monitored Parameters | detection by resistive probes |
| Product Or Component Type | industrial measurement and control relays |
| Maximum Power Consumption In Va | 3 VA |
| Relay Name | RM84870 |
