RM35S0MW - speed control relay, Harmony Control Relays, 5A, 1CO, 24â€¦240V AC DC

RM35S0MW

speed control relay, Harmony Control Relays, 5A, 1CO, 24â€¦240V AC DC

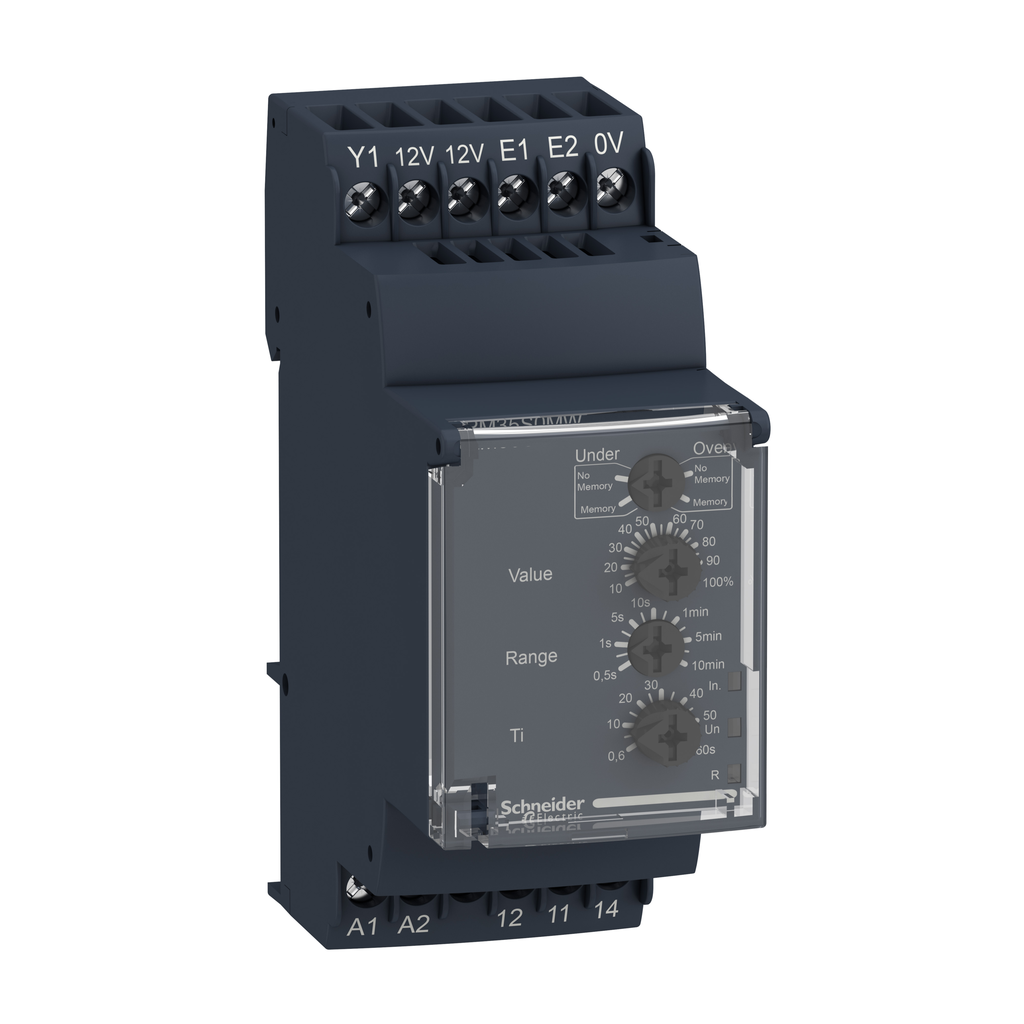

This Harmony RM35-S control relay allows monitoring of speed control. This modular control relay is ideal for monitoring of electrical values and speed variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	C-tick GOST UL GL CSA
Ambient Air Temperature For Operation	-20-50 °C
Standards	NF EN 60255-6 IEC 60255-6
Immunity To Microbreaks	50 ms
Dielectric Test Voltage	2 kV AC 50 Hz
Electromagnetic Compatibility	emission standard for industrial environments IEC 61000-6-4 emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 immunity for industrial environments NF EN/IEC 61000-6-2
Shock Resistance	15 gn 11 ms IEC 60255-21-1
Vibration Resistance	0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
Ip Degree Of Protection	IP20 IEC 60529 terminals) IP30 IEC 60529 casing)
Pollution Degree	3 IEC 60664-1
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % 55-55 °C IEC 60068-2-30
Non-Dissipating Shock Wave	4 kV
Warranty	18 months
Mercury Free	Yes
Environmental Disclosure	ENVPEP1601004EN
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1601004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Supply Current For Sensors	40 mA < 24 V AC 25 °C 40 mA < 24 V DC 25 °C 50 mA 24...240 V AC 50 mA 24...240 V DC
Hysteresis	5-5 % threshold
Insulation Resistance	> 500 MOhm 500 V DC between supply and relay output IEC 60255-5 > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
Measurement Error	+/- 0.1 %/°C with temperature variation < +/- 1 % over the whole range with voltage variation
Operating Rate	<= 360 operations/hour full load
Status Led	1 LED Green power ON 1 LED Yellow inhibit 1 LED Yellow relay (R)
Output Contacts	1 C/O
Contacts Material	cadmium free
Polarity	reversible polarity on DC supply
Marking	CE : EMC 89/336/EEC CE : 73/23/EEC
Response Time	15 ms max (on crossing the threshold)
Operating Position	any position without derating
Input Frequency	0.0017-20 Hz
Threshold Setting	10...100 %
Maximum Switching Voltage	250 V AC/DC
Control Type	without test button
Reset Time	50 ms contact S2 in memory mode on time delay 1 s supply Un in memory mode on time delay
Input Compatibility	3-wire sensor (E1) PNP or NPN, 12 V, 50 mA NAMUR sensor (E2), 12 V, 1.5 kOhm voltage input (E1), 0...30 V, 9.5 kOhm >= 4.5 V <= 1 V volt-free contact input (E1), 12 V, 9.5 kOhm
Connections - Terminals	screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
[Us] Rated Supply Voltage	24...240 V AC/DC 50/60 Hz, non self-powered
[Ui] Rated Insulation Voltage	250 V IEC 60664-1
Overvoltage Category	III IEC 60664-1
Supply Voltage Limits	20.4-264 V AC/DC
Mounting Support	35 mm symmetrical DIN rail conforming to IEC 60715
Nominal Output Current	5 A
Mechanical Durability	30000000 cycles
Housing Material	self-extinguishing plastic
Control Circuit Voltage Limits	- 15 % + 10 % Un
Impulse Duration	>= 5 ms high state >= 5 ms low state
Measurement Accuracy	+/- 10 % of the full scale value
Width	35 mm
Tightening Torque	0.6-1 N.m IEC 60947-1
Maximum Power Consumption In W	3 W DC
Electrical Durability	100000 cycles
Run-Up Delay At Power-Up	0.05 s
Repeat Accuracy	+/- 0.5 % input and measurement circuit +/- 0.5 % time delay
Supply Frequency	50/60 Hz +/- 10 %
Country of Origin	United States
Width	35 mm
Minimum Switching Current	10 mA 5 V DC
Range Of Product	Harmony Control Relays
Measurement Range	0.05...0.5 s 0.5...5 min 1...10 min 1...10 s 0.5...5 s 0.1...1 s 0.1...1 min
Switching Capacity In Va	1250 VA
Product Or Component Type	speed control relay
Utilisation Category	AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 DC-14 IEC 60947-5-1
Relay Name	RM35S
Time Delay Range	0.6...60 s adjustable on energisation 0...10 % of the full scale value)
Relay Type	speed control relays
Time Delay Type	adjustable 0.6...60 s Ti- inhibition time delay upon startup
Relay Monitored Parameters	overspeed underspeed
Maximum Power Consumption In Va	5 VA AC
