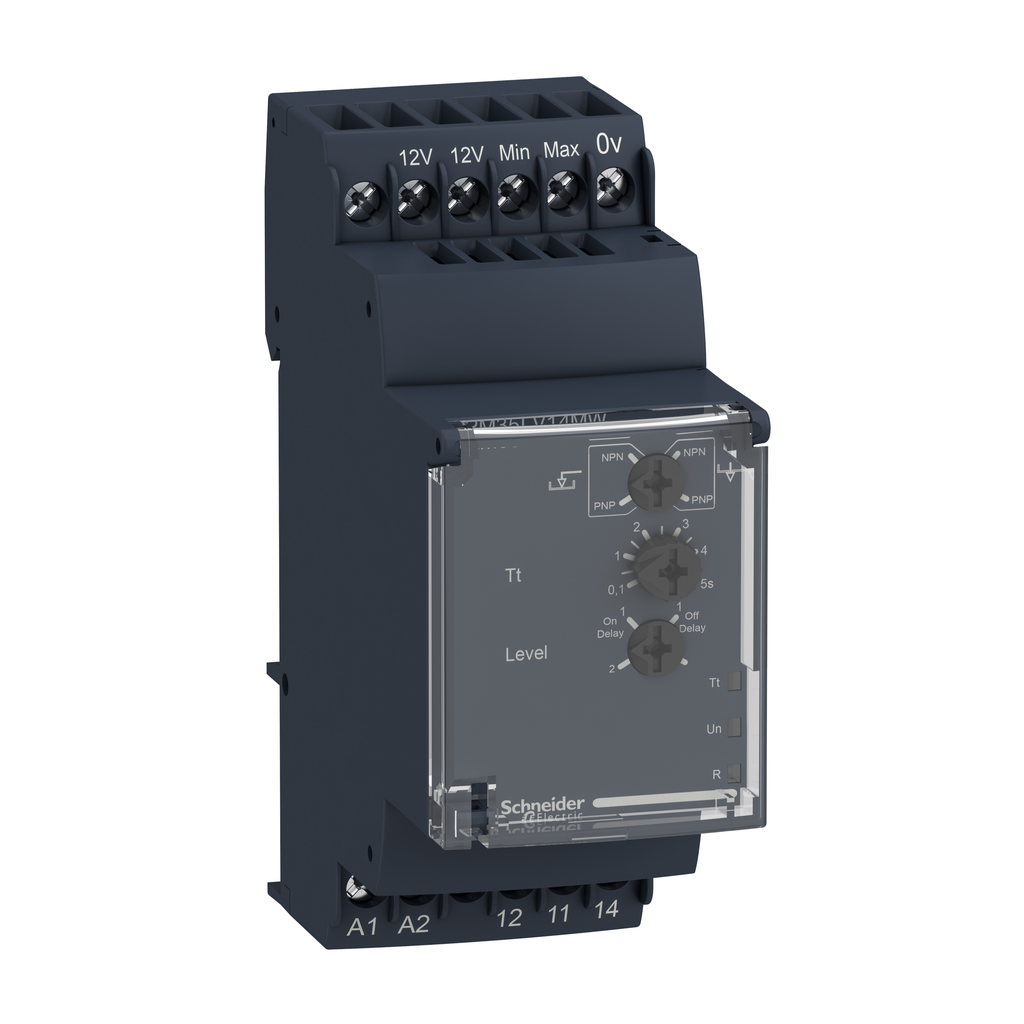

RM35LV14MW – level control relay, Harmony Control Relays, 5A, 1CO, 24…240V AC DC
RM35LV14MW
level control relay, Harmony Control Relays, 5A, 1CO, 24…240V AC DC

"This Harmony RM35-LV relay allows monitoring of level control in 3-phase networks." "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device." "It also offers a sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • GOST
  • CSA
  • UL
  • GL
  • C-tick
Standards IEC 60255-6
Dielectric Test Voltage
  • 2 kV AC 50 Hz, 1 min IEC 60255-5
  • 2 kV AC 50 Hz, 1 min IEC 60664-1
Electromagnetic Compatibility
  • emission standard for industrial environments conforming to IEC 61000-6-4
  • emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
  • immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Immunity To Microbreaks
  • 100 ms DC
  • 90 ms AC
Ambient Air Temperature For Operation -20-50 °C
Ip Degree Of Protection
  • IP20 IEC 60529 terminals)
  • IP30 IEC 60529 casing)
Pollution Degree 3 IEC 60664-1
Ambient Air Temperature For Storage -40-70 °C
Relative Humidity 95-95 % 55-55 °C IEC 60068-2-30
Warranty 18 months
Mercury Free Yes
Environmental Disclosure ENVPEP1601004EN
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation X
Circularity Profile ENVEOLI1601004EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Safety Reliability Data
  • B10d = 170000
  • MTTFd = 182.6 years
Control Circuit Voltage Limits - 15 % + 10 % Un
Cable Capacitance 10 nF probe cable
Insulation Resistance
  • > 500 MOhm 500 V DC between supply and relay output IEC 60255-5
  • > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1
  • > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
  • > 500 MOhm 500 V DC between supply and relay output IEC 60664-1
  • > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5
  • > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
Measurement Error 0.5 %/°C with temperature variation
Operating Rate <= 360 operations/hour full load
Output Contacts 1 C/O
Reset Time
  • 1000 ms
  • 4000 ms
Marking
  • CE : EMC 89/336/EEC
  • CE : 73/23/EEC
Operating Position any position without derating
Maximum Switching Voltage 250 V AC/DC
Control Type without test button
Connections - Terminals
  • screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end
  • screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
  • screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end
[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz, non self-powered
[Ui] Rated Insulation Voltage 250 V IEC 60664-1
Overvoltage Category III IEC 60664-1
Supply Voltage Limits 20.4-264 V AC/DC
Mounting Support 35 mm symmetrical DIN rail conforming to IEC 60715
Nominal Output Current 5 A
Local Signalling
  • for relay ON LED (yellow)
  • for power ON LED (green)
  • for timer ON LED (yellow)
Mechanical Durability 30000000 cycles
Maximum Supply Current For Sensors 40 mA
Housing Material self-extinguishing plastic
Measurement Accuracy
  • +/- 10 % of the full scale value
  • +/- 20 % for the HS range
Width 35 mm
Tightening Torque 0.6-1 N.m IEC 60947-1
Maximum Power Consumption In W 1.5 W DC
Sensitivity Adjustment 5-100 %
Electrical Durability 100000 cycles
Run-Up Delay At Power-Up 0.5 s
Repeat Accuracy +/- 2 % time delay
Country of Origin France
Width 35 mm
Minimum Switching Current 10 mA 5 V DC
Maximum Switching Current 5 A AC/DC
Range Of Product Harmony Control Relays
Switching Capacity In Va 1250 VA
Product Or Component Type level control relay
Utilisation Category
  • AC-12 IEC 60947-5-1
  • AC-13 IEC 60947-5-1
  • AC-14 IEC 60947-5-1
  • AC-15 IEC 60947-5-1
  • DC-12 IEC 60947-5-1
  • DC-13 IEC 60947-5-1
Relay Name RM35L
Contacts Type And Composition 2 C/O
Relay Type level control relay
Time Delay Type adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault
Relay Monitored Parameters detection by discrete sensors
Maximum Power Consumption In Va 5 VA AC
