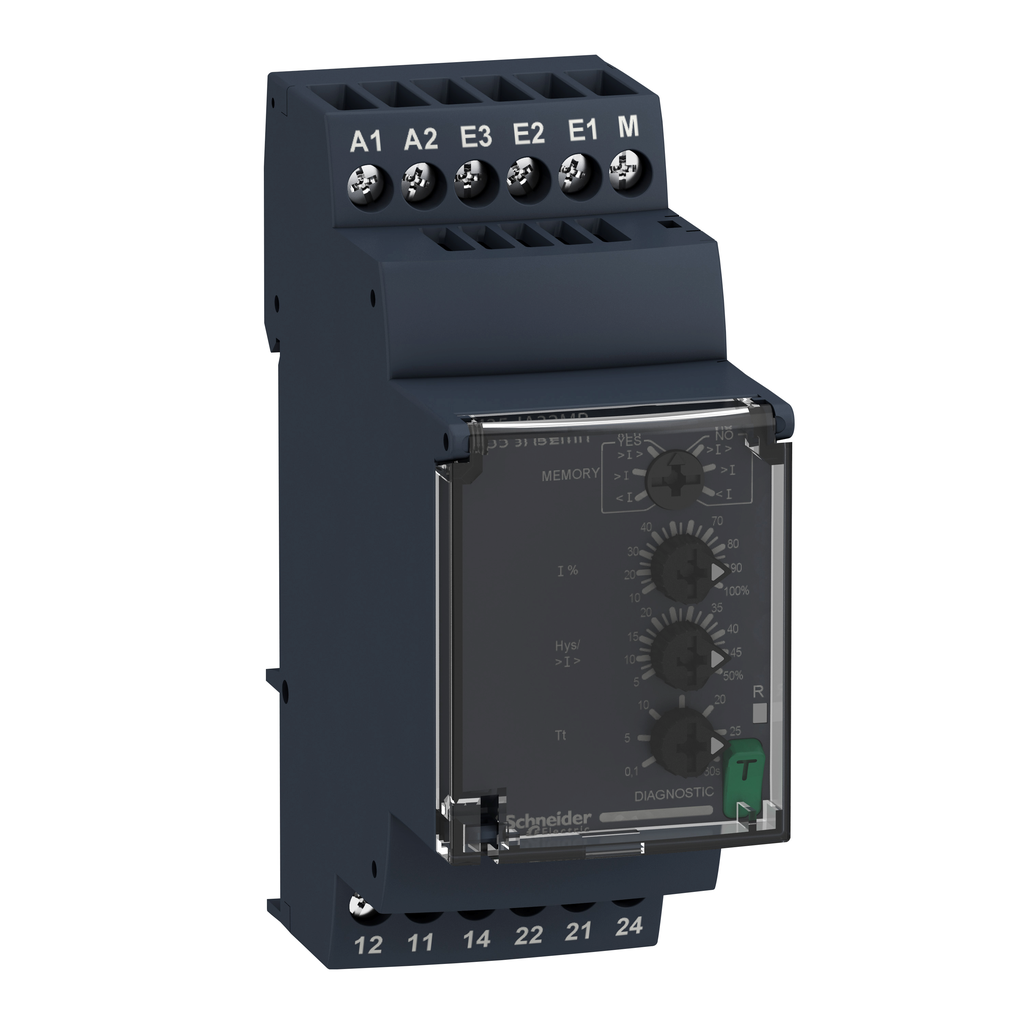

RM35JA32MRSP01 - Modular measurement and relay, Harmony relay, 5A, 0.15â€¦15A, 24â€¦240V AC/DC, 2 C/O

RM35JA32MRSP01

Modular measurement and relay, Harmony relay, 5A, 0.15â€¦15A, 24â€¦240V AC/DC, 2 C/O

Add to Quote Catalogue

Specifications

Safety Reliability Data	MTTFd = 296.8 years B10d = 270000
Maximum Measuring Cycle	100 ms measurement cycle as true rms value
Switching Threshold Drift	<= 0.05 % per degree centigrade depending permissible ambient air temperature <= 1 % within the supply voltage range
Control Circuit Voltage Limits	- 15 % + 10 % Un
Hysteresis	5-50 % adjustable threshold setting 3-3 % fixed full scale for window mode
Insulation Resistance	> 100 MOhm 500 V DC IEC 60255-27
Measurement Error	< 1 % over the whole range with voltage variation 0.05 %/°C with temperature variation
Internal Input Resistance	0.015 Ohm 0.005 Ohm 0.05 Ohm
Output Contacts	2 C/O
Contacts Material	cadmium free
Response Time	<= 500 ms (on crossing the threshold)
Net Weight	0.12 kg
Threshold Setting	10...100 %
Maximum Switching Voltage	250 V AC
Reset Time	1500 ms at maximum voltage
Connections - Terminals	screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Overvoltage Category	III IEC 60664-1 III UL 508
Insulation	between supply and measurement
Time Delay Drift	<= 0.05 % per degree centigrade depending permissible ambient air temperature <= 1 % within the supply voltage range
Setting Accuracy Of Time Delay	10 P
Supply Voltage Limits	20.4-264 V AC/DC
Mounting Support	35 mm DIN rail conforming to IEC 60715
Nominal Output Current	8 A
Local Signalling	for relay ON LED (yellow) for power ON LED (green)
Mechanical Durability	10000000 cycles
Housing Material	self-extinguishing plastic
Resistance Across Terminals	0.005 Ohm E3-M terminals 0.015 Ohm E2-M terminals 0.05 Ohm E1-M terminals
Width	35 mm
Tightening Torque	0.6-1 N.m IEC 60947-1
Maximum Power Consumption In W	1.5 W DC
Electrical Durability	100000 cycles
Run-Up Delay At Power-Up	0.3 s
Repeat Accuracy	+/- 0.5 % input and measurement circuit +/- 2 % time delay
Setting Accuracy Of The Switching Threshold	+/- 10 % of the full scale
Product Certifications	CE UL CSA
Standards	IEC 60255-1
Immunity To Microbreaks	50 ms
Dielectric Test Voltage	2.5 kV AC 50 Hz, 1 min IEC 60255-27
Electromagnetic Compatibility	immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 immunity for industrial environments conforming to IEC 61000-6-2 emission standard for industrial environments conforming to IEC 61000-6-4 electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 conducted and radiated emissions class B group 1 conforming to CISPR 11 conducted and radiated emissions class B conforming to CISPR 22 emission standard for residential, commercial and light-industrial environments (except radiated emission) conforming to IEC 61000-6-3
Shock Resistance	15 gn 11 ms) not in operation IEC 60068-2-27 5 gn 11 ms) in operation IEC 60068-2-27
Ambient Air Temperature For Operation	-20-50 °C 60 Hz -20-60 °C 50 Hz
Vibration Resistance	0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Environmental Characteristic	3K3 C
Ip Degree Of Protection	IP20 IEC 60529 terminals) IP50 IEC 60529 front panel) IP30 IEC 60529 housing)
Pollution Degree	3 IEC 60664-1 3 UL 508
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	93-97 % 25-55 °C IEC 60068-2-30
Mercury Free	Yes
Environmental Disclosure	ENVPEP1601004EN
China Rohs Regulation	X
Circularity Profile	ENVEOLI1601004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Indonesia
Width	35 mm
Weight	0.12 kg
Minimum Switching Current	10 mA 5 V DC
Maximum Switching Current	8 A AC
Range Of Product	Harmony Relay
Measurement Range	0.15...1.5 A E1-M terminals 0.5...5 A E2-M terminals 1.5...15 A E3-M terminals 150 mA...15 A current AC/DC 50/60 Hz
Switching Capacity In Va	2000 VA
Product Or Component Type	modular measurement and control relays
Utilisation Category	AC-15 IEC 60947-5-1 DC-13 IEC 60947-5-1 AC-1 IEC 60947-4-1 DC-1 IEC 60947-4-1
Relay Name	RM35JA
Relay Type	current control relay
Time Delay Type	adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
Relay Monitored Parameters	overcurrent or undercurrent in window mode overcurrent or undercurrent detection
Maximum Power Consumption In Va	3.5 VA
