RM22LG11MT - level control relay, Harmony Control Relays, 8A, 1CO, 380â€¦415V AC DC

RM22LG11MT

level control relay, Harmony Control Relays, 8A, 1CO, 380â€¦415V AC DC

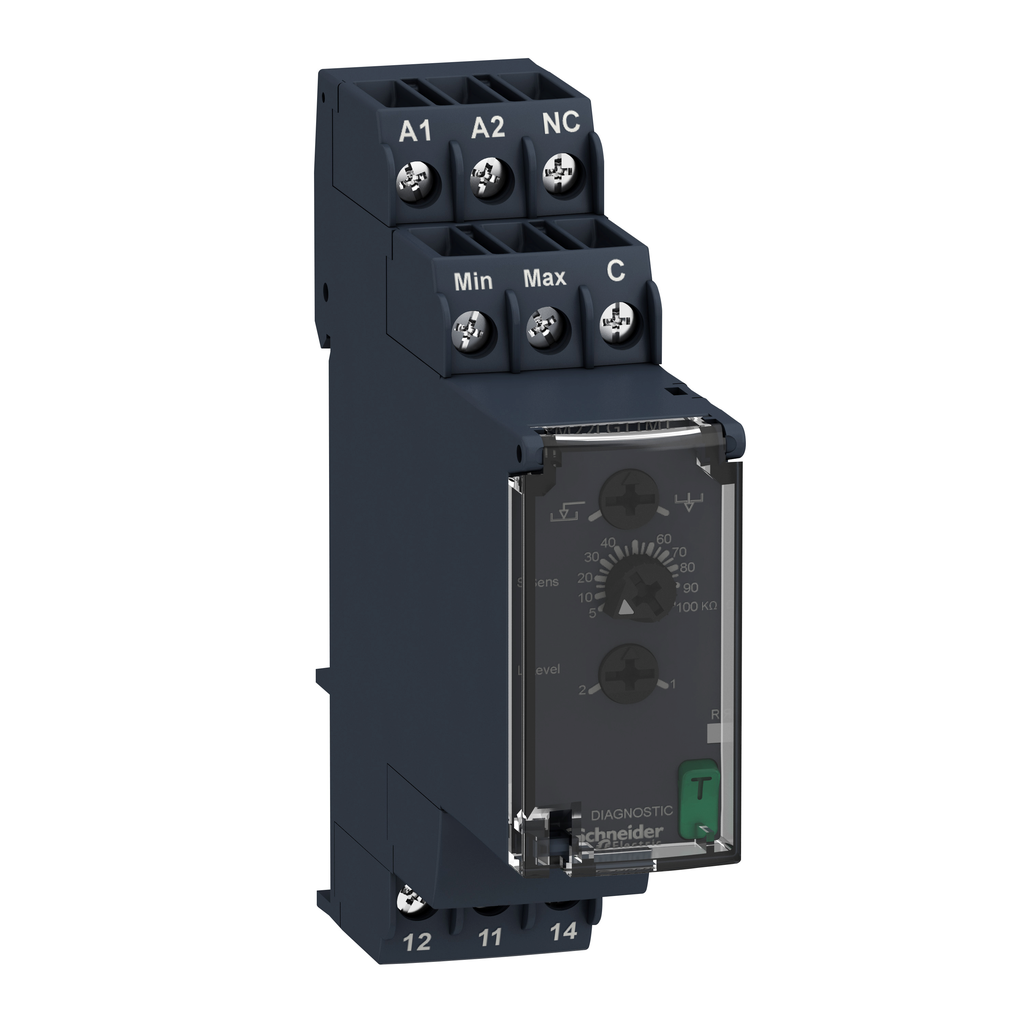

"This Harmony RM22-LG relay allows monitoring of liquid level control in 3-phase networks." "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1504008EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1504008EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Safety Reliability Data	MTTFd = 125.5 years B10d = 120000
Maximum Electrode Voltage	12 V AC
Cable Capacitance	1 nF HS (High Sensitivity) probe cable 2.2 nF St (Standard Sensitivity) probe cable 4.7 nF LS (Low Sensitivity) probe cable
Measurement Error	< 1 % over the whole range with voltage variation 0.05 %/°C with temperature variation
Measurement Range	5...100 kOhm
Maximum Cable Distance Between Devices	1000 m probe and delay
Output Contacts	2 C/O
Contacts Material	cadmium free
Sensitivity Scale	5...100 kOhm St (Standard Sensitivity)
Net Weight	0.1 kg
Maximum Switching Voltage	250 V AC
Control Type	with test button
Maximum Electrode Current	1 mA
Connections - Terminals	screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
[Us] Rated Supply Voltage	380...415 V AC/DC 50/60 Hz, non self-powered
Overvoltage Category	III IEC 60664-1
Insulation	between supply and measurement
Supply Voltage Limits	323-456.5 V AC
Mounting Support	35 mm DIN rail conforming to IEC 60715
Nominal Output Current	8 A
Mechanical Durability	10000000 cycles
Maximum Supply Current For Sensors	1 mA
Housing Material	self-extinguishing plastic
Mounting Position	any position
Width	22.5 mm
Tightening Torque	0.6-1 N.m IEC 60947-1
Sensitivity Adjustment	5-100 %
Electrical Durability	100000 cycles
Run-Up Delay At Power-Up	0.6 s
Repeat Accuracy	+/- 2 % time delay
Product Certifications	CSA GL RCM UL EAC CE CCC
Standards	IEC 60255-1
Dielectric Test Voltage	2.5 kV AC 50 Hz, 1 min IEC 60255-27
Electromagnetic Compatibility	immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 immunity for industrial environments conforming to IEC 61000-6-2 emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 emission standard for industrial environments conforming to IEC 61000-6-4 electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 conducted and radiated emissions class B group 1 conforming to CISPR 11 conducted and radiated emissions class B conforming to CISPR 22
Immunity To Microbreaks	100 ms DC 90 ms AC
Shock Resistance	15 gn 11 ms) not in operation IEC 60068-2-27 5 gn 11 ms) in operation IEC 60068-2-27
Vibration Resistance	0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Ip Degree Of Protection	IP20 IEC 60529 terminals) IP40 IEC 60529 housing) IP50 IEC 60529 front panel)
Pollution Degree	3 IEC 60664-1
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	93-97 % 25-55 °C IEC 60068-2-30
Country of Origin	Indonesia
Width	22.5 mm
Weight	0.1 kg
Minimum Switching Current	10 mA 5 V DC
Maximum Switching Current	8 A AC
Range Of Product	Harmony Control Relays
Switching Capacity In Va	2000 VA
Product Or Component Type	level control relay
Utilisation Category	AC-15 IEC 60947-5-1 DC-13 IEC 60947-5-1 AC-1 IEC 60947-4-1 DC-1 IEC 60947-4-1
Relay Name	RM22L
Contacts Type And Composition	1 C/O
Relay Type	level control relay
Time Delay Type	without
Relay Monitored Parameters	detection by resistive probes
