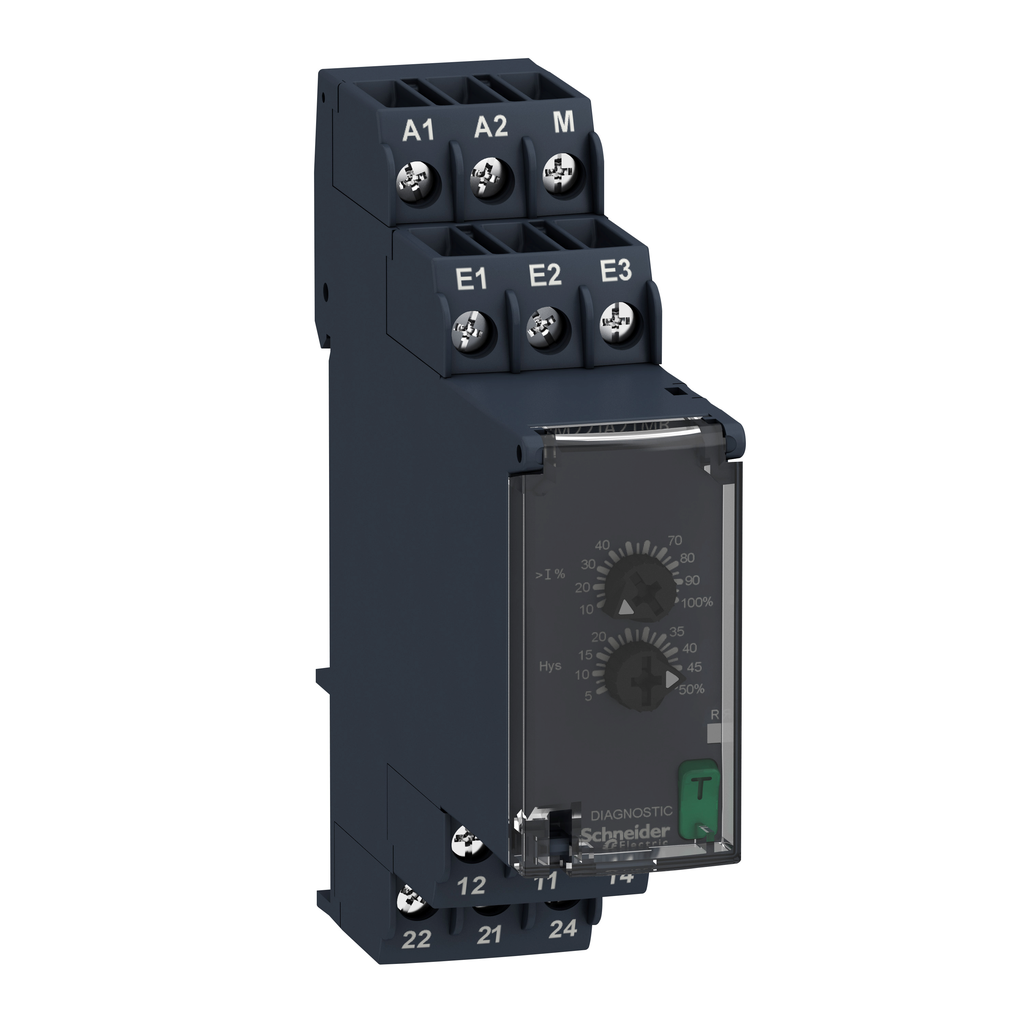

RM22JA21MR – current control relay, Harmony Control Relays , 8A, 2CO, 24…240V AC DC
RM22JA21MR
current control relay, Harmony Control Relays , 8A, 2CO, 24…240V AC DC

This Harmony RM22JA control relay allows monitoring of overcurrent control. This modular control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Country of Origin Indonesia
Width 22.5 mm
Weight 0.11 kg
Minimum Switching Current 10 mA 5 V DC
Maximum Switching Current 8 A AC
Range Of Product Harmony Control Relays
Measurement Range 4 mA...1 A current AC/DC 50/60 Hz
Switching Capacity In Va 2000 VA
Product Or Component Type current control relay
Utilisation Category
  • AC-15 IEC 60947-5-1
  • DC-13 IEC 60947-5-1
  • AC-1 IEC 60947-4-1
  • DC-1 IEC 60947-4-1
Relay Name RM22JA
Contacts Type And Composition 2 C/O
Relay Type current control relay
Time Delay Type without
Relay Monitored Parameters overcurrent detection
Maximum Power Consumption In Va 3.5 VA
Product Certifications
  • EAC
  • CSA
  • CE
  • RCM
  • CCC
  • UL
  • GL
Standards IEC 60255-1
Immunity To Microbreaks 50 ms
Dielectric Test Voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27
Electromagnetic Compatibility
  • immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1
  • immunity for industrial environments conforming to IEC 61000-6-2
  • emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
  • emission standard for industrial environments conforming to IEC 61000-6-4
  • electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
  • electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
  • radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3
  • electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4
  • electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4
  • surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5
  • surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5
  • conducted and radiated emissions class B group 1 conforming to CISPR 11
  • conducted and radiated emissions class B conforming to CISPR 22
Shock Resistance
  • 15 gn 11 ms) not in operation IEC 60068-2-27
  • 5 gn 11 ms) in operation IEC 60068-2-27
Ambient Air Temperature For Operation
  • -20-50 °C 60 Hz
  • -20-60 °C 50 Hz
Vibration Resistance
  • 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6
  • 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6
  • 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6
  • 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Ip Degree Of Protection
  • IP20 IEC 60529 terminals)
  • IP40 IEC 60529 housing)
  • IP50 IEC 60529 front panel)
Pollution Degree
  • 3 IEC 60664-1
  • 3 UL 508
Ambient Air Temperature For Storage -40-70 °C
Relative Humidity 93-97 % 25-55 °C IEC 60068-2-30
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1504008EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1504008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Safety Reliability Data
  • MTTFd = 296.8 years
  • B10d = 270000
Maximum Measuring Cycle 100 ms measurement cycle as true rms value
Switching Threshold Drift
  • <= 0.05 % per degree centigrade depending permissible ambient air temperature
  • <= 1 % within the supply voltage range
Control Circuit Voltage Limits - 15 % + 10 % Un
Hysteresis 5-50 % adjustable threshold setting
Insulation Resistance > 100 MOhm 500 V DC IEC 60255-27
Measurement Error
  • < 1 % over the whole range with voltage variation
  • 0.05 %/°C with temperature variation
Internal Input Resistance
  • 0.1 Ohm
  • 2.5 Ohm
  • 0.5 Ohm
Output Contacts 2 C/O
Contacts Material cadmium free
Response Time <= 500 ms
Net Weight 0.11 kg
Threshold Setting 10...100 %
Maximum Switching Voltage 250 V AC
Control Type with test button
Reset Time 1500 ms at maximum voltage
Connections - Terminals
  • screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
  • screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end
  • screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz, non self-powered
Overvoltage Category
  • III IEC 60664-1
  • III UL 508
Insulation between supply and measurement
Time Delay Drift
  • <= 0.05 % per degree centigrade depending permissible ambient air temperature
  • <= 1 % within the supply voltage range
Setting Accuracy Of Time Delay 10 P
Supply Voltage Limits 20.4-264 V AC/DC
Mounting Support 35 mm DIN rail conforming to IEC 60715
Nominal Output Current 8 A
Local Signalling
  • for relay ON LED (yellow)
  • for power ON LED (green)
Mechanical Durability 10000000 cycles
Housing Material self-extinguishing plastic
Resistance Across Terminals
  • 2.5 Ohm E1-M terminals
  • 0.5 Ohm E2-M terminals
  • 0.1 Ohm E3-M terminals
Width 22.5 mm
Tightening Torque 0.6-1 N.m IEC 60947-1
Maximum Power Consumption In W 1.5 W DC
Electrical Durability 100000 cycles
Run-Up Delay At Power-Up 0.3 s
Repeat Accuracy
  • +/- 0.5 % input and measurement circuit
  • +/- 0.2 % time delay
Setting Accuracy Of The Switching Threshold +/- 10 % of the full scale
