RM17TG20 - 3-phase control relay, Harmony Control Relays, 5A, 2CO, 208...480V AC

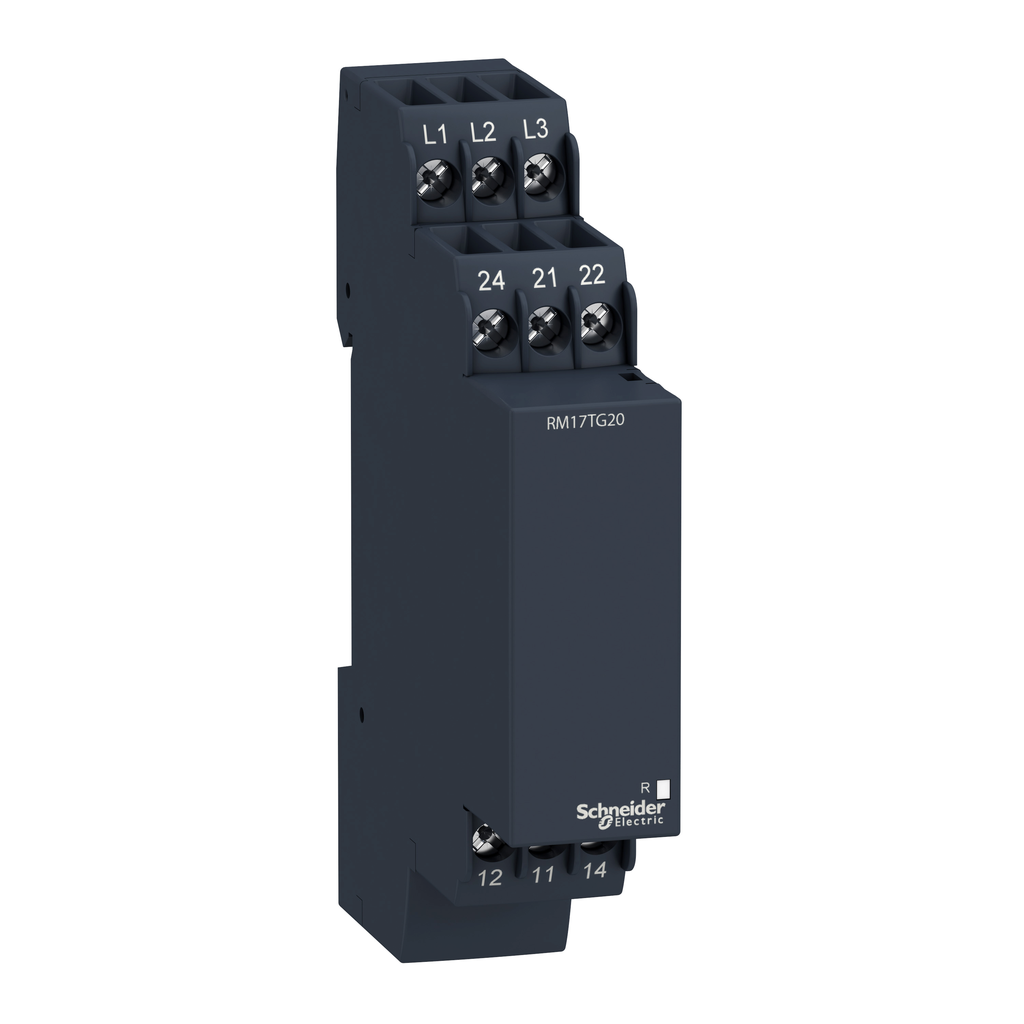

RM17TG20

3-phase control relay, Harmony Control Relays, 5A, 2CO, 208...480V AC

This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	GOST C-tick UL CSA GL
Standards	IEC 60255-1
Non-Dissipating Shock Wave	4 kV
Dielectric Test Voltage	2 kV AC 50 Hz, 1 min
Electromagnetic Compatibility	emission standard for industrial environments conforming to IEC 61000-6-4 emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 immunity for industrial environments conforming to IEC 61000-6-2
Shock Resistance	15 gn 11 ms IEC 60255-21-1
Ambient Air Temperature For Operation	-20-50 °C
Vibration Resistance	0.35 mm 5-57.6 Hz)IEC 60068-2-6 1 gn 57.6-150 Hz)IEC 60255-21-1
Ip Degree Of Protection	IP20 IEC 60529 terminals) IP30 IEC 60529 casing)
Pollution Degree	3 IEC 60664-1
Directives	73/23/EEC - low voltage directive 89/336/EEC - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % 55-55 °C IEC 60068-2-30
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1504008EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1504008EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Voltage Range	183...484 V
Safety Reliability Data	B10d = 850000 MTTFd = 924.6 years
Minimum Switching Current	10 mA 5 V DC
Control Circuit Voltage Limits	- 12 % + 10 % Un
Insulation Resistance	> 500 MOhm 500 V DC IEC 60255-5 > 500 MOhm 500 V DC IEC 60664-1
Operating Rate	<= 360 operations/hour full load
Power Consumption In Va	0-22 VA 400 V AC 50 Hz
Output Contacts	2 C/O
Voltage Detection Threshold	< 100 V AC
Marking	CE
Response Time	<= 130 ms (in the event of a fault)
Operating Position	any position without derating
Utilisation Category	AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1
Net Weight	0.13 kg
Maximum Switching Voltage	250 V AC 250 V DC
Measurement Voltage Limits	183-484 V AC
Control Type	without test button
Connections - Terminals	screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
[Us] Rated Supply Voltage	, self-powered
[Ui] Rated Insulation Voltage	400 V IEC 60664-1
Overvoltage Category	III IEC 60664-1
Supply Voltage Limits	183-484 V AC
Mounting Support	35 mm symmetrical DIN rail conforming to IEC 60715
Nominal Output Current	5 A
Local Signalling	for relay ON LED (yellow)
Mechanical Durability	30000000 cycles
Housing Material	self-extinguishing plastic
Control Circuit Frequency	50...60 Hz +/- 10 %
Width	17.5 mm
Tightening Torque	0.6-1 N.m IEC 60947-1
Electrical Durability	10000 cycles
Run-Up Delay At Power-Up	650 ms
Supply Frequency	50/60 Hz +/- 10 %
Country of Origin	United States
Width	17.5 mm
Weight	0.13 kg
Range Of Product	Harmony Control Relays
Measurement Range	208...480 V AC
Switching Capacity In Va	1250 VA
Product Or Component Type	3-phase control relay
Relay Name	RM17TG
Contacts Type And Composition	2 C/O
Relay Type	control relay
Product Specific Application	for 3-phase supply
Time Delay Type	without
Relay Monitored Parameters	phase sequence phase failure detection (2 or more phase cut)
[Uc] Control Circuit Voltage	208...440 V
