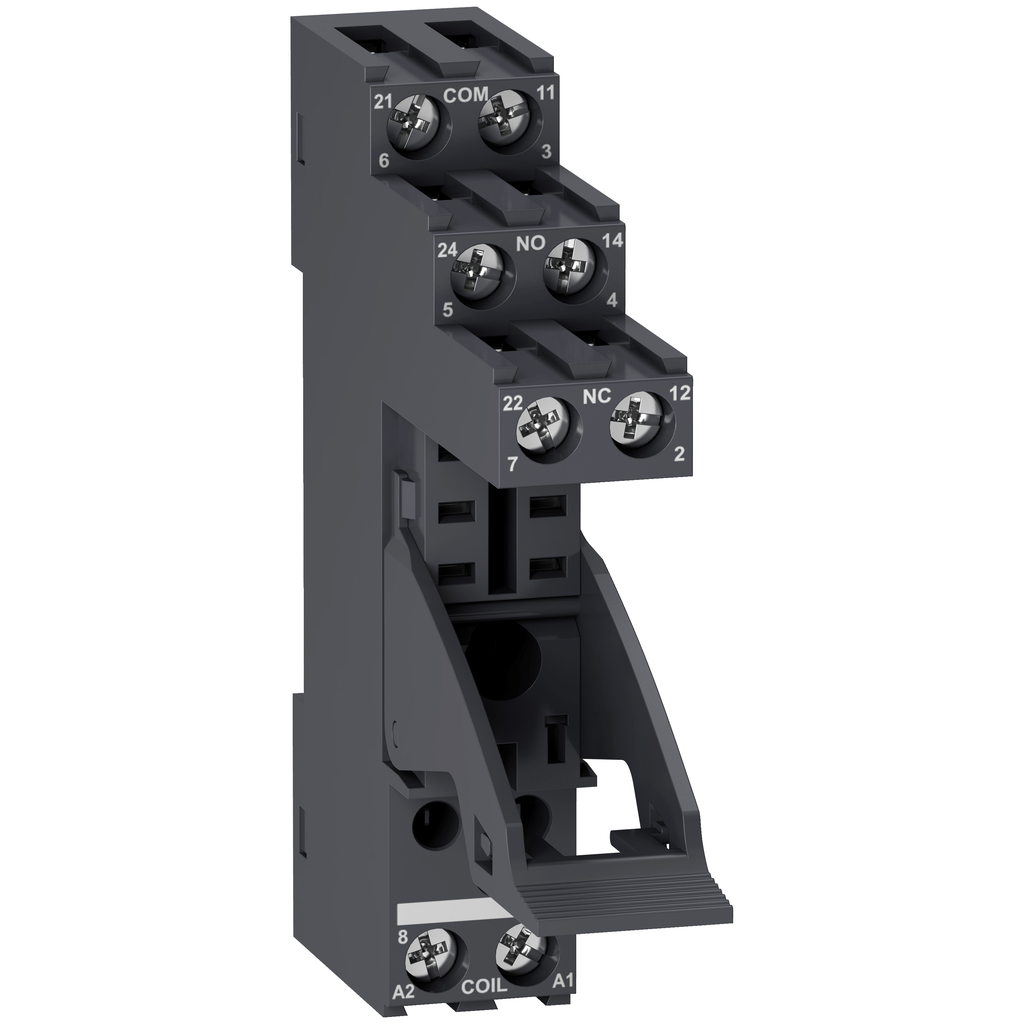

RGZE1S48M - socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, screw connec to rs, separate contact

RGZE1S48M

socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, screw connec to rs, separate contact

"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 2 C/O DPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime." 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	United States
Range Of Product	Harmony Electromechanical Relays
[Ui] Rated Insulation Voltage	250 V
Product Or Component Type	socket
Contacts Type And Composition	2 C/O
Product Compatibility	plug-in relay RXG 2 C/O
Screw Type	M3
[Ue] Rated Operational Voltage	250 V IEC 300 V UL
Pollution Degree	3
Contact Terminal Arrangement	separate
Connections - Terminals	screw terminals, 1 x 0.34...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end screw terminals, 2 x 0.34...2 x 1 mm² AWG 22...AWG 17) flexible with cable end screw terminals, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end screw terminals, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end
Wire Stripping Length	6-7 mm
Dielectric Strength	5 kV between coil and contact with reinforced insulation 3 kV between poles with basic insulation 3 kV between terminals and DIN rail with basic insulation
[Uimp] Rated Impulse Withstand Voltage	6 kV between coil and contact with reinforced insulation 4 kV between poles with basic insulation 4 kV between terminals and DIN rail with basic insulation
Overvoltage Category	III
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1406006EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	EAC CE CSA UL DNV-GL
Ambient Air Temperature For Operation	-40-70 °C
Standards	CSA C22.2 No 14 IEC 61984 UL 508
Relative Humidity	10-85 %
Ambient Air Temperature For Storage	-40-85 °C
Ip Degree Of Protection	IP20

socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, screw connec to rs, separate contact
