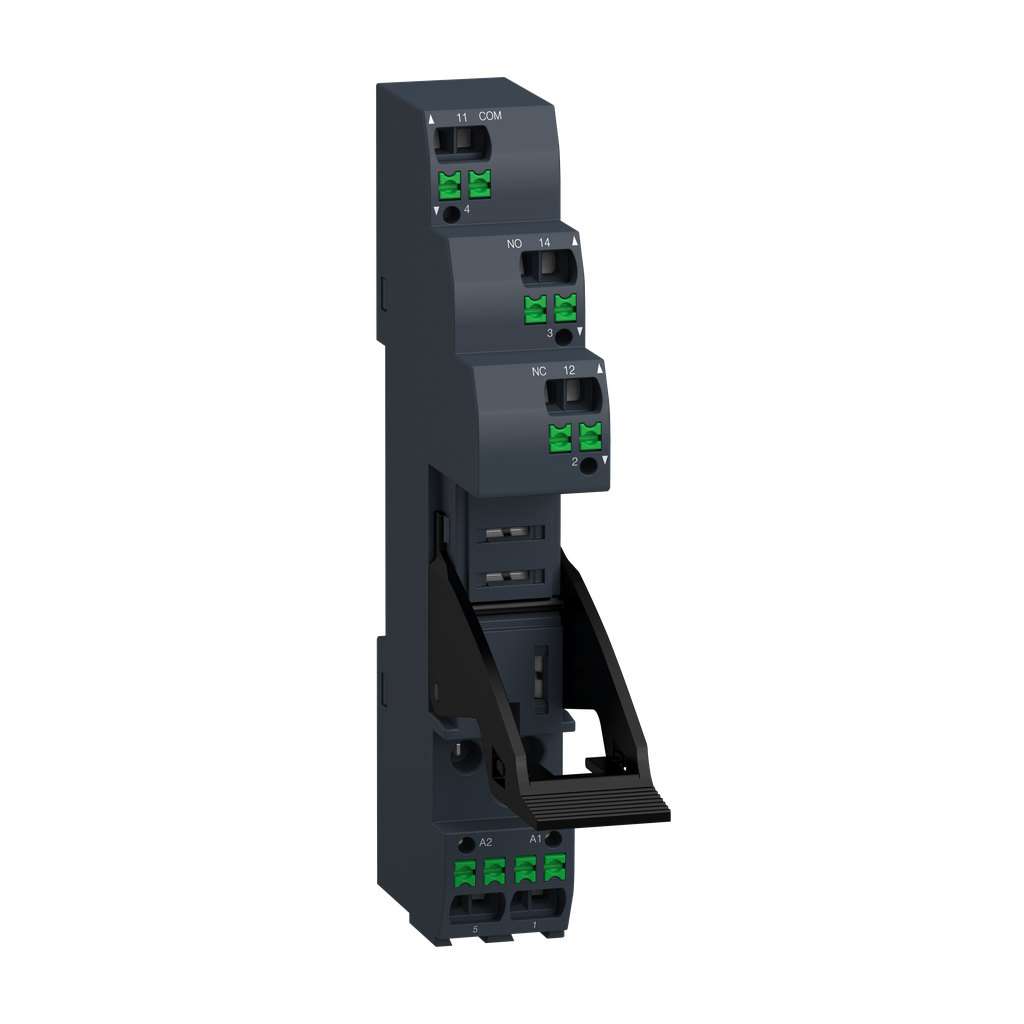

RGZE05P - push in socket with clamp, Harmony Electromechanical Relays, for RXG1 relays, 10A, push in terminals, separate contact

RGZE05P

push in socket with clamp, Harmony Electromechanical Relays, for RXG1 relays, 10A, push in terminals, separate contact

Add to Quote Catalogue

Specifications

Height	67 mm
[Ue] Rated Operational Voltage	250 V IEC 300 V UL
Pollution Degree	3
Shape Of Pin	flat
Length	98 mm
Contact Terminal Arrangement	separate
Net Weight	0.039 kg
Fixing Mode	clip-on (35 mm symmetrical DIN rail)
Connections - Terminals	spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Dielectric Strength	5 kV between coil and contact with reinforced insulation 3 kV between terminals and DIN rail with basic insulation
Width	16 mm
[Uimp] Rated Impulse Withstand Voltage	6 kV between coil and contact with reinforced insulation 4 kV between terminals and DIN rail with basic insulation
Overvoltage Category	III
Country of Origin	China
Length	98 mm
Width	16 mm
Height	67 mm
Weight	0.039 kg
Range Of Product	Harmony Electromechanical Relays
[Ui] Rated Insulation Voltage	250 V
Product Or Component Type	socket
Contacts Type And Composition	1 C/O
Product Compatibility	plug-in relay RXG 1 C/O
Device Short Name	RGZ
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CSA UL EAC DNV-GL
Ambient Air Temperature For Operation	-40-70 °C
Standards	IEC 61984
Marking	CE
Ambient Air Temperature For Storage	-40-85 °C
Ip Degree Of Protection	IP20
