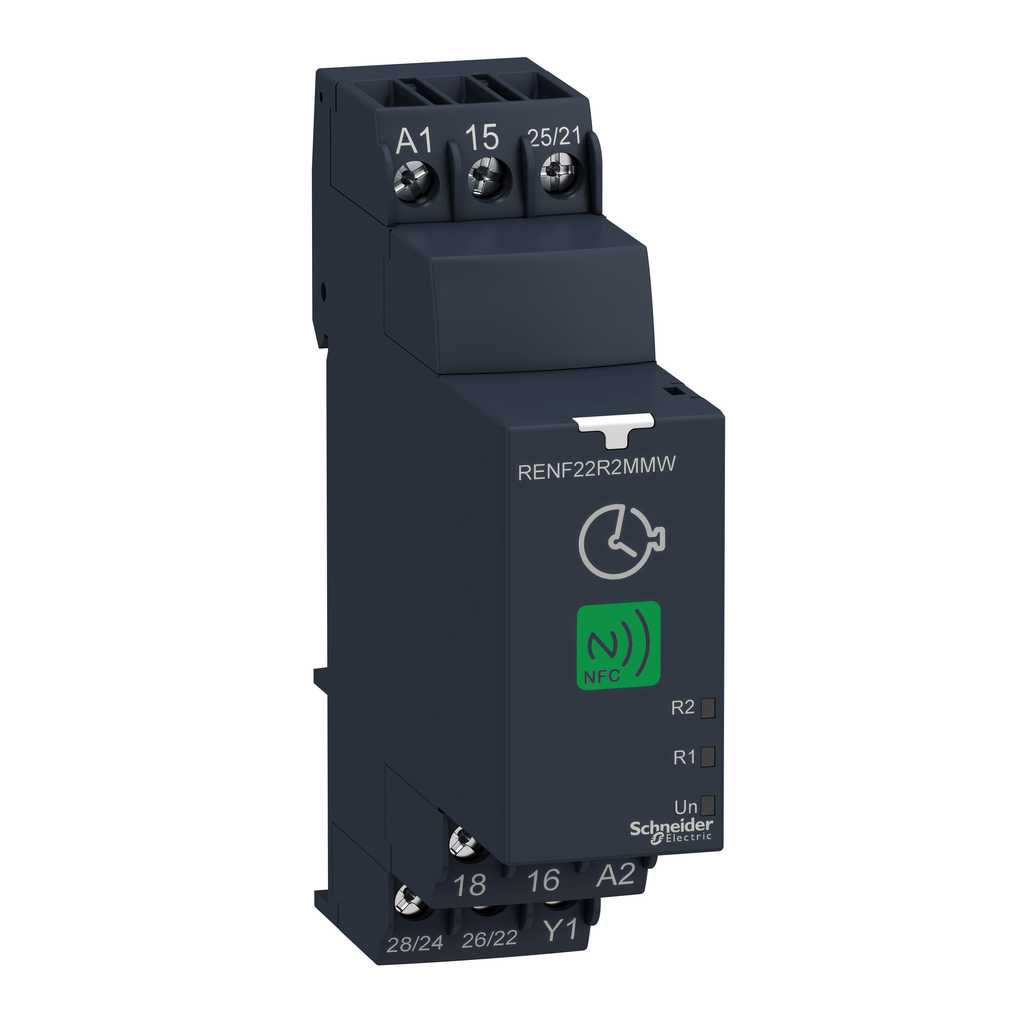

RENF22R2MMW - multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s to 999h asymmetrical on delay and off delay 24 to 240V AC DC

RENF22R2MMW

multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s to 999h asymmetrical on delay and off delay 24 to 240V AC DC

This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Number Of Functions	28
Power Consumption In W	1.5 W 240 V DC 0.6 W 24 V DC
Contacts Type And Composition	2 C/O timed contact, cadmium free 1 C/O timed and instantaneous contact, cadmium free
Discrete Output Type	relay
Setting Accuracy Of Time Delay	+/- 1 % 1...999 h 25 °C +/- 2 % 1...3600 s 25 °C +/- 20 ms 100 ms...10 s 25 °C +/- 30 ms 50...100 ms 25 °C
Creepage Distance	4 kV/3 IEC 60664-1
Maximum Delay Response	100 ms
Insulation Resistance	100 MOhm 500 V DC IEC 60664-1
Nominal Power	0.0002 mW
Power Consumption In Va	3-3 VA 240 V AC
Switching Capacity In Va	2000 VA
Minimum Pulse Duration	100 ms with load in parallel 60 ms no-load
Maximum Switching Current	8 A
Function Available	A- Power on-delay relay-2 C/O Ac- On-delay and off-delay relay w/ control signal-2 C/O Ad- Pulse delayed relay w/ control signal-2 C/O Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O Ak- Asymmetrical on-delay and off -delay relay w/ control signal-2 C/O At- Power on-delay relay w/ pause/summation (Y1)-2 C/O B- Single interval relay w/ control signal-2 C/O Bw- Double interval relay w/ control signal-2 C/O C- Off-delay relay w/ control signal-2 C/O D- Symmetrical flashing relay (starting pulse-off)-2 C/O Di- Symmetrical flashing relay (starting pulse-on)-2 C/O Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O H- Interval relay-2 C/O Ht- Interval relay w/ pause/summation (Y1)-2 C/O Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O N- Safe-guard relay-2 C/O O- Delayed Safe-guard relay-2 C/O P- Pulse delayed relay w/ fixed pulse length-2 C/O Pt- Pulse delayed relay w/ fixed pulse length and pause/summation-2 C/O Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1)-2 C/O TI- Bistable relay w/ control signal on-2 C/O Tt- Retriggerable bistable relay w/ control signal on-2 C/O W- Interval relay w/ control signal off-2 C/O L- Asymmetrical flashing relay (starting pulse-off)-2 C/O
Operating Distance	10 mm
Voltage Range	0.85...1.1 Un
Local Signalling	Un, green LED steady)power ON R1, amber LED steady)relay energised R2, amber LED steady)relay energised pairing, green LED steady)communication status Un, green LED fast blinking)diagnosis mode R1, amber LED blinking)timing in progress R2, amber LED blinking)timing in progress
Net Weight	0.0904 kg
[Uimp] Rated Impulse Withstand Voltage	5 kV 1.2/50 µs IEC 60664-1
Control Type	without test button
Voltage Drift	+/- 0.2 %/V
Reset Time	120 ms on de-energisation
Maximum Switching Voltage	250 V
Connections - Terminals	screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
[Us] Rated Supply Voltage	24...240 V AC/DC
Temperature Drift	+/- 0.05 %/°C
Time Delay Range	0.05 s...999 h
Minimum Switching Current	10 mA 5 V
Overvoltage Category	III IEC 60664-1
Input Voltage	<= 2.4 V
Mounting Support	35 mm DIN rail conforming to IEC 60715
Nominal Output Current	8 A
Electrical Durability	100000 cycles for resistive load, 8 A at 250 V, AC
Mechanical Durability	10000000 cycles
Housing Material	self-extinguishing
Safety Reliability Data	MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C
Mounting Position	any position
Width	22.5 mm
Time Delay Type	power on-delay on-delay and off-delay pulse delay asymmetrical on-delay and off-delay interval off-delay symmetrical flashing safe-guard star-delta asymmetrical flashing bistable
Product Compatibility	NFC enabled mobile device
Tightening Torque	0.6-1 N.m IEC 60947-1 5.3-8.8 lbf.in IEC 60947-1
Maximum Operating Frequency	13.56 MHz
Supply Frequency	50...60 Hz +/- 5 %
Repeat Accuracy	+/- 0.2 % 10 s...999 h +/- 0.5 % 100 ms...10 s +/- 0.7 % 50...100 ms
Operating System	iOSversion >= V14.5 Androidversion >= V7.0
Product Certifications	CE CSA KC UL CCC EAC DNV-GL
Ambient Air Temperature For Operation	-20-60 °C
Standards	IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-4 EN 61812-1 IEC 61000-6-3
Immunity To Microbreaks	10 ms
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 radiated emission class B conforming to EN 55022 conducted emission class A conforming to EN 55022 electromagnetic field immunity test - test level: 3 V/m level 2 (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 electromagnetic field immunity test - test level: 1 V/m level 1 (2...2.7 GHz) conforming to IEC 61000-4-3
Dielectric Strength	2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply with basic insulation basic insulation
Shock Resistance	15 gn not operating 11 ms IEC 60068-2-27 5 gn in operation 11 ms IEC 60068-2-27
Vibration Resistance	20 m/s² 10-150 Hz)IEC 60068-2-6
Pollution Degree	3 IEC 60664-1
Directives	2014/35/EU - low voltage directive 2014/53/EU - radio equipment directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % 25-55 °C
Ip Degree Of Protection	IP40 housing: conforming to IEC 60529 IP40 front face: conforming to IEC 60529 IP20 terminals: conforming to IEC 60529
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1401008EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1401008EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	United States
Width	22.5 mm
Weight	0.0904 kg
Range Of Product	Harmony Timer Relays
Software Designation	Ecostruxure Industrial Device downloadable from Google Play store or Apple Store)
Product Or Component Type	NFC timer relay
Device Short Name	RENF22
