REL52813

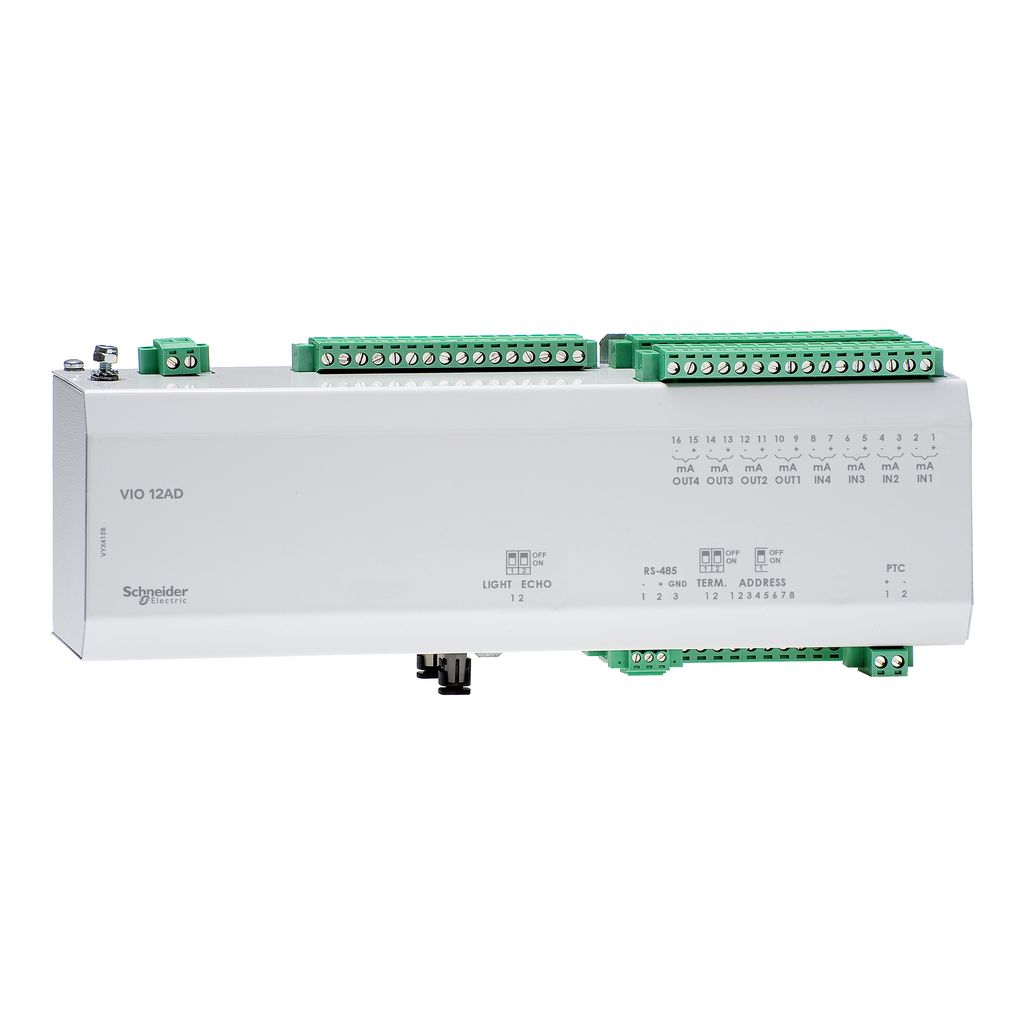

Easergy P3 accessory VIO12ACSE 24VDC RTD module 12 RTD inputs 4/4 mA in/out
This analog temperature module for easergy P3 is used to connect temperature sensors from the field to the Easergy P3 devices using a communication port RS485 by twist-pair or fiber optic. The modules have 4 analog input and 4 output to use in the special controls functions. The module accepts supply voltage 24 VDC. The degree of protection is IP20. The module can be mounted using DIN-rail.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Communication Port Support |
|
|---|---|
| Analogue Input Number | 4 |
| Temperature Probe Type | Pt 100, Ni 100, Ni 120, Cu 10 |
| Analogue Output Number | 4 |
| Number Of Inputs |
|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1411007_V1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1411007_V1 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Operation | 0-55 °C |
| Country of Origin | United States |
| [Us] Rated Supply Voltage | 24 V DC |
| Range Of Product | Easergy P3 |
| Mounting Support |
|
| Product Or Component Type | analog temperature module |
