REL52810

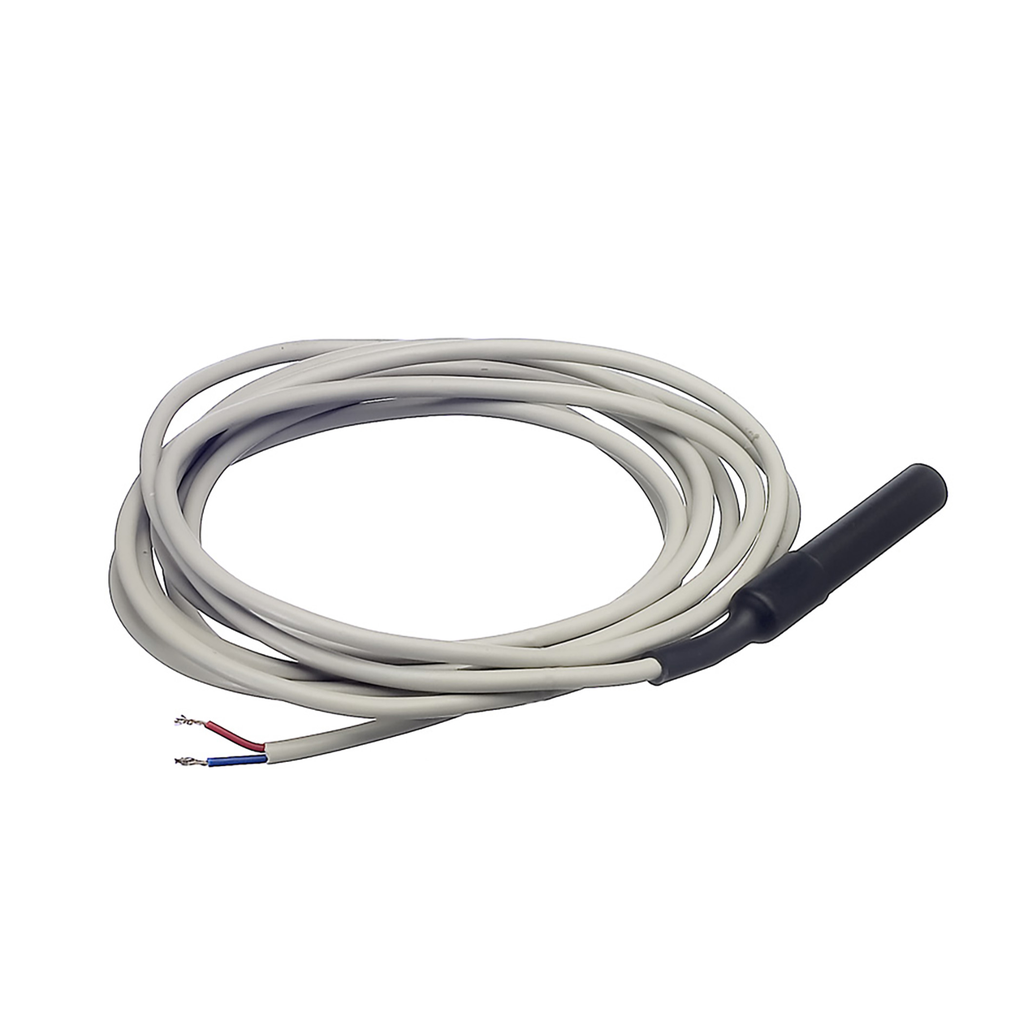

Arc sensor, 6m, shielded, pipe sensor
Specifications
| Country of Origin | Finland |
|---|---|
| Length | 6 m |
| Width | 62 mm |
| Height | 11 mm |
| Weight | 0.4 g |
| Range Of Product |
|
| Product Or Component Type | arc sensor |
| Type Of Cable | shielded cable |
| [Sn] Nominal Sensing Distance | 400-1100 nm |
| Quantity Per Set | 1 piece |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1411007_V1 |
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1411007_V1 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 11 mm |
| Variant | pipe |
| Cable Length | 6 m |
| Material | plastic |
| Net Weight | 0.4 g |
| Light Sensitivity | 8000-10000 lux |
| Response Time | 1 ms |
| Width | 62 mm |
| Depth | 11 mm |
| Ambient Air Temperature For Operation | -25-70 °C |
| Pollution Degree | 2 |
