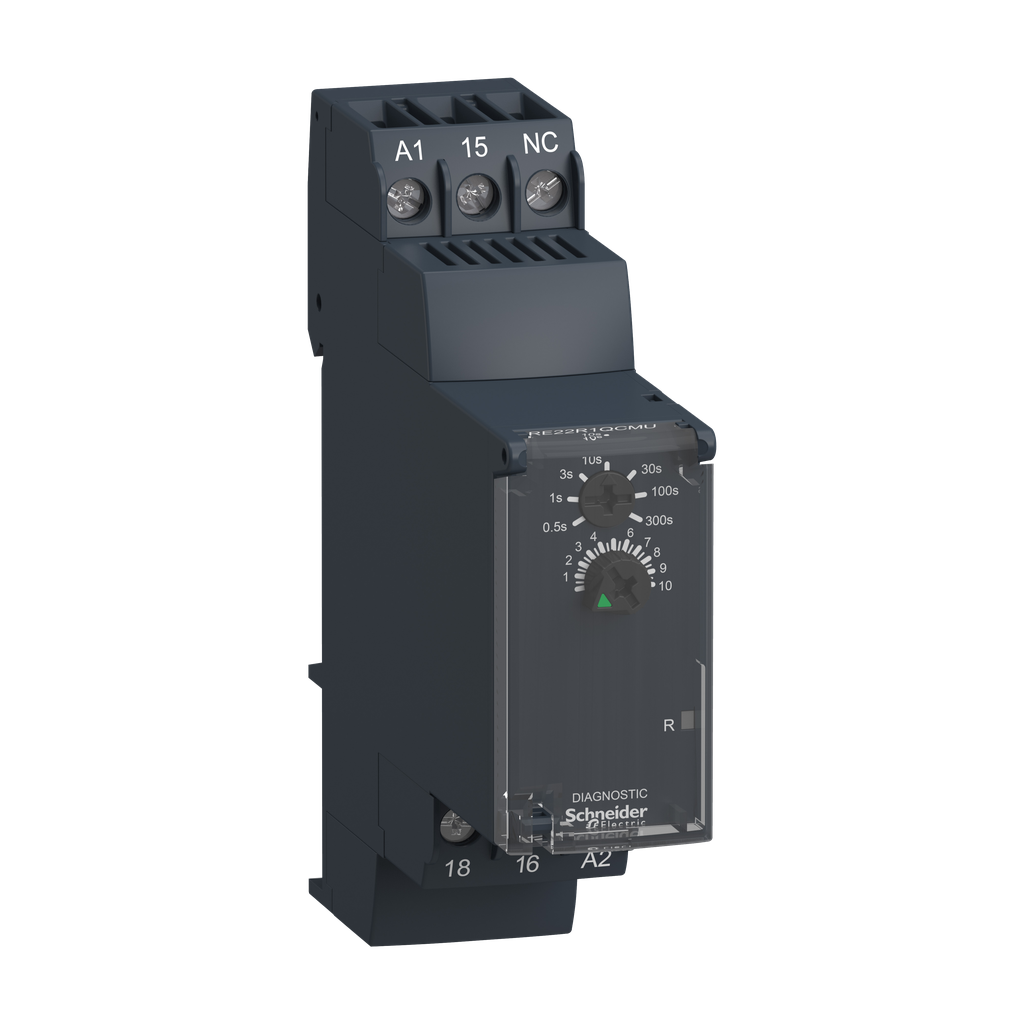

RE22R1QCMU
single function relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300s, star delta, 24V DC or 24...240V AC DC
"This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours." "This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0 0 0 0
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -20-60 °C |
| Standards |
|
| Electromagnetic Compatibility |
|
| Dielectric Strength | 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1 |
| Shock Resistance |
|
| Vibration Resistance | 20 m/s² 10-150 Hz)IEC 60068-2-6 |
| Pollution Degree | 3 IEC 60664-1 |
| Directives |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 95-95 % 25-55 °C |
| Ip Degree Of Protection |
|
| Number Of Functions | 1 |
| Power Consumption In W | 0.6 W 24 V DC |
| Safety Reliability Data |
|
| Contacts Type And Composition | 1 C/O timed contact, cadmium free |
| Setting Accuracy Of Time Delay | +/- 10 % of full scale 25 °C IEC 61812-1 |
| Creepage Distance | 4 kV/3 IEC 60664-1 |
| Maximum Delay Response | 100 ms |
| Insulation Resistance | 100 MOhm 500 V DC IEC 60664-1 |
| Immunity To Microbreaks | 10 ms |
| Power Consumption In Va | 35-35 VA 240 V AC |
| Switching Capacity In Va | 2000 VA |
| Maximum Switching Current | 8 A |
| Function Available | Qc-Star-delta relay (1 CO output)-1 C/O |
| Voltage Range | 0.85...1.1 Us |
| Net Weight | 0.08 kg |
| Mounting Position | any position |
| Control Type | with test button |
| Voltage Drift | +/- 0.2 %/V |
| Reset Time | 120 ms on de-energisation |
| Maximum Switching Voltage | 250 V AC |
| Connections - Terminals |
|
| [Us] Rated Supply Voltage |
|
| Temperature Drift | +/- 0.05 %/°C |
| Time Delay Range |
|
| Minimum Switching Current | 10 mA 5 V DC |
| Overvoltage Category | III IEC 60664-1 |
| Input Voltage | <= 2.4 V |
| Mounting Support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical Durability |
|
| Mechanical Durability | 10000000 cycles |
| Housing Material | self-extinguishing |
| Status Led |
|
| [Uimp] Rated Impulse Withstand Voltage | 5 kV 1.2-50 µs IEC 60664-1 |
| Width | 22.5 mm |
| Time Delay Type | star-delta |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Supply Frequency | 50...60 Hz +/- 5 % |
| Repeat Accuracy | +/- 0.5 % IEC 61812-1 |
| Country of Origin | Indonesia |
| Width | 22.5 mm |
| Weight | 0.08 kg |
| Discrete Output Type | relay |
| Range Of Product | Harmony Timer Relays |
| Product Or Component Type | modular timing relay |
| Nominal Output Current | 8 A |
| Device Short Name | RE22 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1401008EN |
| Sustainable Offer Status | Green Premium product |
