RC816F100CH - Meter mains, Homeline, CSED, ringless socket, 100A, surface mount, maximum 8 spaces, 16 circuits, horn bypass

RC816F100CH

Meter mains, Homeline, CSED, ringless socket, 100A, surface mount, maximum 8 spaces, 16 circuits, horn bypass

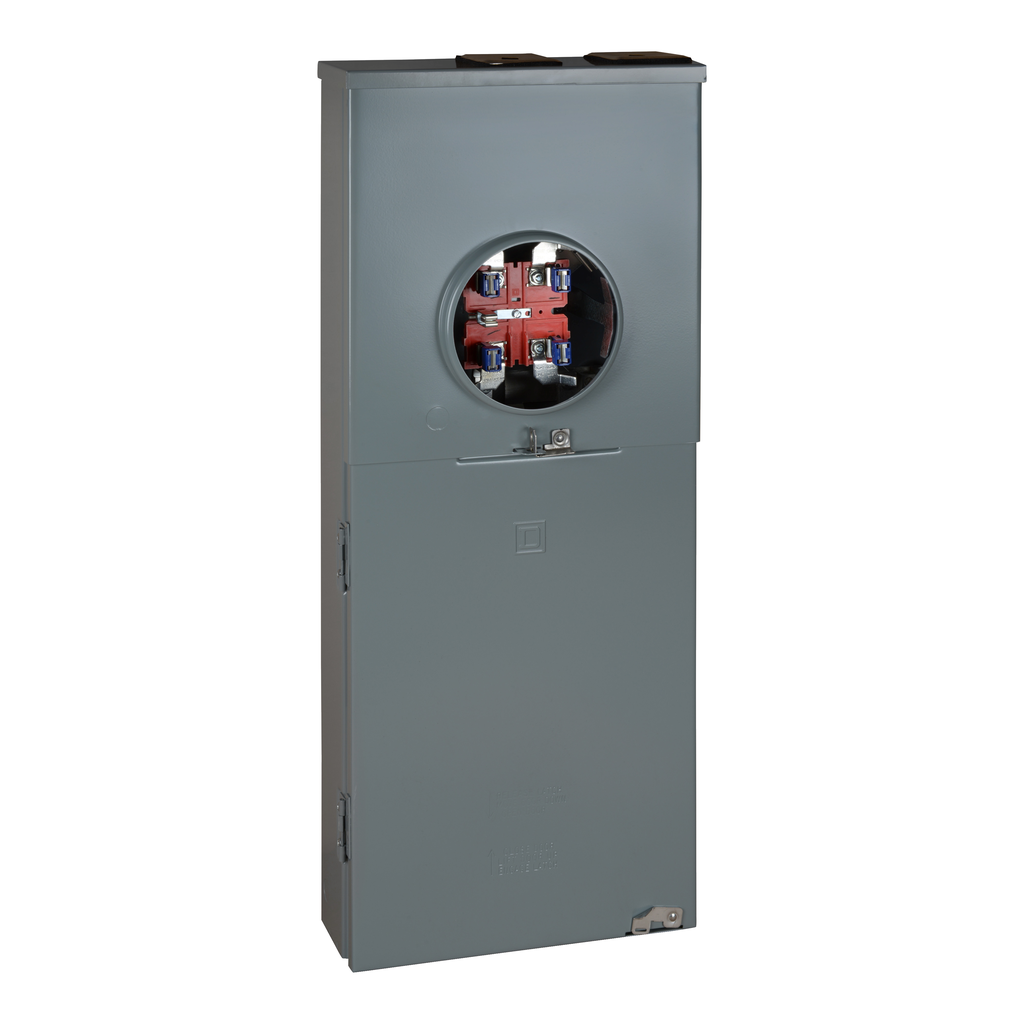

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This service entrance meter main is supplied with feed thru lugs and has provisions for branch circuit breakers This Homeline combination service entrance meter main unit has a ringless meter socket with horn bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2100VH which has a maximum rating of 100 A. Device has a 22 kA short circuit current rating. Load center has 8 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 35.13 inches tall, 14.37 inches wide and 4.67 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 12 AWG to 2/0 AWG copper or aluminum wire. This Homeline combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL E-6294
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	35.13 in
Tightening Torque	main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper service ground 50 lb.in, AWG 14...AWG 2/0, copper service ground 50 lb.in, AWG 12...AWG 2/0, aluminium branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium Cover 10 lb.in
Branch Circuit Breaker Rated Current	100 A
Bypass Type	horn bypass
Service Feed Location	OH UG
Bus Rated Current	200.0 A
Electrical Connection	lugs, line side feed-thru lugs, service ground
Number Of Circuits	16
Number Of Spaces	8
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	8
Hub Type	A
Meter Socket Type	ringless
Service Disconnect Rated Current	100 A
Line Rated Current	100 A
Awg Gauge	AWG 6...350 kcmil aluminium/copper)line side AWG 12...AWG 2/0 aluminium/copper)service ground
Width	14.37 in
Depth	4.67 in
Network Number Of Phases	1
Device Composition	service disconnect (factory installed)
Device Mounting	surface
Country of Origin	Mexico
Width	14.37 in
Height	35.13 in
Range Of Product	Homeline
Product Or Component Type	Meter Mains

Meter mains, Homeline, CSED, ringless socket, 100A, surface mount, maximum 8 spaces, 16 circuits, horn bypass
