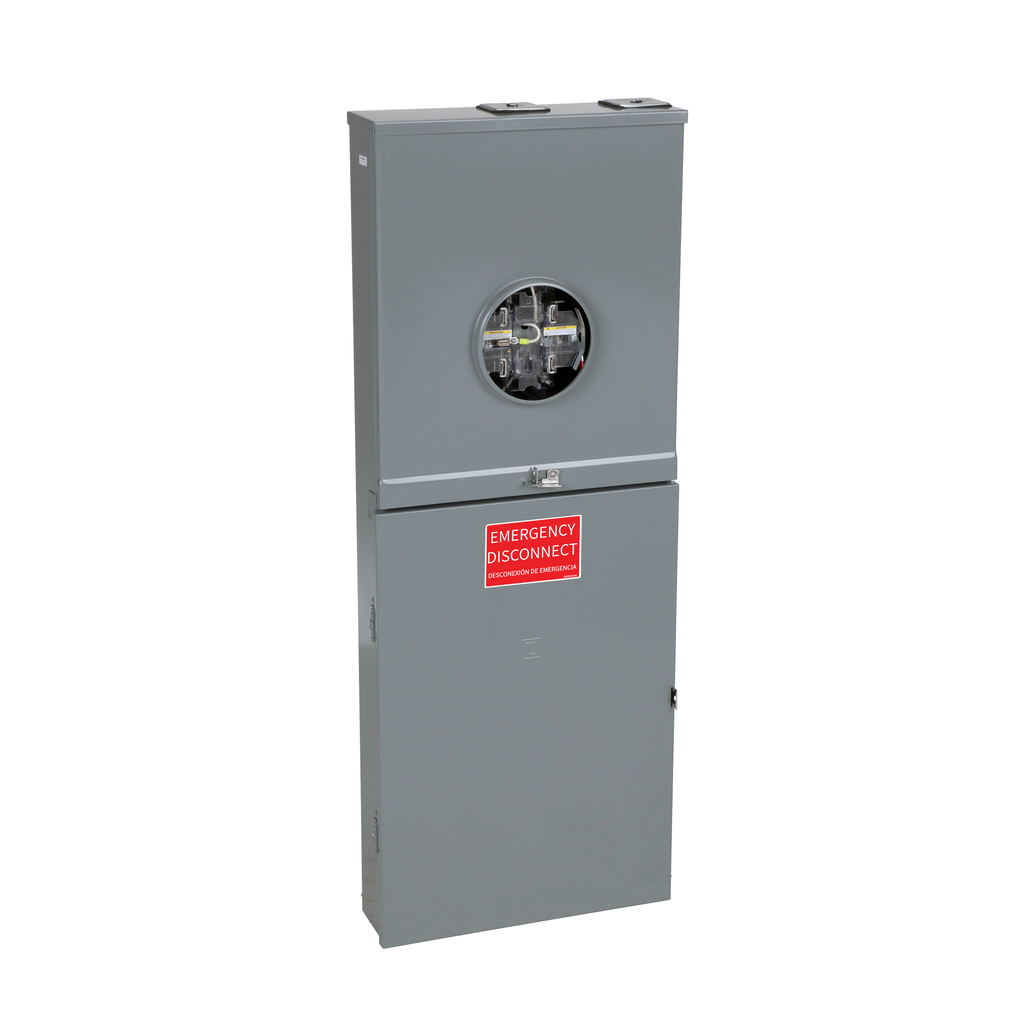

RC3040M200SL
All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 40 circuits, 22kA SCCR, OH, UG, lever bypass
The Square D® Load Centers and Combination Service Entrance Devices, RC3040M200SL, meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment, meets EUSERC standards .
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 48.62 in |
|---|---|
| Tightening Torque |
|
| Branch Circuit Breaker Rated Current | 200 A |
| Bypass Type | lever bypass |
| Service Feed Location |
|
| Bus Rated Current | 200.0 A |
| Electrical Connection |
|
| Number Of Circuits | 40 |
| Number Of Spaces | 30 |
| Short-Circuit Current | 22 kA |
| Number Of Tandem Circuit Breakers | 10 |
| Service Disconnect Rated Current | 200 A |
| Line Rated Current | 200 A |
| Width | 18.35 in |
| Awg Gauge |
|
| Depth | 6.05 in |
| Device Composition | service disconnect (factory installed) |
| Device Mounting | surface |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Warranty | 18 months |
| Country of Origin | United States |
| Width | 18.35 in |
| Height | 48.62 in |
| Range Of Product | Homeline |
| Product Or Component Type | All-In-One |
| Hub Type | A |
| Meter Socket Type | ringless |
