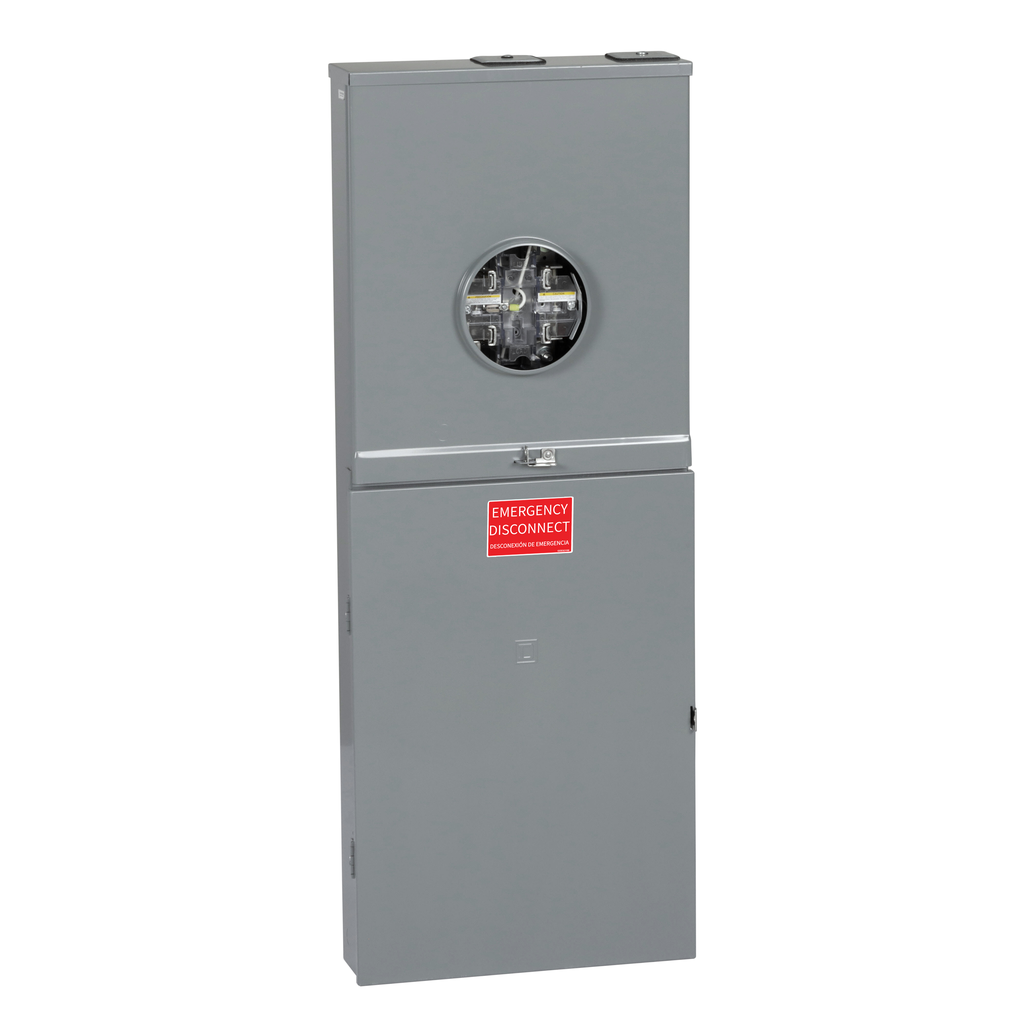

RC3040M150SL - All in one, Homeline, CSED, ringless socket, 200A, surface mount, 30 spaces, 40 circuits, 22kA SCCR, lever bypass

RC3040M150SL

All in one, Homeline, CSED, ringless socket, 200A, surface mount, 30 spaces, 40 circuits, 22kA SCCR, lever bypass

Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringless meter socket with lever bypass. This unit can be feed from an overhead or underground service. The service disconnect has a HOM2100 with a maximum rating of 100 A. Device has a 10 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 20.79 inches tall, 13.46 inches wide and 4.56 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	48.62 in
Tightening Torque	main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper service ground 40 lb.in, AWG 8, aluminium/copper branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Branch Circuit Breaker Rated Current	150 A
Bypass Type	lever bypass
Service Feed Location	OH UG
Bus Rated Current	200.0 A
Electrical Connection	lugs, line side lugs, service ground
Number Of Circuits	40
Number Of Spaces	30
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	10
Service Disconnect Rated Current	150 A
Line Rated Current	200 A
Width	18.35 in
Awg Gauge	AWG 6...350 kcmil (aluminium/copper) line side AWG 8...AWG 2/0 (aluminium/copper) service ground
Depth	6.05 in
Device Composition	service disconnect (factory installed)
Device Mounting	surface
Country of Origin	Mexico
Width	18.35 in
Height	48.62 in
Range Of Product	Homeline
Product Or Component Type	All-In-One
Hub Type	A
Meter Socket Type	ringless
Warranty	18 months

All in one, Homeline, CSED, ringless socket, 200A, surface mount, 30 spaces, 40 circuits, 22kA SCCR, lever bypass
