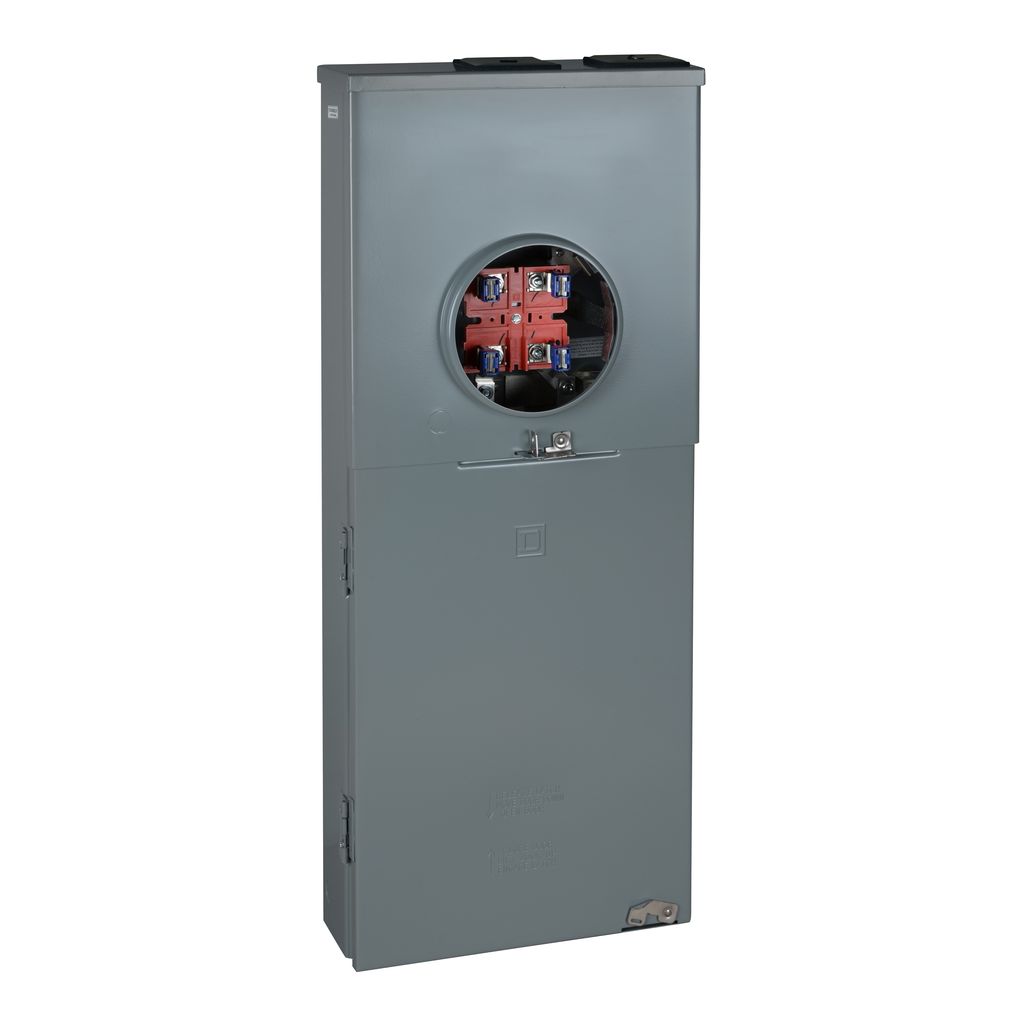

RC2040M200CGP - All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 20 spaces, 40 circuits, 22kA SCCR, OH, UG, no bypass, generator

RC2040M200CGP

All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 20 spaces, 40 circuits, 22kA SCCR, OH, UG, no bypass, generator

Add to Quote Catalogue

Specifications

Height	36.69 in
Tightening Torque	main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper service ground 50 lb.in, AWG 14...AWG 2/0, copper service ground 50 lb.in, AWG 12...AWG 2/0, aluminium branch lugs 50 lb.in, AWG 14...AWG 1/0, copper branch lugs 50 lb.in, AWG 12...AWG 1/0, aluminium branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Branch Circuit Breaker Rated Current	200 A
Bypass Type	no bypass
Service Feed Location	UG OH outdoor
Bus Rated Current	200.0 A
Electrical Connection	lugs, line side lugs, service ground
Number Of Circuits	40
Number Of Spaces	20
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	20
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Width	14.37 in
Awg Gauge	AWG 6...350 kcmil (aluminium/copper) line side AWG 8...AWG 2/0 (aluminium/copper) service ground
Depth	5.07 in
Device Composition	service disconnect (factory installed)
Device Mounting	surface
Country of Origin	United States
Width	14.37 in
Height	36.69 in
Range Of Product	QO
Product Or Component Type	All-In-One
Hub Type	A
Meter Socket Type	ringless
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions

All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 20 spaces, 40 circuits, 22kA SCCR, OH, UG, no bypass, generator
