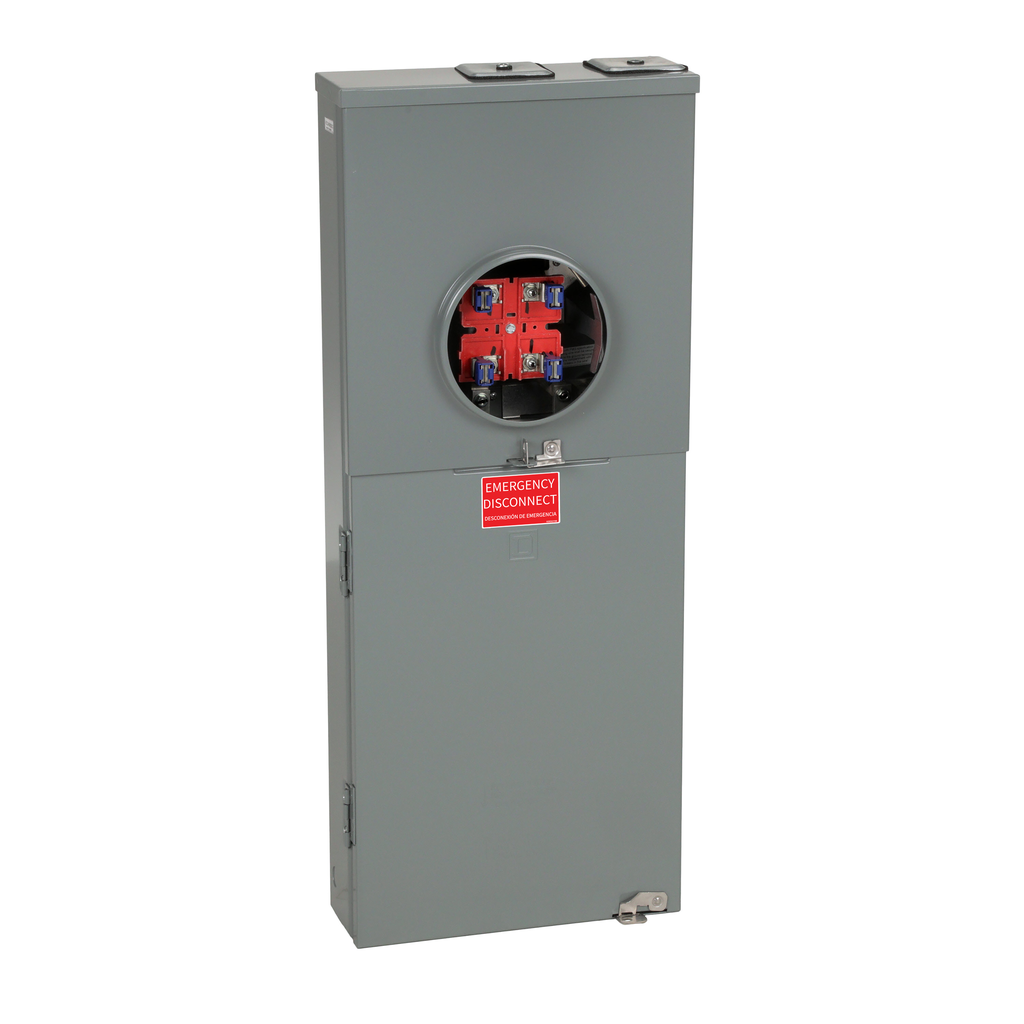

RC2040M200C – All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 20 spaces, 40 circuits, 22kA SCCR, OH, UG, no bypass
RC2040M200C
All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 20 spaces, 40 circuits, 22kA SCCR, OH, UG, no bypass

The Square D® Load Centers and Combination Service Entrance Devices, RC2040M200C, meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment, meets EUSERC standards .

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1407020EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile N/A
Eu Rohs Directive Compliant with Exemptions
Height 36.69 in
Tightening Torque
  • main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper
  • service ground 50 lb.in, AWG 14...AWG 2/0, copper
  • service ground 50 lb.in, AWG 12...AWG 2/0, aluminium
  • branch lugs 50 lb.in, AWG 14...AWG 1/0, copper
  • branch lugs 50 lb.in, AWG 12...AWG 1/0, aluminium
  • branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper
  • branch lugs 25 lb.in, AWG 8, aluminium/copper
  • branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper
  • branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper
  • Cover 10 lb.in
Branch Circuit Breaker Rated Current 200 A
Bypass Type no bypass
Service Feed Location
  • OH
  • UG
Bus Rated Current 200.0 A
Electrical Connection
  • lugs, line side
  • lugs, service ground
Number Of Circuits 40
Number Of Spaces 20
Short-Circuit Current 22 kA
Number Of Tandem Circuit Breakers 20
Service Disconnect Rated Current 200 A
Line Rated Current 200 A
Width 14.37 in
Awg Gauge
  • AWG 6...350 kcmil (aluminium) line side
  • AWG 6...350 kcmil (copper) line side
  • AWG 12...AWG 2/0 (aluminium) service ground
  • AWG 12...AWG 2/0 (copper) service ground
Depth 5.07 in
Device Composition service disconnect (factory installed)
Device Mounting surface
Country of Origin Mexico
Width 14.37 in
Height 36.69 in
Range Of Product Homeline
Product Or Component Type All-In-One
Hub Type A
Meter Socket Type ringless
Warranty 18 months
