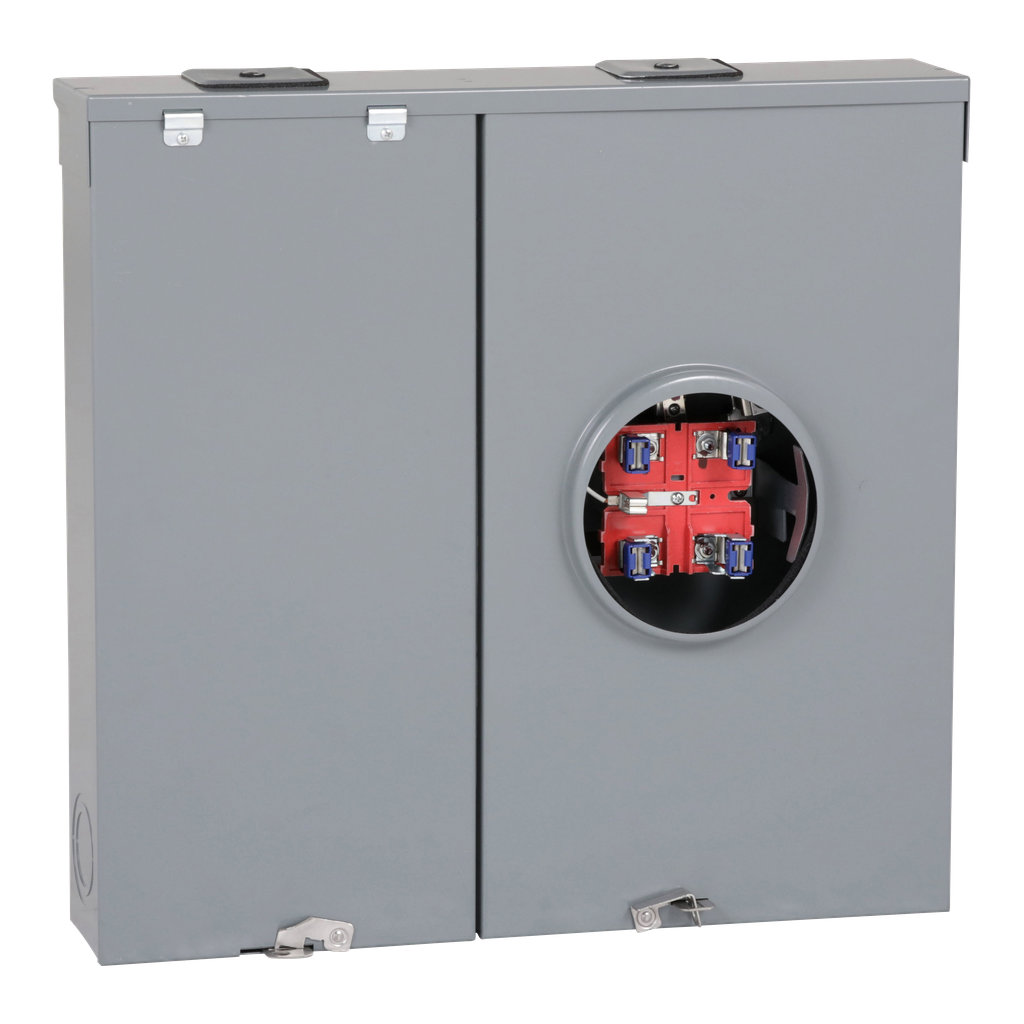

Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, no bypass
Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ringless type, no bypass, and combination overhead/underground feet. With a current rating of 400A, this product has a short circuit current rating of 25kA. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing. Rated for the Florida Meter Group.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 24.04 in |
| Height | 23.03 in |
| Range Of Product | QO |
| Product Or Component Type | Meter Mains |
| Height | 23.03 in |
| Tightening Torque |
|
| Bypass Type | no bypass |
| Service Feed Location |
|
| Bus Rated Current | 200.0 A |
| Marking | florida metering group |
| Electrical Connection |
|
| Number Of Circuits | 0 |
| Number Of Spaces | 0 |
| Short-Circuit Current | 22 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Hub Type | A |
| Meter Socket Type | ringless |
| Service Disconnect Rated Current | 200 A |
| Line Rated Current | 200 A |
| Awg Gauge |
|
| Width | 24.04 in |
| Depth | 4.67 in |
| Network Number Of Phases | 1 |
| Device Composition | service disconnect (ordered separately) |
| Device Mounting | surface (outdoor) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UL E-6294 |
