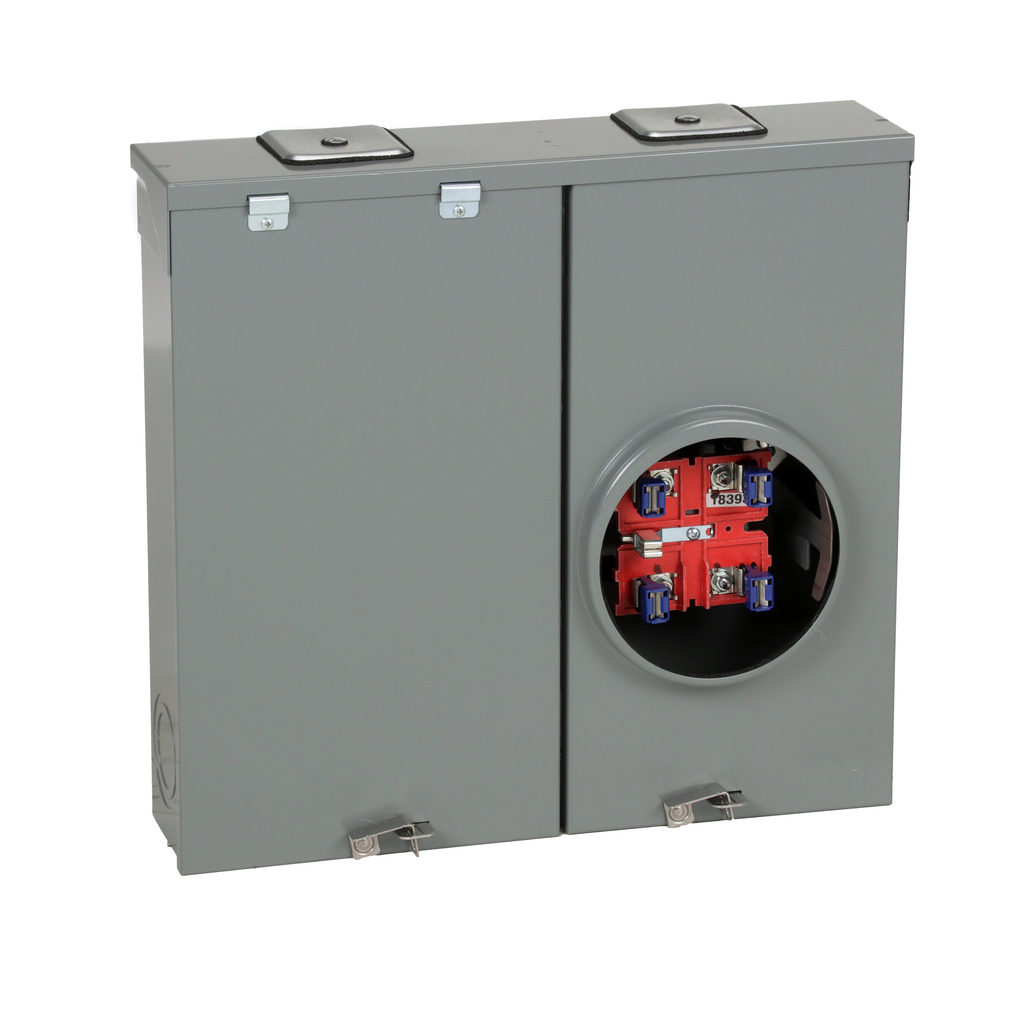

RC200S - Meter mains, QO, CSED, ringless socket, 200A, surface mount, no bypass

RC200S

Meter mains, QO, CSED, ringless socket, 200A, surface mount, no bypass

The Square D® Load Centers and Combination Service Entrance Devices, RC200S. Enclosure mounting style performed as surface mount only. This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior main lug (service disconnects field installed). Meter Socket has no By-pass.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL E-6294
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	18.23 in
Tightening Torque	main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper service ground 40 lb.in, AWG 8, copper Cover 10 lb.in
Bypass Type	no bypass
Service Feed Location	OH UG
Electrical Connection	lugs, line side lugs, service ground
Number Of Circuits	0
Number Of Spaces	0
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	0
Hub Type	A
Meter Socket Type	ringless
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Awg Gauge	AWG 6...300 kcmil aluminium/copper)line side AWG 8...AWG 2/0 2 aluminium/copper)service ground
Width	19.58 in
Depth	4.67 in
Network Number Of Phases	1
Device Composition	service disconnect (ordered separately)
Device Mounting	surface
Country of Origin	Mexico
Width	19.58 in
Height	18.23 in
Range Of Product	QO
Product Or Component Type	Meter Mains

Meter mains, QO, CSED, ringless socket, 200A, surface mount, no bypass
