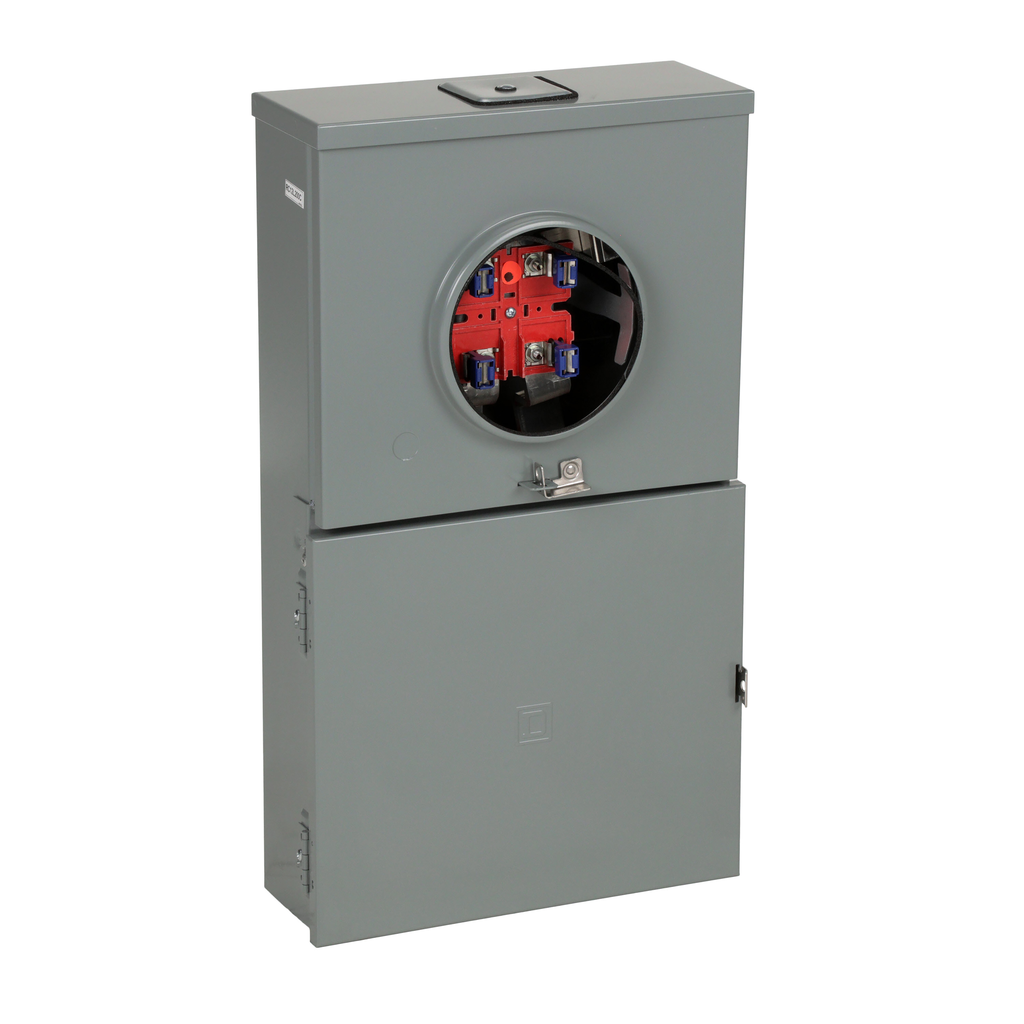

RC12L200C - Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass

RC12L200C

Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass

The Square D® Load Centers and Combination Service Entrance Devices, RC12L200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior main lug (service disconnects field installed). Meter Socket has no By-pass. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 50 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.60 inches. This surge protection device is CSA certified

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL E-6294
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	26.16 in
Tightening Torque	main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper lugs 250 lb.in, AWG 4...300 kcmil, aluminium/copper service ground 50 lb.in, AWG 14...AWG 2/0, copper service ground 50 lb.in, AWG 12...AWG 2/0, aluminium branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium Cover 10 lb.in
Bypass Type	no bypass
Service Feed Location	OH UG
Bus Rated Current	200.0 A
Electrical Connection	lugs, line side lugs, service ground
Number Of Circuits	0
Number Of Spaces	12
Short-Circuit Current	10 kA
Number Of Tandem Circuit Breakers	0
Hub Type	A
Meter Socket Type	ringless
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Awg Gauge	AWG 6...350 kcmil aluminium/copper)line side AWG 12...AWG 2/0 aluminium/copper)service ground
Width	14.89 in
Depth	6.10 in
Network Number Of Phases	1
Device Composition	service disconnect (ordered separately)
Device Mounting	surface
Country of Origin	United States
Width	14.89 in
Height	26.16 in
Range Of Product	Homeline
Product Or Component Type	Meter Mains

Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 12 spaces, no bypass
