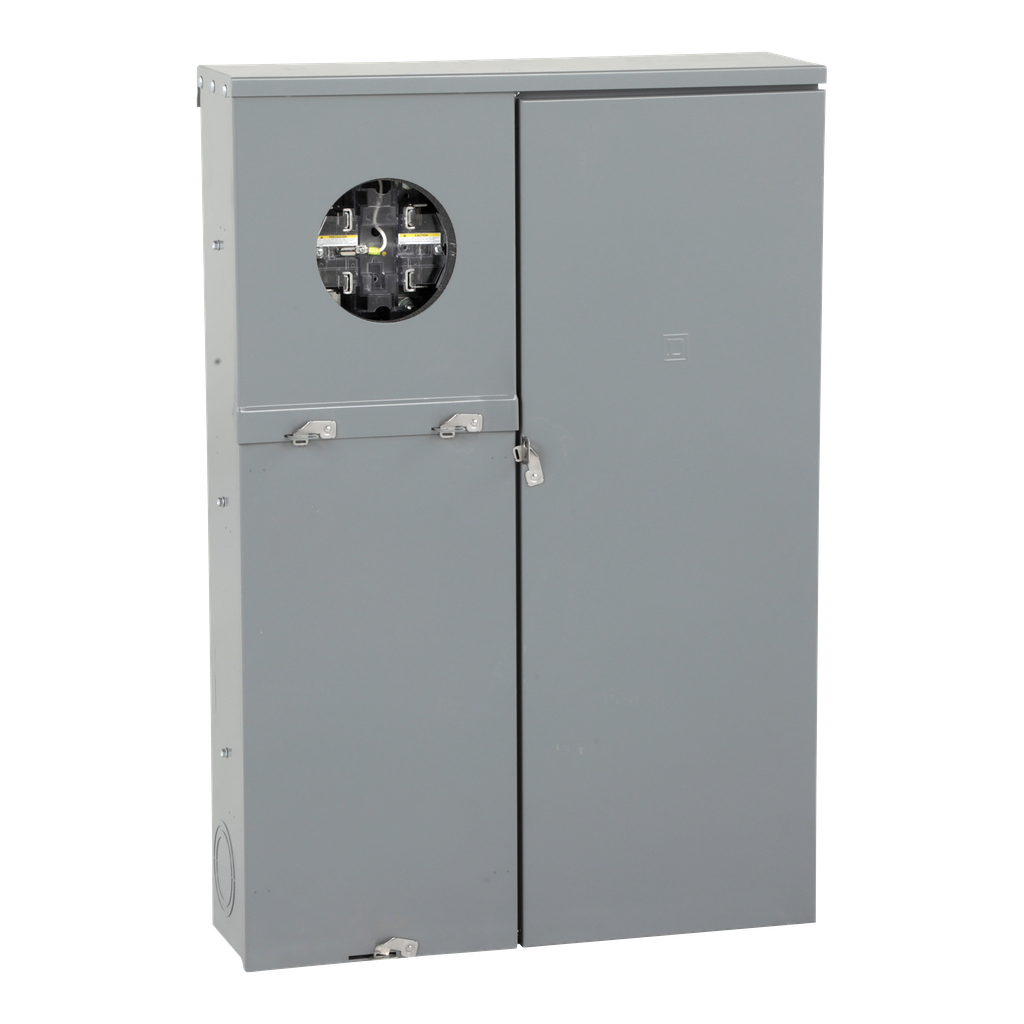

QU816D400CLX - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

QU816D400CLX

Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ringless type, class 320 socket with lever bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL E-6294
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2212001
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	43.00 in
Branch Circuit Breaker Rated Current	200 A
Bypass Type	lever bypass
Service Feed Location	UG
Bus Rated Current	200.0 A
Electrical Connection	studs, line side feed-thru lugs, service ground
Number Of Circuits	16
Number Of Spaces	8
Short-Circuit Current	25 kA
Number Of Tandem Circuit Breakers	8
Hub Type	A-L
Meter Socket Type	ringless
Service Disconnect Rated Current	200 A
Line Rated Current	400 A
Awg Gauge	AWG 4...250 kcmil aluminium/copper)service ground
Width	28.25 in
Depth	7.87 in
Network Number Of Phases	1
Device Composition	service disconnect (factory installed)
Device Mounting	surface semi flush with field installed flange kit
Country of Origin	Mexico
Width	28.25 in
Height	43.00 in
Range Of Product	QO
Product Or Component Type	Meter Mains

Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
