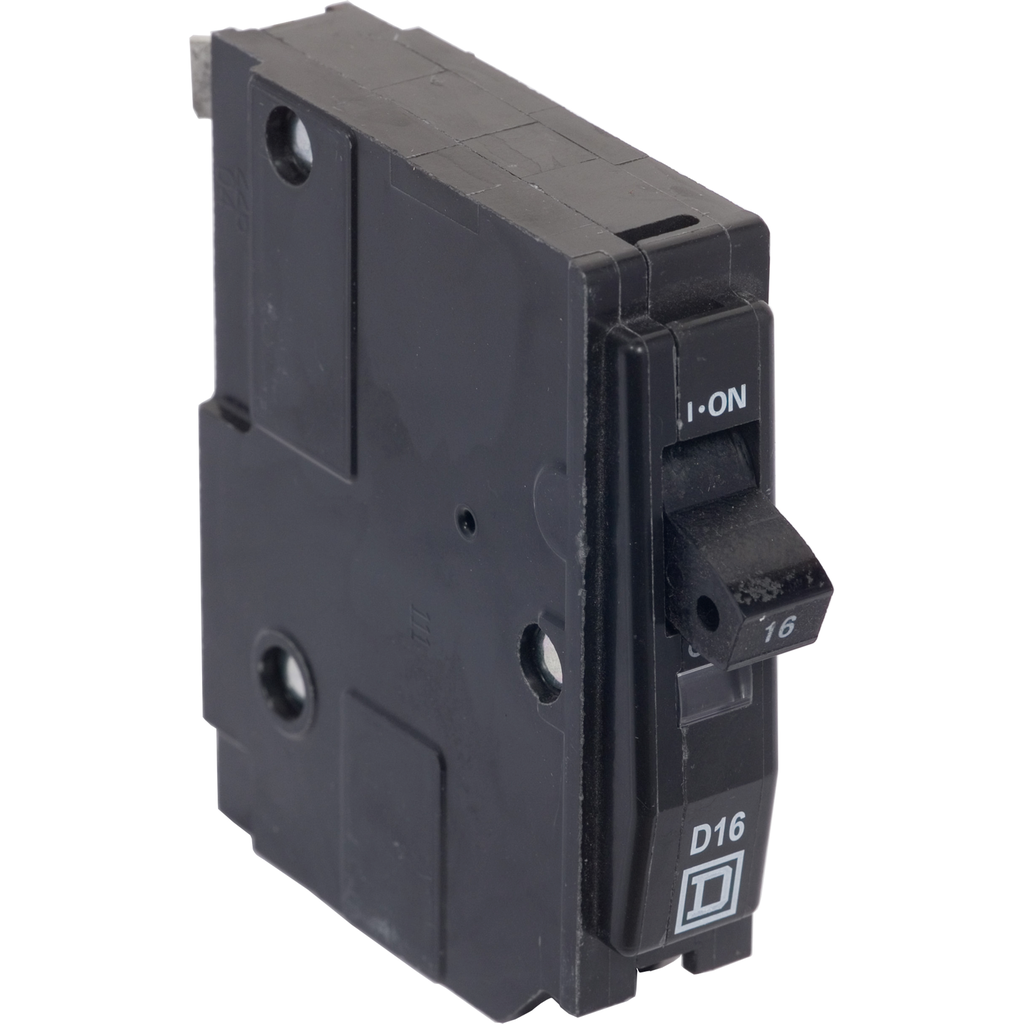

Mini circuit breaker, QO, 16A, 1 pole, 240/415VAC, 3kA, plug in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 16A at 240/415VAC. This unit provides 3kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 40 °C |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Tightening Torque | 5-5 N.m 10-25 mm² (AWG 8...AWG 2) |
| Net Weight | 0.145 kg |
| Breaking Capacity | Icu 3 kA 240/415 V AC |
| Country of Origin | Mexico |
| Weight | 0.145 kg |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Mounting Mode | plug-in |
| Poles Description | 1P |
| Line Rated Current | 16 A |
| [Ue] Rated Operational Voltage | 240/415 V AC |
