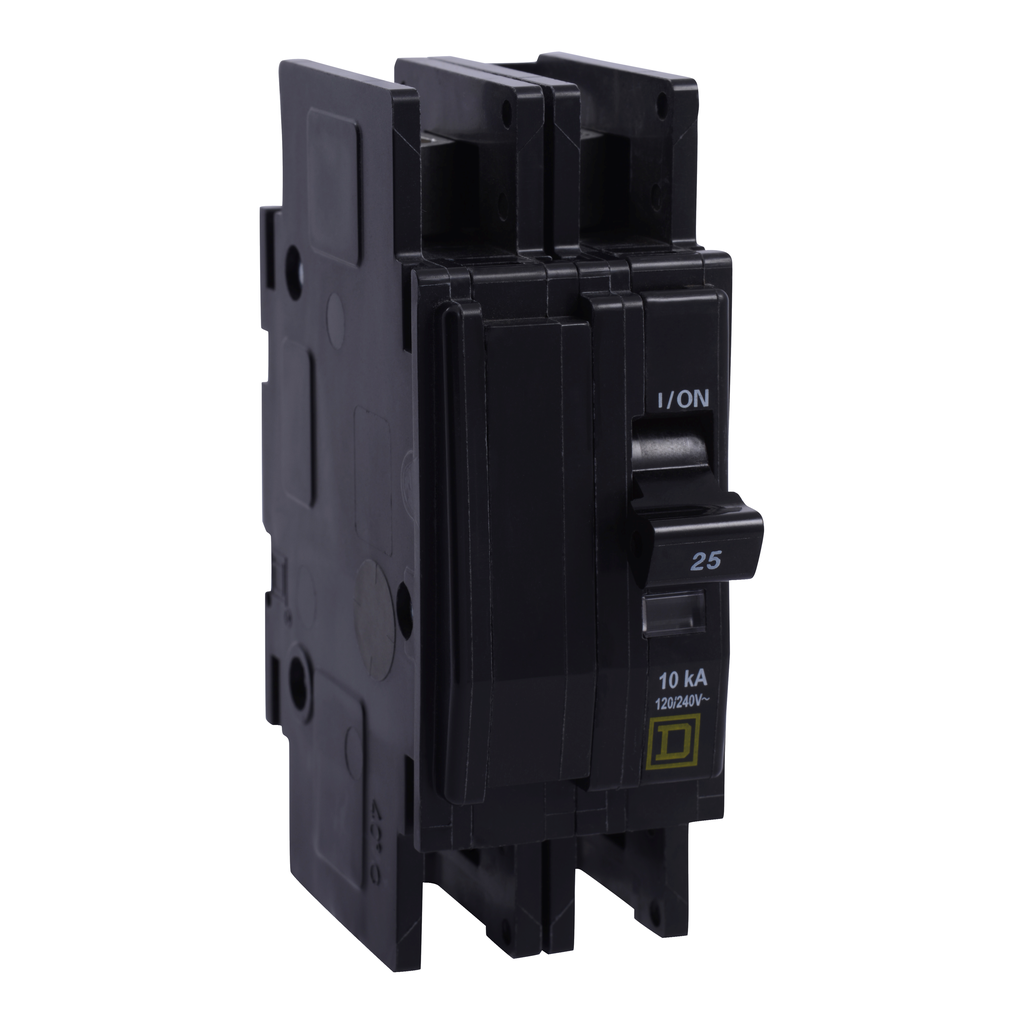

Mini circuit breaker, QOU, 25A, 2 pole, 120/240 VAC, 10kA, field reversible lugs, mounting foot
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 25A, 120/240VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This unit includes field reversible lugs and a mounting foot. QOU circuit breakers are UL Listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Height | 4.05 in |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Electrical Connection |
|
| Mounting Mode | unit mount |
| Line Rated Current | 25 A |
| Awg Gauge | AWG 14...AWG 2 aluminium/copper |
| Width | 1.5 in |
| Depth | 2.95 in |
| [Ue] Rated Operational Voltage |
|
| Country of Origin | Mexico |
| Width | 1.5 in |
| Height | 4.05 in |
| Range Of Product | QOU |
| Circuit Breaker Type | standard |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
