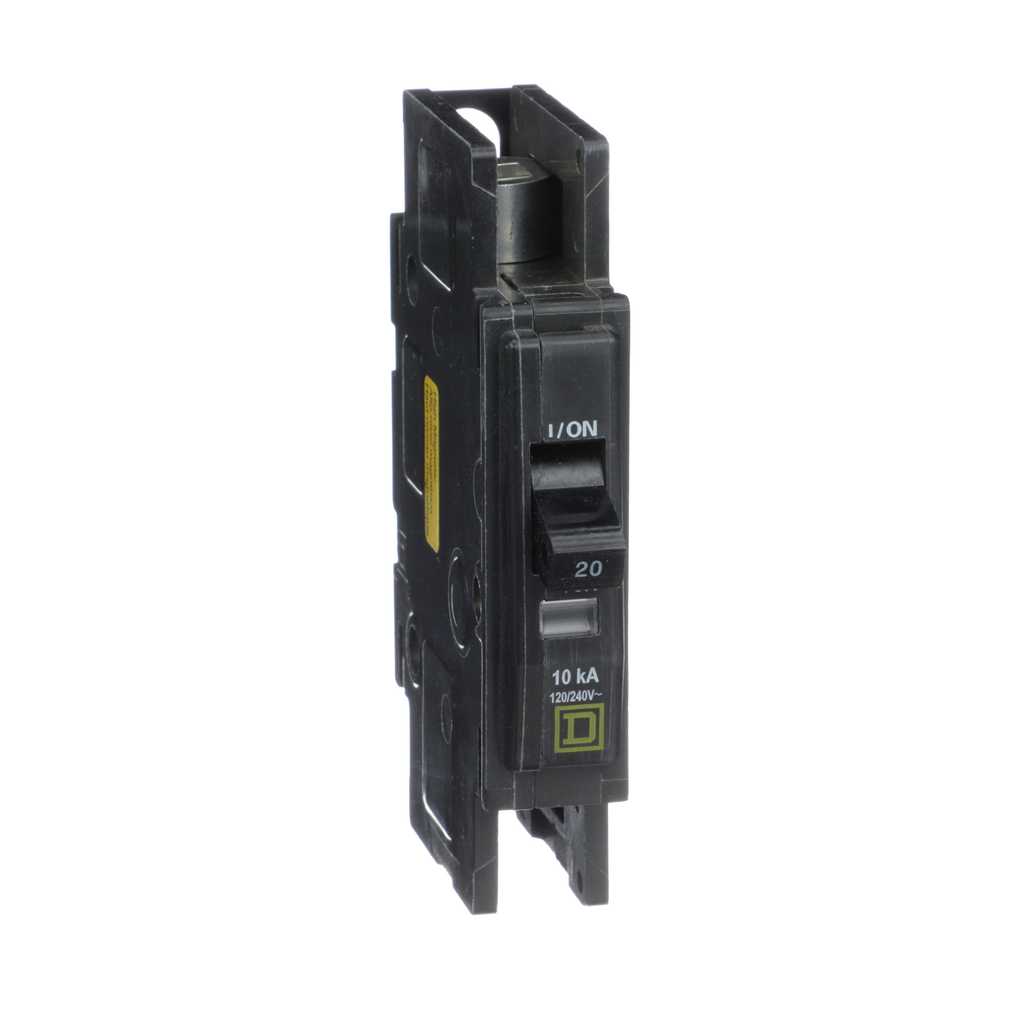

QOUR120HMB
Mini circuit breaker, QOU, 20A, 1 pole, 120/240 VAC, 10kA, field reversible lugs, high magnetic, bulk pack
QO™ and QOU Miniature Circuit Breakers, QOUR120HMB, is ideal for OEM applications. Equipped with Rotated fixing lug QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit. Distributes in a Bulk packing.QOU breakers Provided with High magnetic trip for applications with high inrush current can occur.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Height | 4.05 in |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Electrical Connection |
|
| Mounting Mode | unit mount |
| Line Rated Current | 20 A |
| Awg Gauge | AWG 14...AWG 2 aluminium/copper |
| Width | 0.75 in |
| Depth | 2.95 in |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Country of Origin | Mexico |
| Width | 0.75 in |
| Height | 4.05 in |
| Range Of Product | QOU |
| Circuit Breaker Type | high magnetic |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | bulk |
| Circuit Breaker Application | HACR rated |
