QOUQ250B

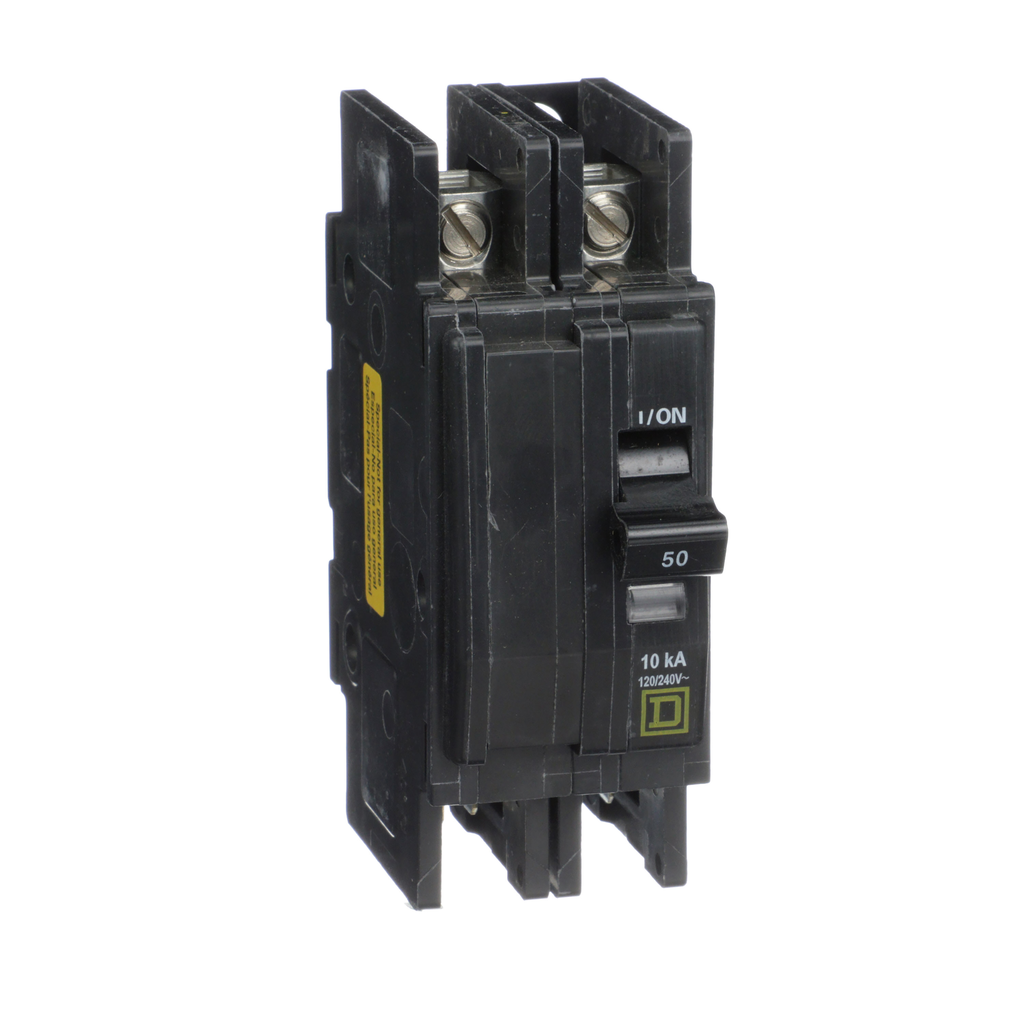

Mini circuit breaker, QOU, 50A, 2 pole, 120/240 VAC, 10kA, four point quick connect terminals, bulk pack
QO™ and QOU Miniature Circuit Breakers, QOUQ250B, is ideal for OEM applications. Equipped with a feature of Quick connetion QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit. Distributes in a Bulk packing.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Height | 4.05 in |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Electrical Connection |
|
| Mounting Mode | unit mount |
| Line Rated Current | 50 A |
| Awg Gauge | AWG 14...AWG 2 aluminium/copper |
| Width | 1.5 in |
| Depth | 2.95 in |
| [Ue] Rated Operational Voltage |
|
| Country of Origin | United States |
| Width | 1.5 in |
| Height | 4.05 in |
| Range Of Product | QOU |
| Circuit Breaker Type | standard |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | bulk |
| Circuit Breaker Application | HACR rated |
