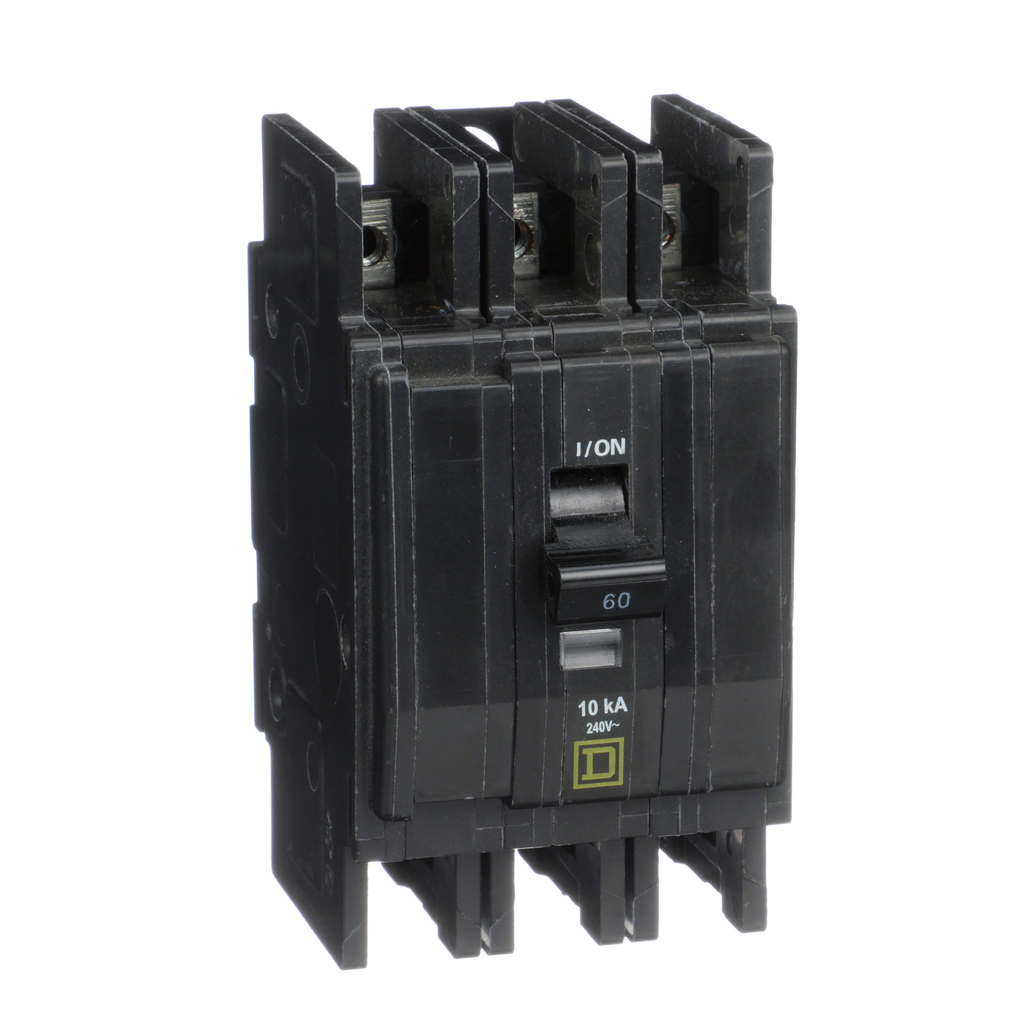

QOU3605283 - Mini circuit breaker, QOU, 60A, 3 pole, 240 VAC, 10kA, ring terminal

QOU3605283

Mini circuit breaker, QOU, 60A, 3 pole, 240 VAC, 10kA, ring terminal

QO™ and QOU Miniature Circuit Breakers, QOU3605283, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit. Comes with factory installed ring tongue terminal.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed IEC CSA
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free product
Height	4.05 in
Tightening Torque	45-45 lbf.in (AWG 14...AWG 2)
Electrical Connection	ring tongue, line side ring tongue, load side
Mounting Mode	unit mount
Line Rated Current	60 A
Awg Gauge	AWG 14...AWG 2 aluminium/copper
Width	2.25 in
Depth	2.95 in
[Ue] Rated Operational Voltage	120/240 V AC 240 V AC 120 V AC 48 V DC
Country of Origin	United States
Width	2.25 in
Height	4.05 in
Range Of Product	QOU
Circuit Breaker Type	standard
Product Or Component Type	miniature circuit-breaker
Circuit Breaker Application	HACR rated
