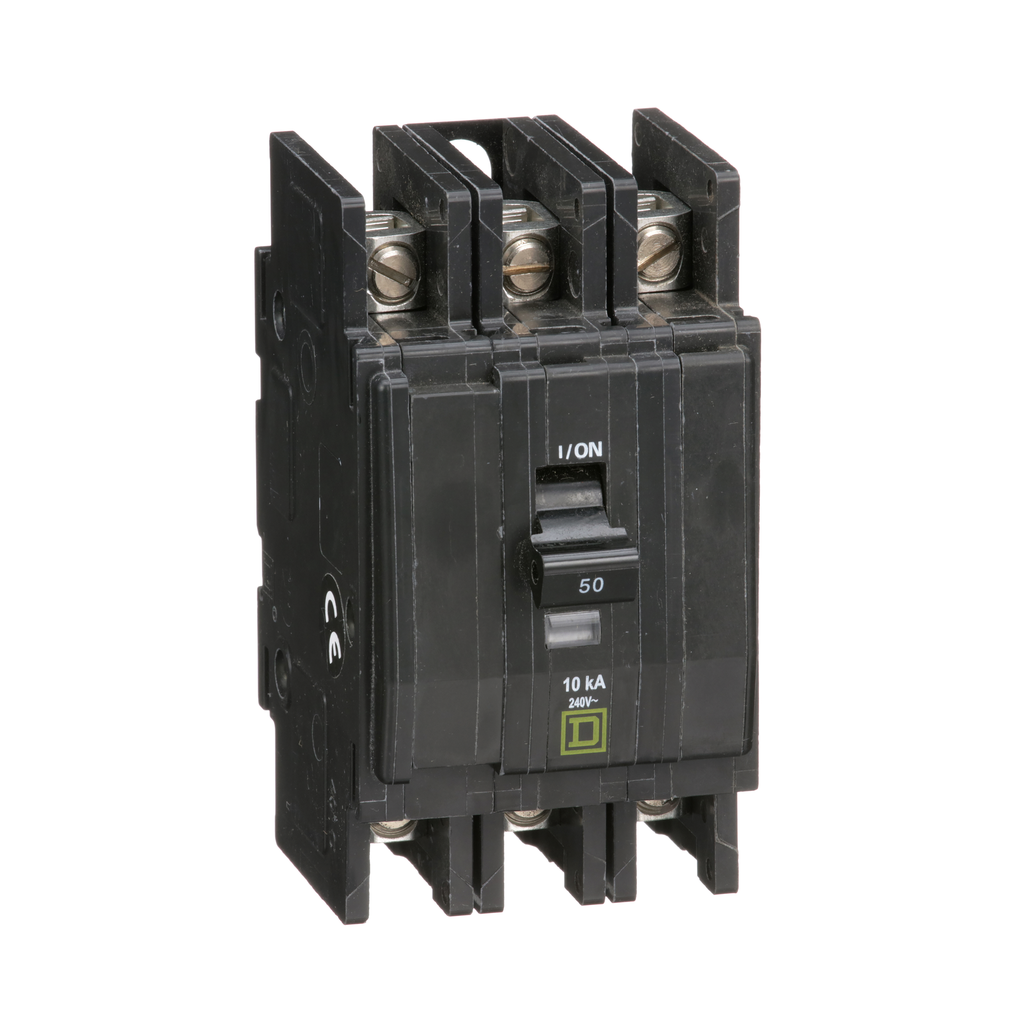

QOU350 - Mini circuit breaker, QOU, 50A, 3 pole, 240VAC, 10kA

QOU350

Mini circuit breaker, QOU, 50A, 3 pole, 240VAC, 10kA

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CSA IEC UL Listed
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free product
Height	4.05 in
Tightening Torque	45-45 lbf.in (AWG 14...AWG 2)
Electrical Connection	slotted box lugs, line side slotted box lugs, load side
Mounting Mode	unit mount
Line Rated Current	50 A
Awg Gauge	AWG 14...AWG 2 aluminium/copper
Width	2.25 in
Depth	2.95 in
[Ue] Rated Operational Voltage	120/240 V AC 240 V AC 120 V AC 48 V DC
Country of Origin	Mexico
Width	2.25 in
Height	4.05 in
Range Of Product	QOU
Circuit Breaker Type	standard
Product Or Component Type	miniature circuit-breaker
Circuit Breaker Application	HACR rated

Mini circuit breaker, QOU, 50A, 3 pole, 240VAC, 10kA
