QOU2DTILA

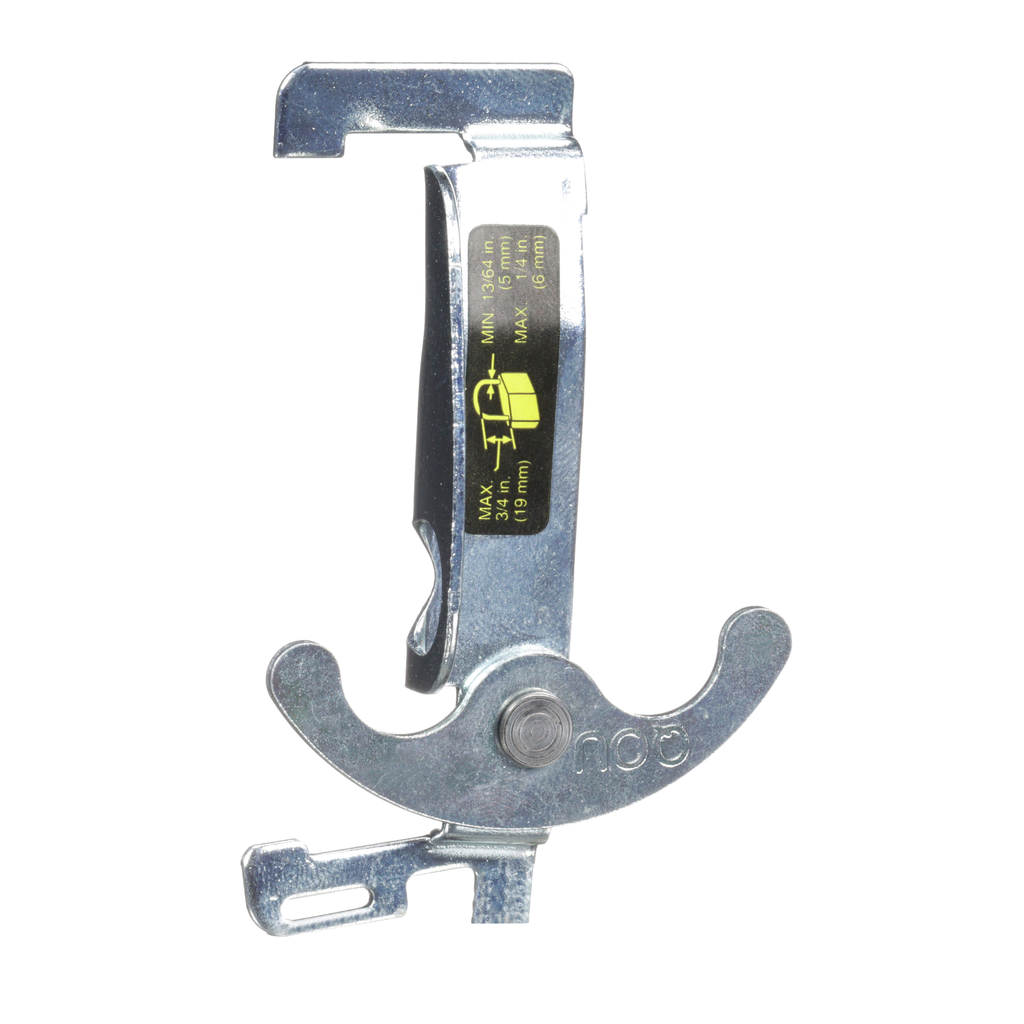

QOU Circuit Breaker Mechanical Interlock
QO™ and Square D™, QOU2DTILA, is an accessory part for QOO Low Ampere Circuit breakers. Performed as mechanical interlock attachment can be used to interlock two circuit breakers mounted side-by-side so that only one circuit breaker can be ON at a time. A 1P or 2P circuit breaker can be mounted on the left and interlocked with a 2P or 3P circuit breaker on the right. .
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Warranty | 18 months |
| Country of Origin | United States |
| Range Of Product | QOU |
| Product Or Component Type | handle interlocking |
| Mechanical Interlocking | with mechanical interlocking between pairs |
| Mounting Location | left side of circuit-breaker |
| Product Destination | QOU circuit breaker |
Documents
- QOU2DTILA Handle Interlock Installation Instructions - 40273-136-03 (pdf)
- QOU2DTILA Handle Interlock - 48840-190-01 (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Spec Sheet
- Square D QOU Miniature Circuit Breakers and Switches Catalog - 0720CT9401R105 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
