QOU2605258

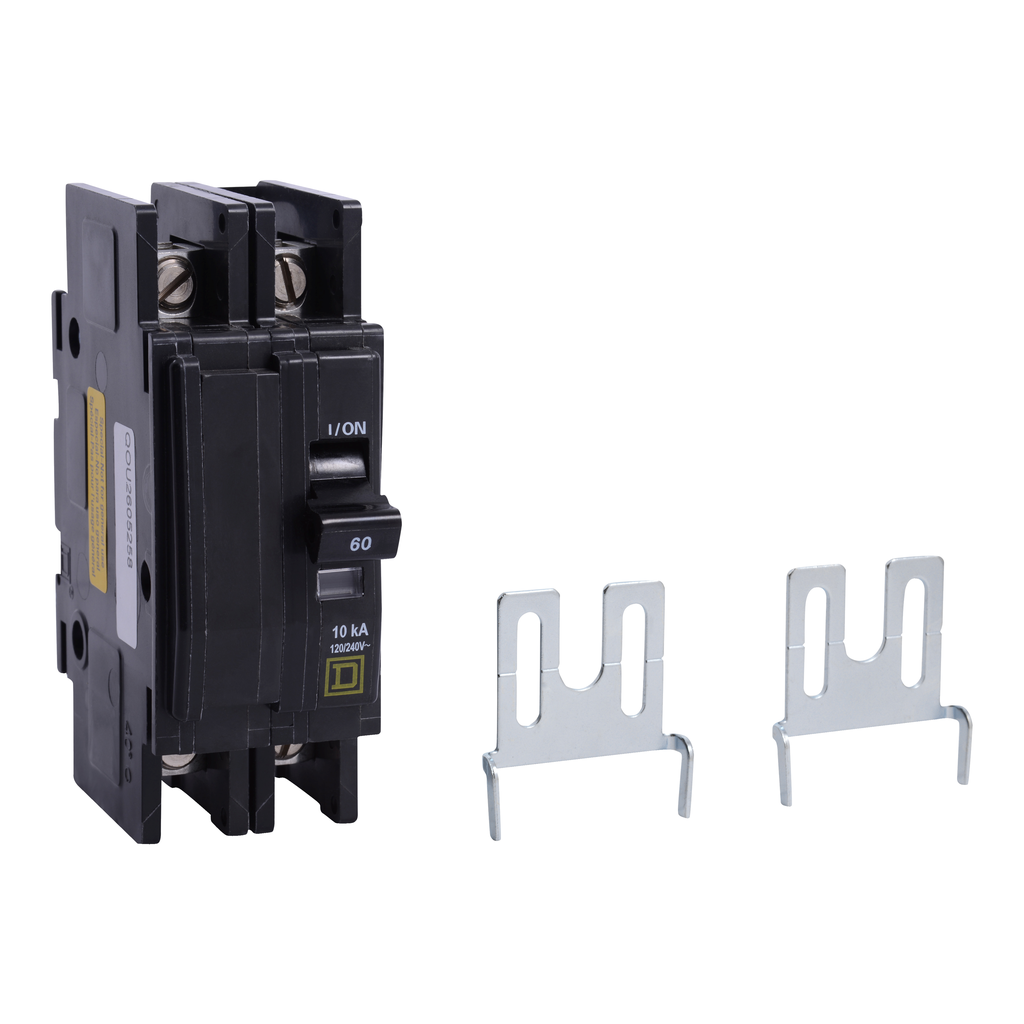

Mini circuit breaker, QOU, 60A, 2 pole, 120/240 VAC, 10kA
QO™ and QOU Miniature Circuit Breakers, QOU2605258, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Height | 4.05 in |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Electrical Connection |
|
| Mounting Mode | unit mount |
| Line Rated Current | 60 A |
| Awg Gauge | AWG 14...AWG 2 aluminium/copper |
| Width | 1.5 in |
| Depth | 2.95 in |
| [Ue] Rated Operational Voltage |
|
| Country of Origin | Mexico |
| Width | 1.5 in |
| Height | 4.05 in |
| Range Of Product | QOU |
| Circuit Breaker Type | standard |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
