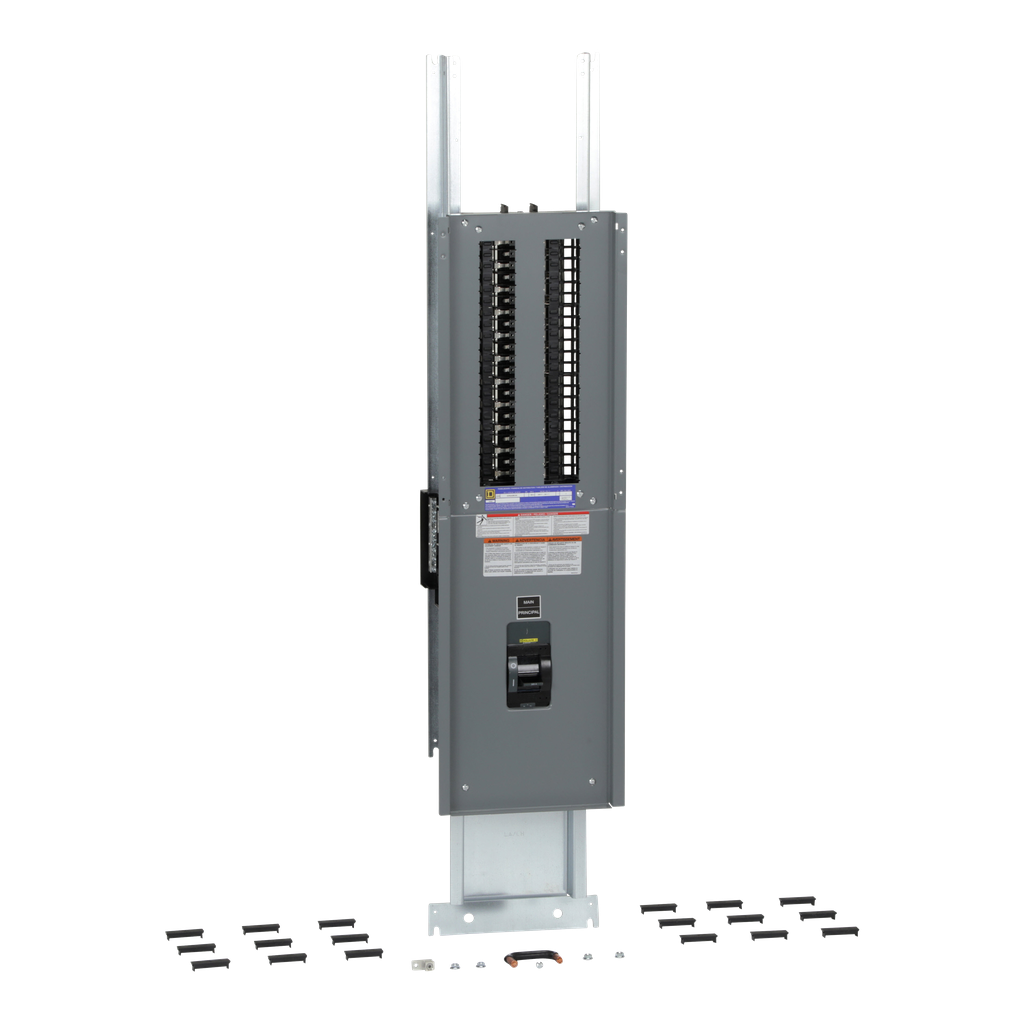

QONQ42MS300
Load center interior, QO, main breaker, 300A, Al bus, 42 pole spaces, 1 phase, 3 wire. NQ enclosure
QO load centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO load centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. This load center interior has a high amperage fixed main with factory installed main lugs that are rated for 400 A. This interior has 42 spaces and has a 65 kA breaking capacity. The main lugs will accept 1/0 AWG to 750 kcmil copper or aluminum wire. This interior is UL component recognized and cUL certified. It is encased in a NQ enclosure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Phase | 1 phase 3 wires |
| Tightening Torque |
|
| [Iu] Rated Interrupted Current |
|
| Number Of Spaces | 42 |
| Enclosure Nominal Height | 62 in |
| Net Weight | 19.051 kg |
| Enclosure Nominal Depth |
|
| Line Rated Current | 300 A |
| Enclosure Nominal Width | 20 in |
| [Ue] Rated Operational Voltage | 240 V AC |
| Country of Origin | Mexico |
| Width | 20 in |
| Height | 62 in |
| Weight | 19.051 kg |
| Circuit Breaker Type |
|
| Product Or Component Type | Load Center Interior |
| Material | aluminium |
| Load Center Type | main breaker |
Documents
- NF/NQ Panelboard OSHPD Label Placement Drawing Installation Instructions - 80043-793-01 (pdf)
- QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- NQ, NF, I-Line and QMB Panelboard Products - NQ+NF+and+I+line+and+QMB+Panels+final+-English+ (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
- Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf)
