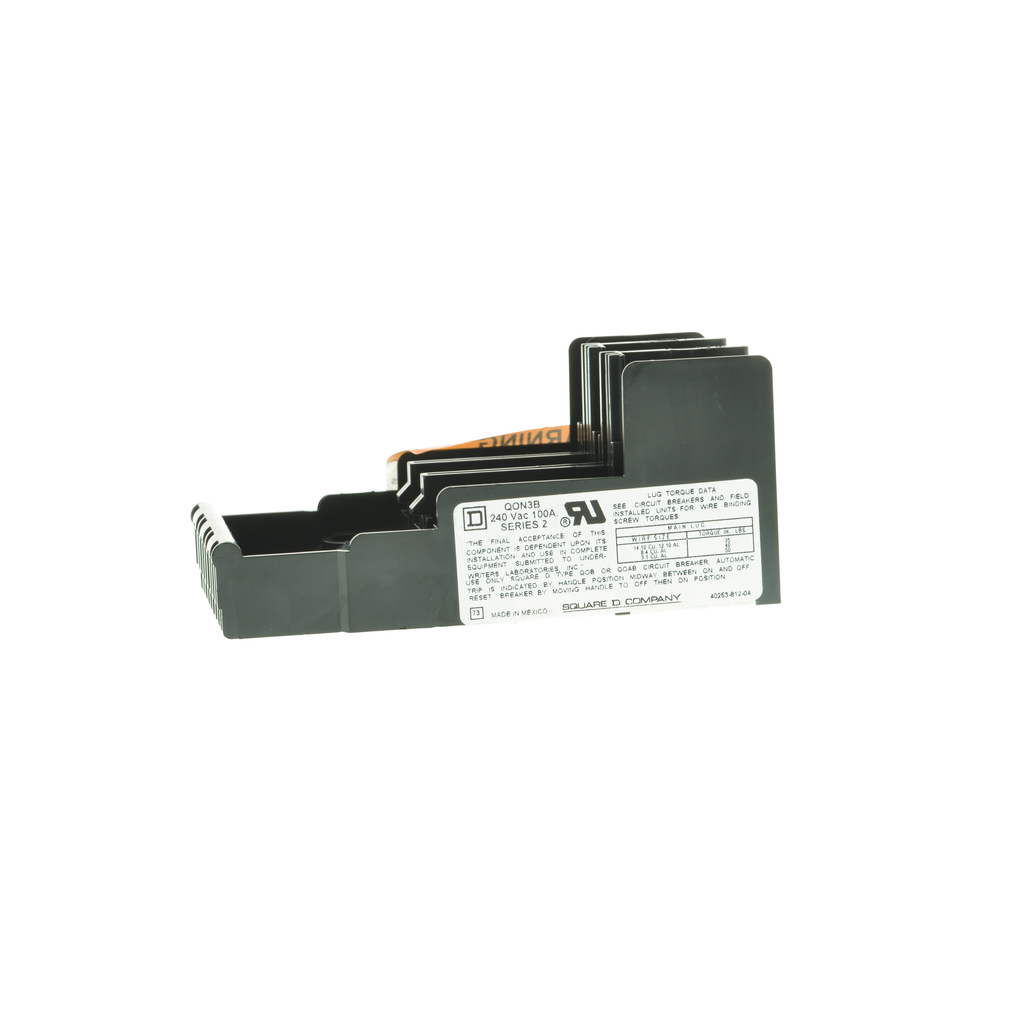

QON3B
Load center interior, QO, mounting base, 3 phase, 3 spaces, 100A main lugs, OEM
QON OEM mounting bases are for the mounting of plug on QO, QO GFI, QO AFI and QO EPD circuit breakers. These OEM mounting bases are available in single and three phase versions. This QON OEM bolt on mounting base is for a main breaker of 100 A at 240 VAC three phase. This unit provides 10 kA breaking capacity based on the circuit breakers installed. This mounting base has 3 spaces for 1 pole breakers. A neutral assembly is not supplied with this OEM mounting base. The QON mounting base is UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 4.20 in |
| Height | 1.35 in |
| Phase | 3 phase 3 wires |
| Range Of Product | QO |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Product Certifications | UR |
| Height | 1.35 in |
| Width | 4.20 in |
| Warranty | 18 months |
