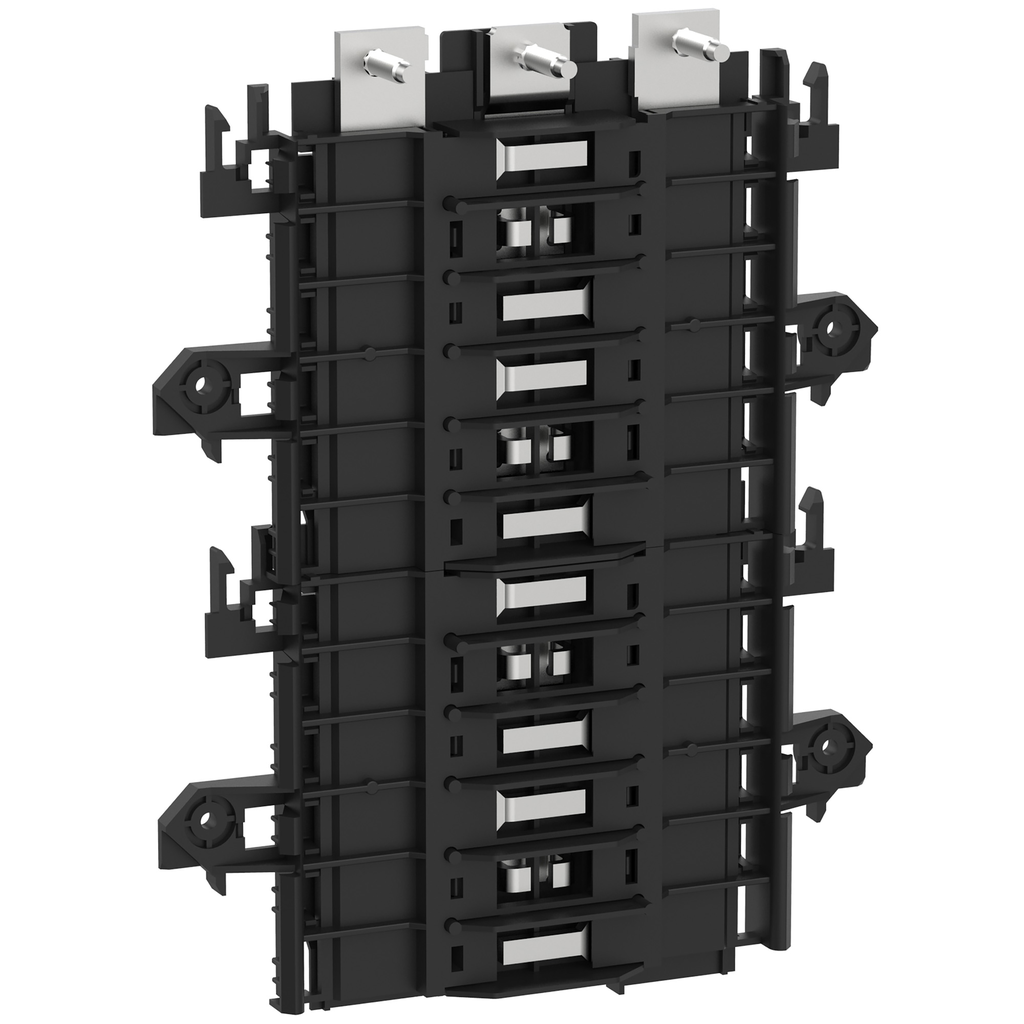

Load center interior, QO, mounting base, 3 phase, 24 spaces, 200A main studs, OEM
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 240 VAC 3 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 24 spaces. This mounting base will accept only QO plug on circuit breakers. The studs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. QO OEM bases is UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Ambient Air Temperature For Operation |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 95 mm |
| Phase | 3 phase |
| Electrical Connection | studs, line |
| Number Of Circuits | 24 |
| Number Of Spaces | 24 |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Line Rated Current | 200 A |
| Awg Gauge | AWG 4...300 kcmil copper or aluminium |
| Width | 324 mm |
| Depth | 343 mm |
| Country of Origin | United States |
| Width | 324 mm |
| Height | 95 mm |
| Range Of Product | QO |
| Product Or Component Type | mounting base |
