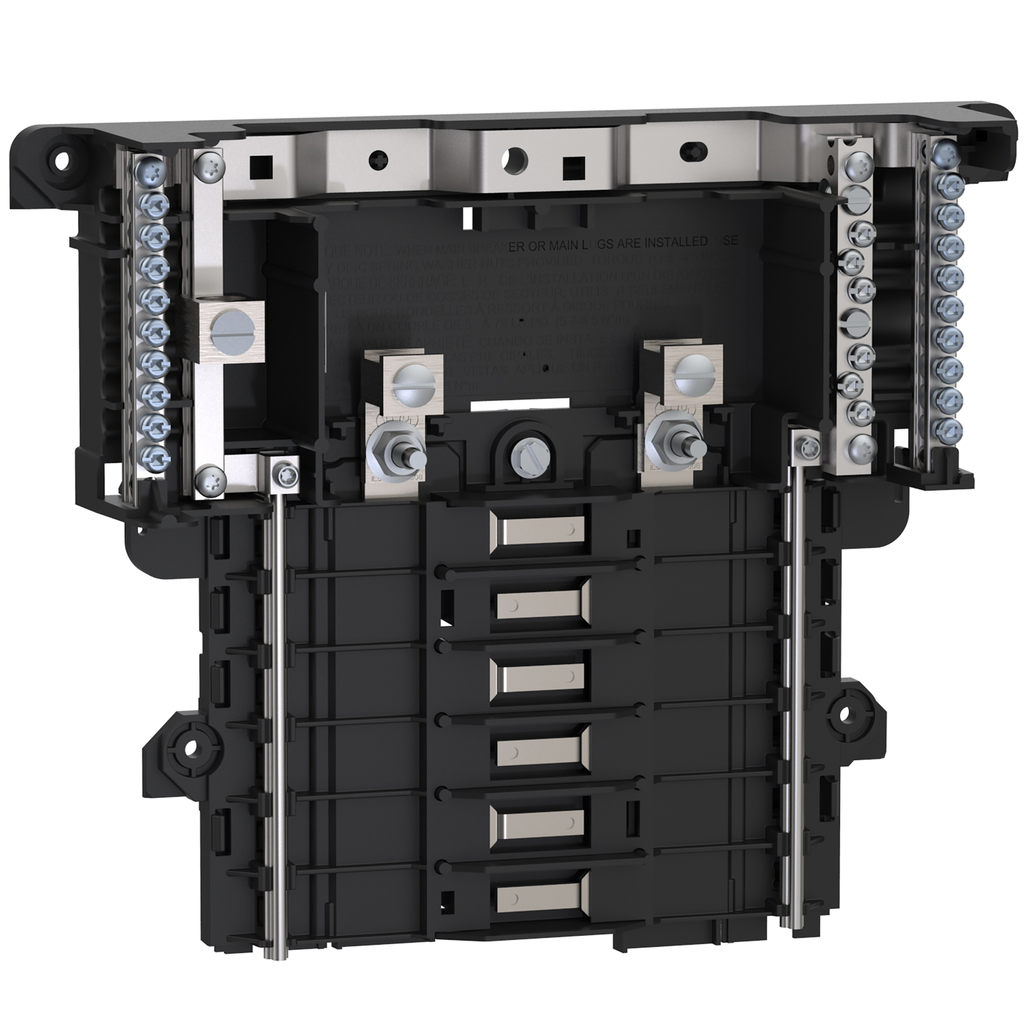

Load center interior, QO, mounting base, 1 phase, 12 spaces, 125A main lugs, PoN, OEM, neutral busbar
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 125A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 12 spaces. This mounting base will accept only QO plug on circuit breakers. This system is plug on neutral and has a neutral bus bar. The QON mounting base is UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Height | 218 mm |
| Net Weight | 0.680 kg |
| Awg Gauge | AWG 6...AWG 2/0 aluminium/copper |
| Width | 270 mm |
| Depth | 58 mm |
| Country of Origin | United States |
| Width | 270 mm |
| Height | 218 mm |
| Weight | 0.680 kg |
| Phase | 1 phase 3 wires |
| Range Of Product | QO |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Product Or Component Type | mounting base |
| Number Of Spaces | 12 |
| Short-Circuit Current | 10 kA |
| Line Rated Current | 125 A |
| Load Center Type | PoN Convertible Mains (lugs) |
| Ambient Air Temperature For Operation |
|
