QOMB3
Load center accessory, QO, mounting base, 70A, 1 phase, 2 wire, 240VAC max, 10kA, 3 spaces, 3 circuits

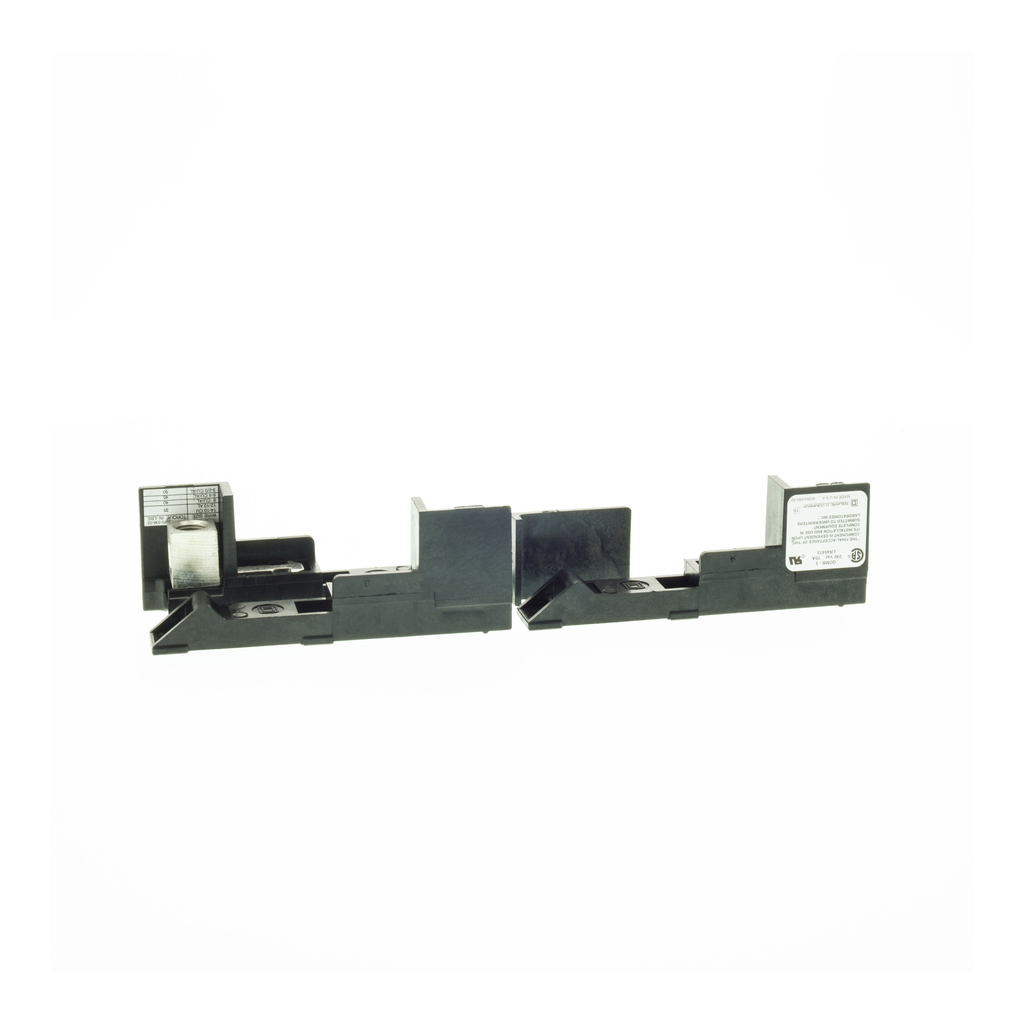

QON OEM mounting bases are for the mounting of plug on QO, QO GFI and QO EPD circuit breakers. These OEM mounting bases are available in single and three phase versions. This QOMB3 OEM plug on mounting base is for single phase breakers up to 70 A at 240 VAC max. This base provides 10 kA breaking capacity based on the circuit breakers installed. This mounting base has 3 spaces for breakers. A neutral assembly is not supplied with this OEM mounting base. The mounting base will accept 14 AWG to 4 AWG copper or 12 AWG to 2 AWG aluminum wire.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
| Country of Origin | United States |
| Breaking Capacity | 10 kA |
| Awg Gauge |
|
Documents
- Installing Instructions CAT. NOS, QOMB1, QOMB2 and QOMB3 - 40269-956-02 (pdf)
- QO Circuit Breakers and Loadcentres (Illustrated) Brochure - QO+brochure+EN (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Square D QO and QOB Miniature Circuit Breakers Catalog - 0730CT9801 (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
