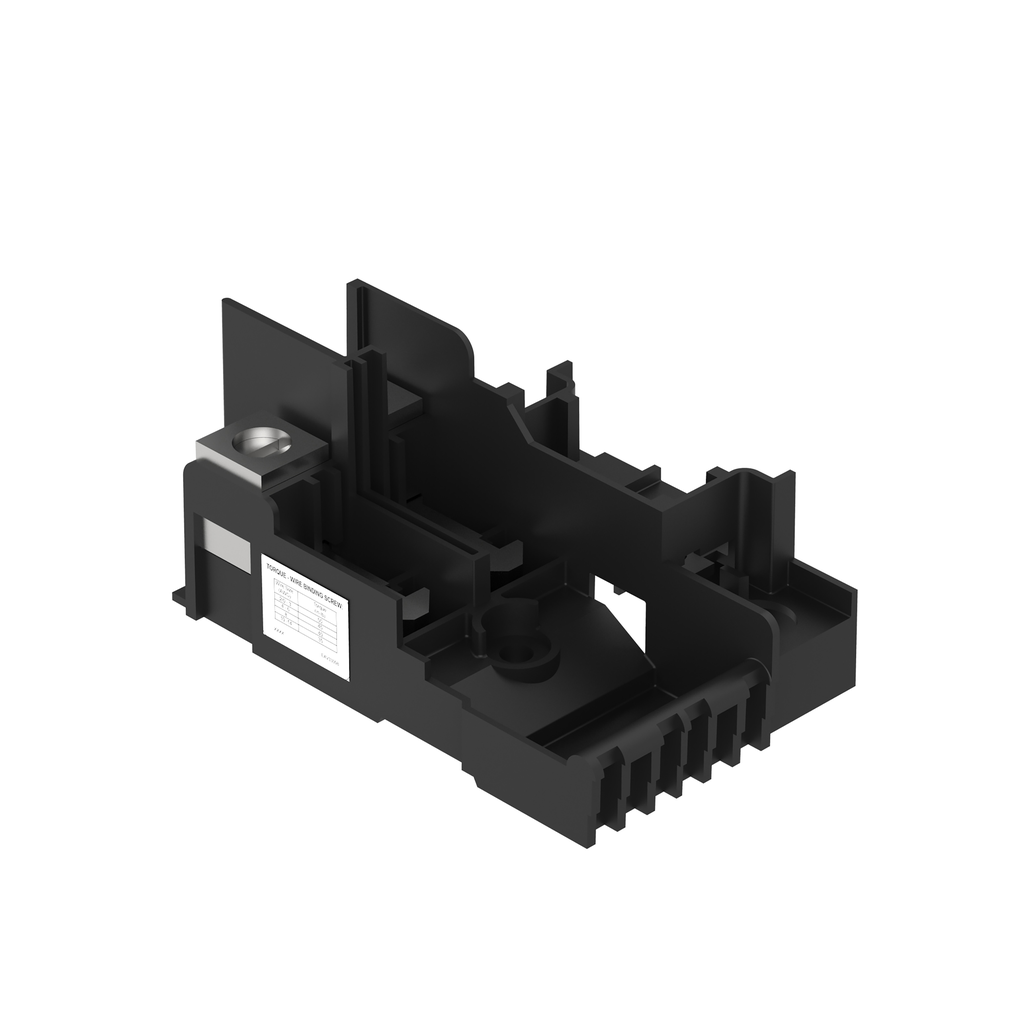

Load center interior, QO, mounting base, 2 pole, 125A main lugs, NEMA1
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This 2 pole mounting base is for use in a 125A single phase main lug load center. QO mounting base has a 10 kA breaking capacity. For use in NEMA 1 indoor load centers. Mounting base will accept a wire range of 14 AWG to 4 AWG copper or 12 AWG to 2 AWG aluminum wire. Base is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 107 mm |
| Phase | 1 phase 2 wires |
| Tightening Torque | main lugs 50 lb.in, AWG 3...AWG 2, aluminium/copper |
| Number Of Circuits | 2 |
| Number Of Spaces | 2 |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Line Rated Current | 125 A |
| Awg Gauge |
|
| Width | 64 mm |
| Depth | 34 mm |
| Load Center Type | main lugs |
| Country of Origin | Mexico |
| Width | 64 mm |
| Height | 107 mm |
| Range Of Product | QO |
| Product Or Component Type | mounting base |
| Product Certifications | UL Listed |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
