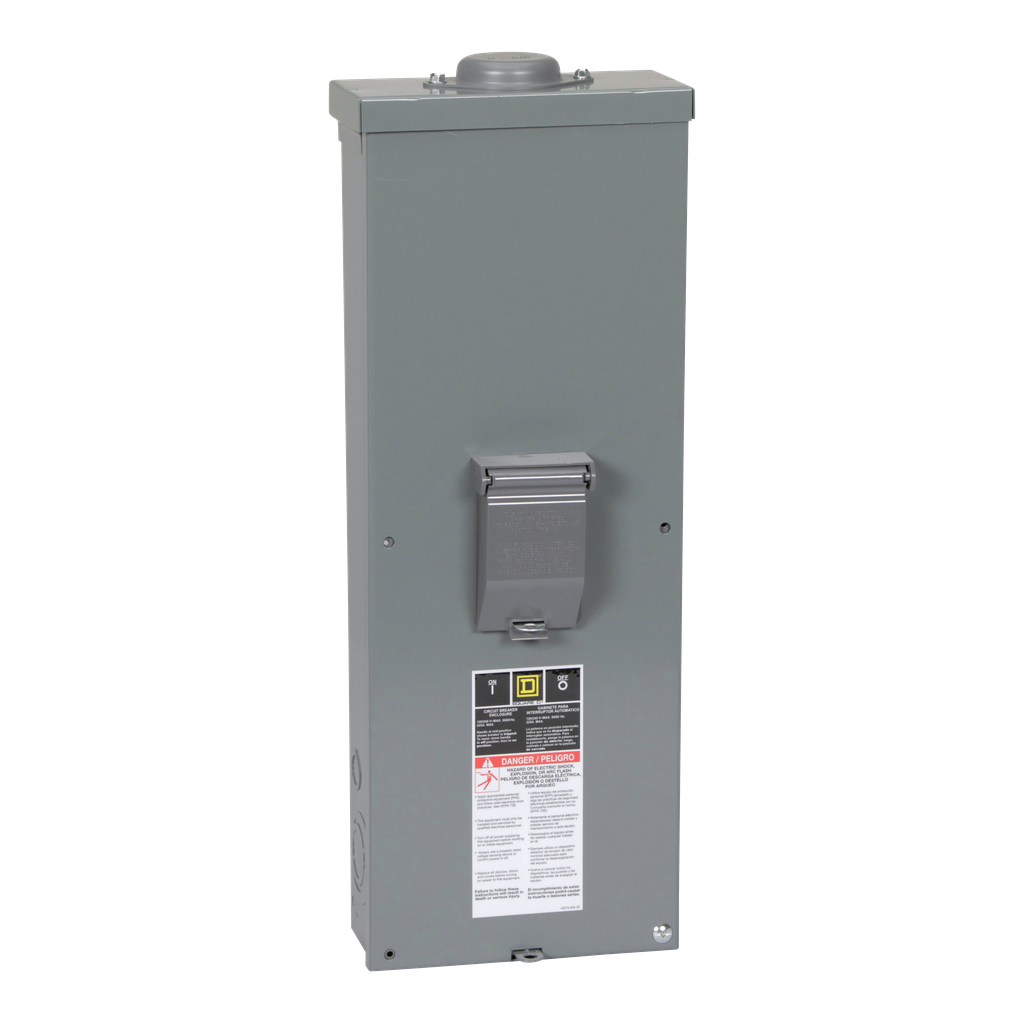

QOM2E2200NRB
Enclosed circuit breaker, QO, 200A, 2 pole, 120/240VAC, 22kA, bolt on mount, NEMA 3R
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 200A. It is rated at 120/240VAC and 22kA. This breaker has bolt on mount. The enclosure is rated at NEMA 3R. This product is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Height | 624 mm |
| Phase | 1 phase |
| Net Weight | 7.371 kg |
| Type Of Installation | outdoor |
| Ambient Air Temperature For Operation | 40 °C |
| Poles Description | 2P |
| Line Rated Current | 200 A |
| Width | 220 mm |
| Depth | 104 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Country of Origin | Mexico |
| Width | 220 mm |
| Height | 624 mm |
| Weight | 7.371 kg |
| Range Of Product | QO |
| Product Or Component Type | enclosed circuit breaker |
| Load Center Type | main breaker |
| Device Short Name | QOM2 |
| Warranty | 18 months |
