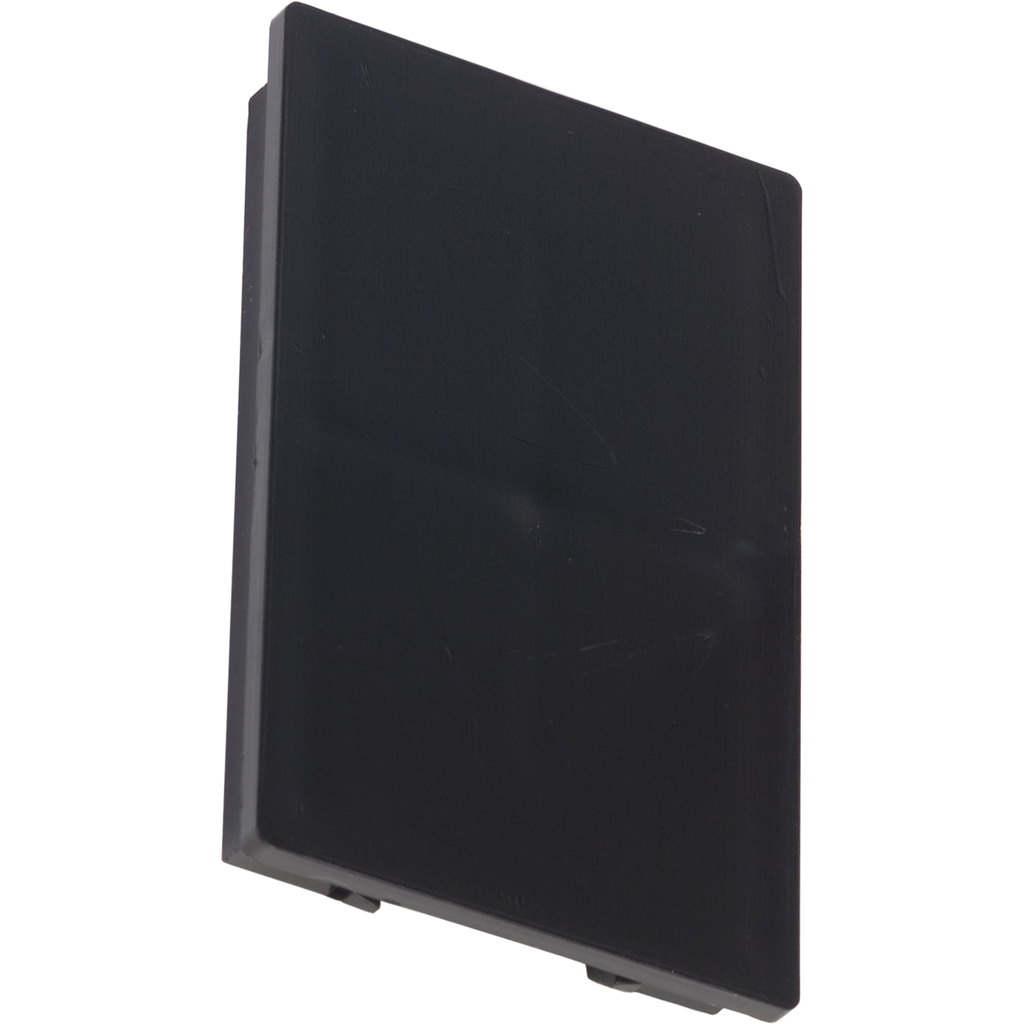

Load center accessory, QO/Homeline, cover filler plate, 1 phase, 100A to 125A, convertible load centers
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This accessory is a cover filler plate. It is used with 1 phase 100A to 125A convertible load centers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
| Height |
|
| Width |
|
| Depth |
|
| Country of Origin | United States |
| Width | 1.90 in |
| Height | 3.06 in |
| Range Of Product | QO |
| Product Or Component Type | filler |
Documents
- QOL125 Main Lug Kit Installation Instructions - 40269-645-03 (pdf)
- QOM1FP Filler Plate Installation Instructions - 40271-907-02 (pdf)
- QO Circuit Breakers and Loadcentres (Illustrated) Brochure - QO+brochure+EN (pdf)
- Square D QO Load Centers and Circuit Breakers Brochure - 998-1170221_US_B (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
