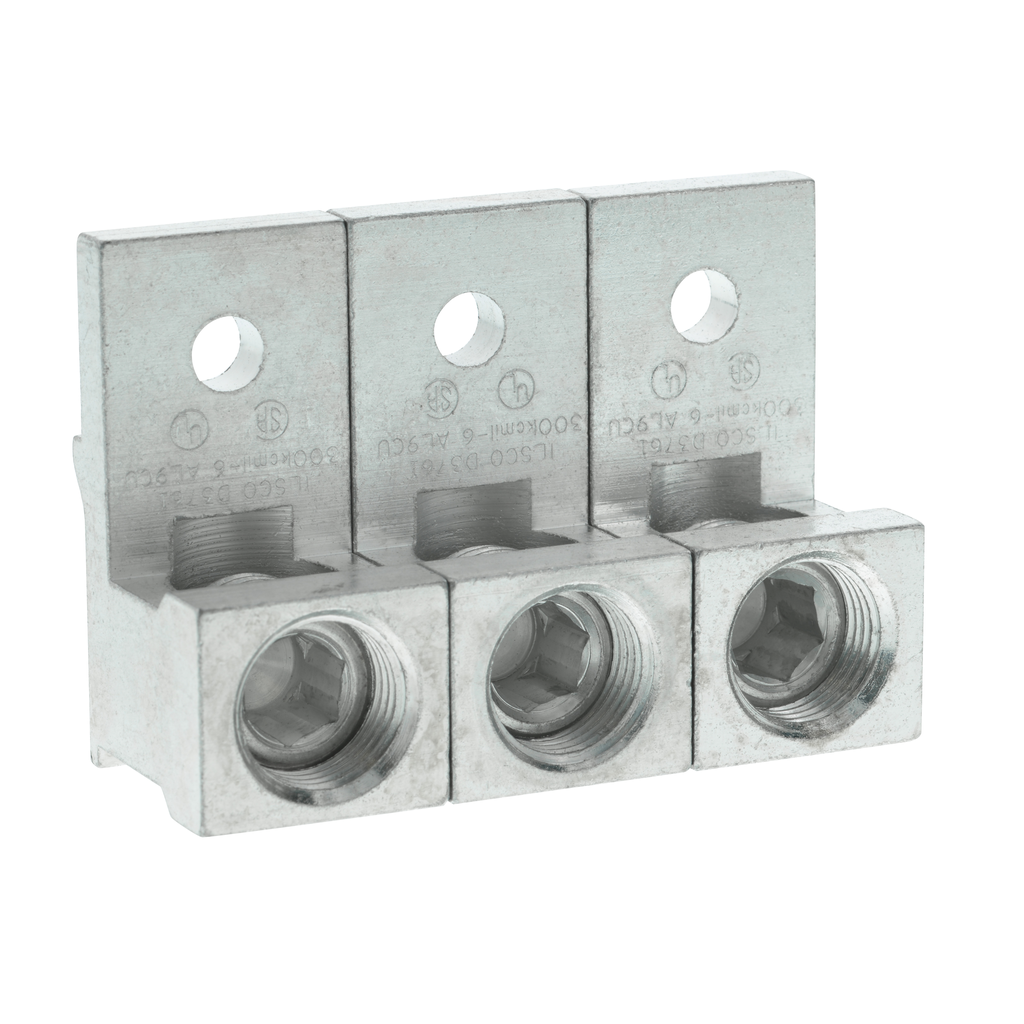

Load center accessory, QO/Homeline, main lug kit, 150A to 225A, 3 phase, AWG 6-300 kcmil, field installable
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This accessory is a main lug kit. It is used with 3 phase 150A to 225A systems. The size is AWG 6 to 300kcmil and it is field installable.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Tightening Torque | 8.5 N.m |
|---|---|
| Phase | 3 phase |
| Line Rated Current | 225 A |
| Awg Gauge |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Range Of Product | QO |
| Product Or Component Type | lug kit |
| Warranty | 18 months |
