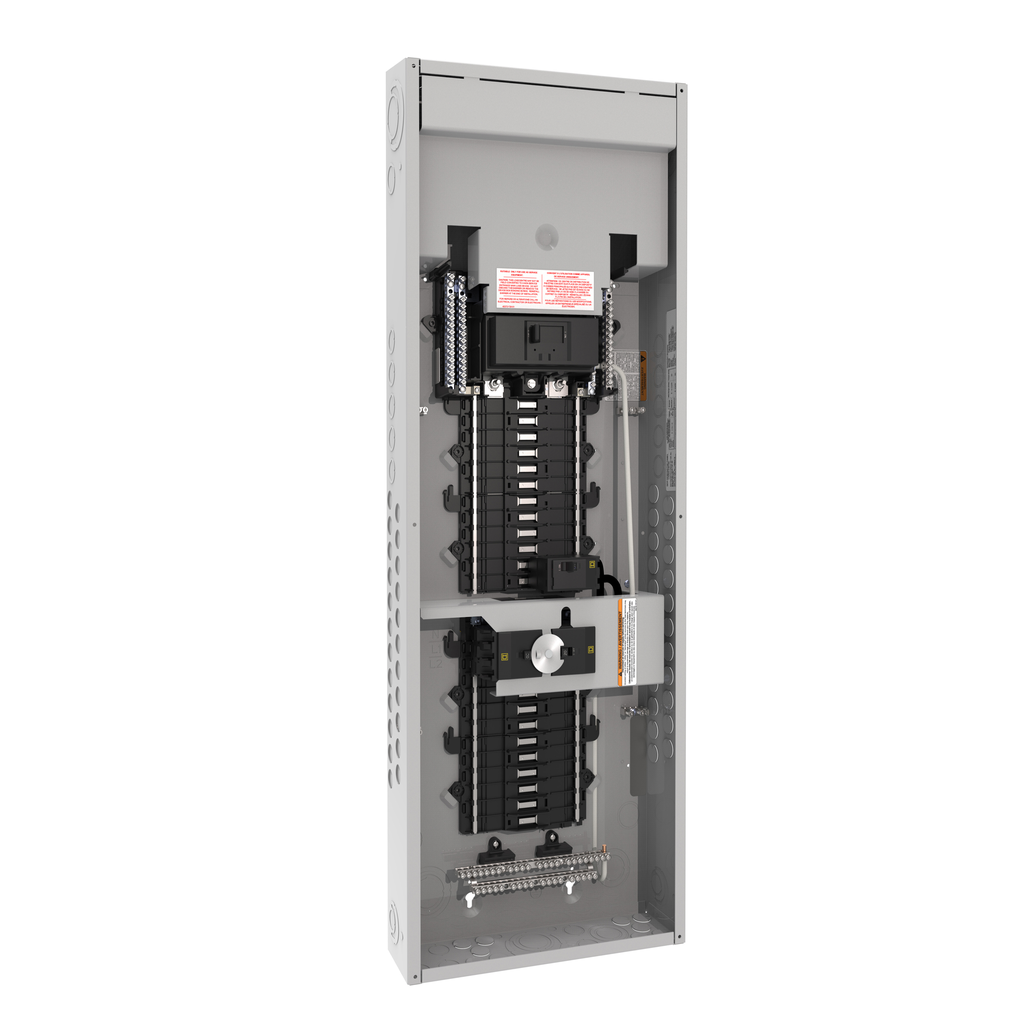

Generator panel, QO, 1 phase, 40 spaces, 80 circuits, 200A main breaker, PoN, NEMA1, cover with door, CSA
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO All-in -one Generator Panel contains a main breaker and is rated at 200 A and 1 phase. This system provides 40 spaces in a NEMA 1 enclosure and it is Plug-on neutral load center. CQO load centers are CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CSA |
|---|---|
| Ambient Air Temperature For Operation |
|
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Height | 1000 mm |
| Phase | 1 phase |
| Tightening Torque | Cover 20 lb.in |
| Number Of Circuits | 80 |
| Number Of Spaces | 40 |
| Short-Circuit Current | 10 kA |
| Line Rated Current |
|
| Width | 362 mm |
| Depth | 95 mm |
| Load Center Type | PoN Convertible Mains (breaker) |
| Device Composition | grounding bar (ordered separately) |
| Country of Origin | United States |
| Width | 362 mm |
| Height | 1000 mm |
| Range Of Product | QO |
| Product Or Component Type | panel |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
