QOE250GFINM

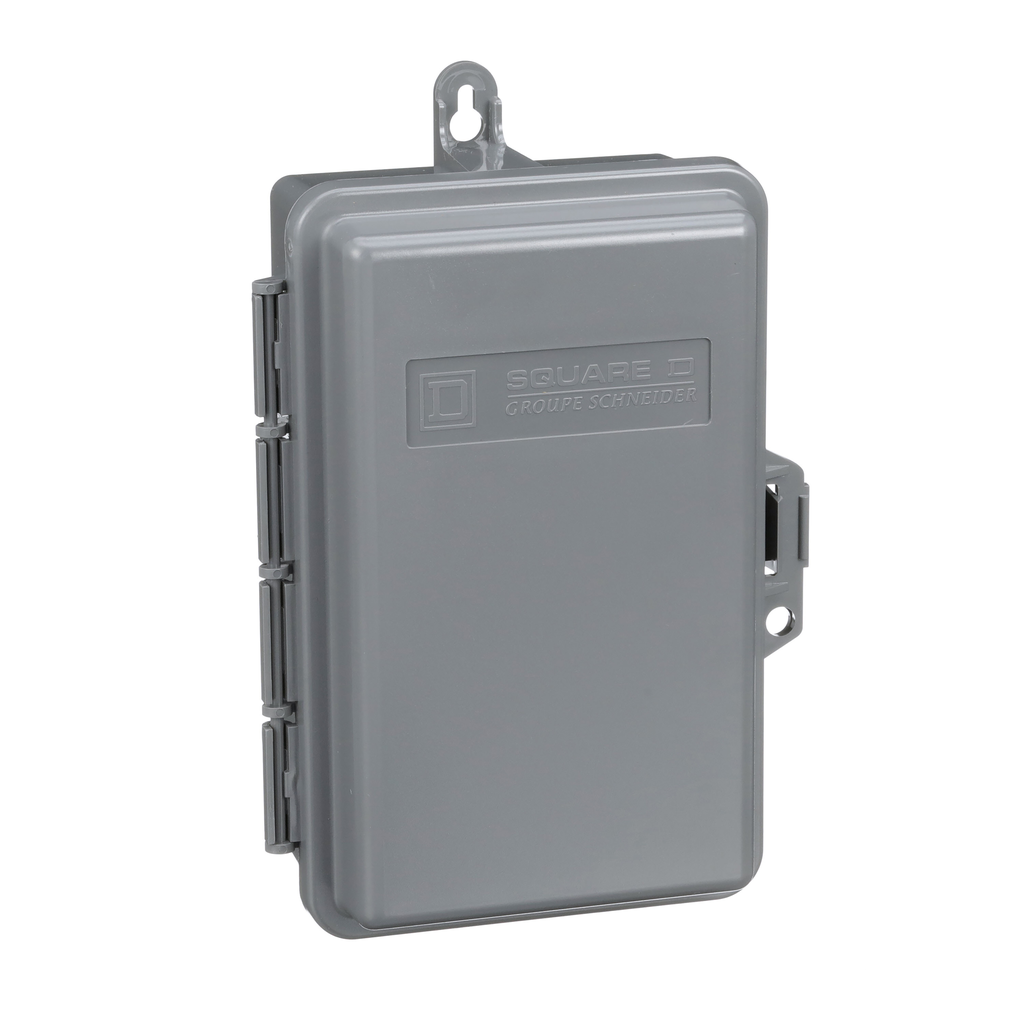

Enclosed circuit breaker, QO, 2 pole, 1 phase, 50A, NEMA3R, ground fault protection, nonmetalic, spa
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 50A. It is rated at NEMA 3R and has ground fault protection. The enclosure provided is nonmetallic. It is used in spa systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 166 mm |
| Height | 233 mm |
| Range Of Product | QO |
| Product Or Component Type | enclosed circuit breaker |
| Load Center Type | main breaker |
| Product Certifications | UL Listed |
| Height | 233 mm |
| Enclosure Type | enclosure |
| Number Of Spaces | 2 |
| Phase | 1 phase |
| Line Rated Current | 50 A |
| Enclosure Material | non-metallic |
| Width | 166 mm |
| Wiring Configuration | 3-wire |
| Depth | 99 mm |
| Device Composition | grounding bar (factory installed) |
| Box Number | 1NM |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
Documents
- Non-Metallic Enclosure for QO Circuit Breaker / Load Center / Molded Case Switch - JYT73408 (pdf)
- QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)
- Two-Pole QO/QOB Circuit Breaker and GFCI Installation Instructions - 48840-435-03 (pdf)
- QO Load Centers and Circuit Breakers Brochure - 1100BR1201 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
